Makersan
Back to products
P-04 / Application-specific Controllers

Purpose-built control,
tuned for the job.

Two dedicated platforms — hitch & header height control for agricultural machinery, and remote keyless entry for mobile access — engineered around operator ergonomics and OEM-specific calibration.

Explore the familyContact Us
Makersan application-specific controllers lineup: a teal-blue operator panel with a red-tipped multifunction lever and four rotary knobs on the left, a rugged 4-button RKE keyfob in the centre, and a sealed CAN-bus receiver module on the right, isolated on a clean background.
Scroll
Systems

Two systems, one integration story.

Each system ships as a complete kit — hardware, firmware, calibration tooling and harness reference — so OEMs can drop it onto the machine and integrate it over a single CAN bus.

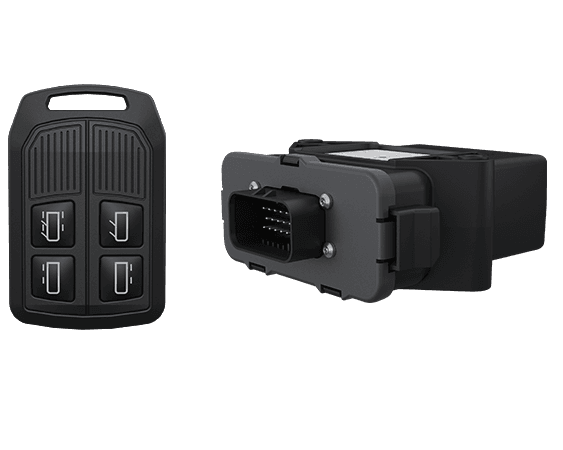

Makersan MO-651 H3X remote keyless entry controller module shown in perspective view for CAN-based mobile access systems.
MO-651 H3X

Remote Keyless Entry

CAN-based RKE receiver for 1-zone standard or extended access control.

Protocol
CAN Bus (SAE J1939)
Supply
12-24 VDC
Protection
IP54
Explore model

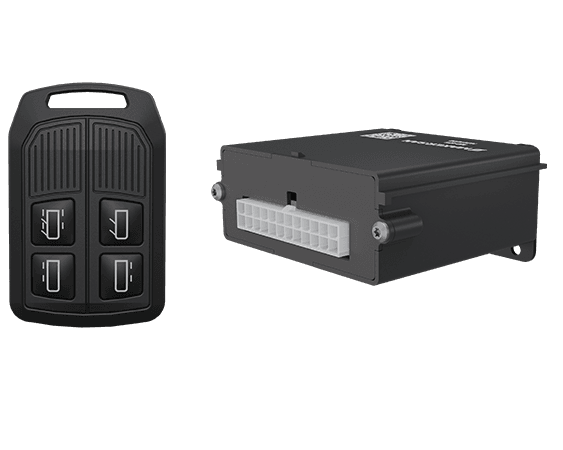

Makersan MO-651 H4X remote keyless entry controller with rugged enclosure for vehicle access control.
MO-651 H4X

Remote Keyless Entry

CAN RKE module with 24-pin MOLEX interface for secure multi-zone access.

Protocol
CAN Bus (SAE J1939)
Supply
12-24 VDC
Connector
24 Pin MOLEX 39012245
Explore model

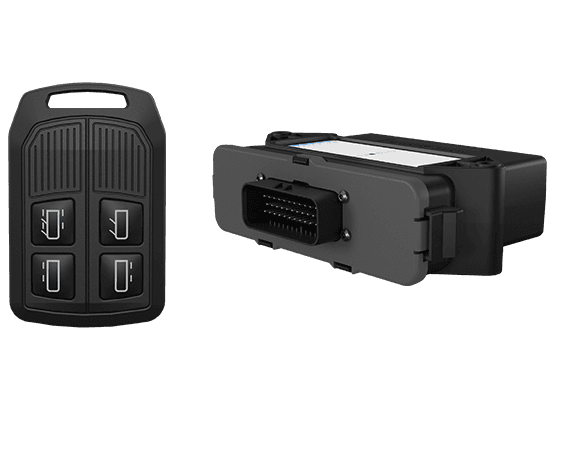

Makersan MO-651 H5X remote keyless entry module for three-zone CAN-based access control.
MO-651 H5X

Remote Keyless Entry

3-zone CAN remote keyless entry module with remote-enabled output options.

Protocol
CAN Bus (SAE J1939)
Supply
24 VDC variants
Protection
IP54
Explore model

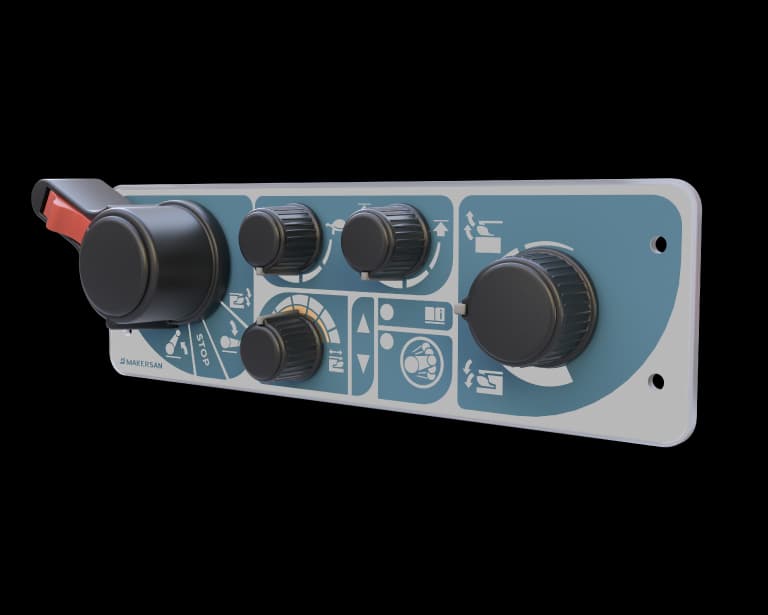

Makersan MO-655 hitch and header height control panel with a teal-blue branded faceplate, a single-axis red-tipped multifunction lever, four rotary control knobs and an iconographic legend for hitch lift, header height and PTO functions.
MO-655

CAN Operator Panel for Hitch Control

CAN operator panel for hitch lifting and header height control functions.

Supply
8-32 VDC
Protection
IP66
Protocol
CAN 2.0A/2.0B + SAE J1939
Explore model
In motion

Dedicated control logic, real-world ready.

From hitch and header workflows to secure remote entry, application-specific controllers deliver deterministic CAN behavior and robust operator interaction under harsh duty cycles.

Makersan application-specific controller lineup showing hitch control panel, RKE keyfob and rugged receiver modules.
Common platform

Built around the operator and the OEM.

Both platforms use reinforced polyamide housings and CAN-based architecture. From operator panel control to secure remote entry, modules are configured for the target machine and integrated over SAE J1939.

Sealing
IP54 / IP66 / IP67
Operating
-40°C ... +80°C (receiver)
Configuration
User configurable or custom
Wireless
433.92 MHz keyfob link
Security
Code rolling access control
Integration
CAN Bus (SAE J1939)
Applications

Where these systems run today.

Specified by tractor, harvester and service-vehicle OEMs across Europe and emerging markets. Tell us about your platform and we'll spec the right module mix and calibration package.

Start a project
  • Agricultural hitch and header height control
  • Tractor and harvester implement management
  • Cabin, trunk and lift-gate access control
  • Bus, coach and caravan door access systems
  • Fleet and service vehicle remote entry
  • Multi-zone CAN-based access automation
