Back to products

P-08 / Pedals & Levers

Contactless command,
built for millions of cycles.

Throttle pedals, control levers and rotary inputs that swap mechanical potentiometers for hall-effect sensing — cleaner signal, no contact wear and ergonomics tuned for long shifts in tough cabs.

Explore the family Contact Us

Lineup of Makersan Pedals & Levers shown side-by-side: a floor-mount throttle pedal with ribbed rubber tread, a suspended hanging accelerator pedal with structural ribbing, a rotary hand-throttle lever with an orange knob, a tall single-axis control lever with a triangulated arm, and a compact rotary thumb control.

The catalogue

From foot to fingertip, a complete control vocabulary.

Electronic pedals and control levers share Makersan's contactless hall-effect signal stack and sealed mechanical platform — mix-and-match across a single cab without re-engineering the harness or the calibration tooling.

Electronic Pedals

Makersan MO 126 suspended accelerator pedal with heavy-duty metal case and ribbed pad.

Suspended Accelerator Pedal

Heavy-duty suspended throttle pedal with contactless hall sensing

Mounting: Suspended
Output: Dual analog / PWM / IVS
Sealing: IP6K9K

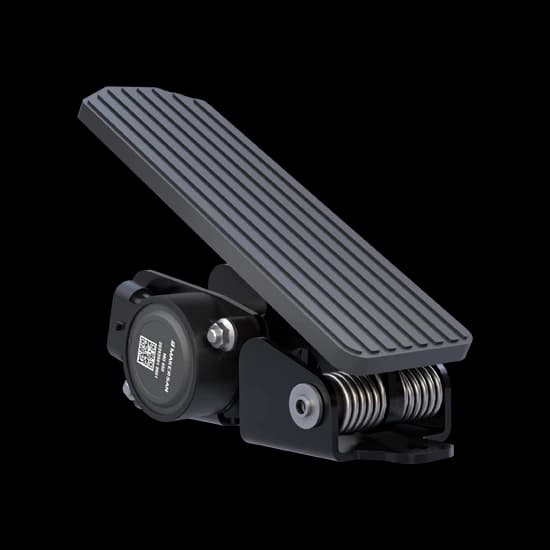

Makersan MO 129 floor-mount accelerator pedal with ribbed treadle and metal case.

Floor Accelerator Pedal

Floor-mount throttle pedal with selectable treadle angle

Mounting: Floor
Treadle: L / S / LW
Sealing: IP6K9K

Makersan MO 367 bidirectional rocker pedal with heavy-duty metal case.

Bidirectional Rocker Pedal

Two-direction rocker pedal with independent springs per direction

Type: Bidirectional
Output: Dual analog / IVS
Sealing: IP6K9K

Makersan MO 370 suspended accelerator pedal in reinforced polyamide case.

Suspended Accelerator Pedal (Polymer)

Lightweight suspended pedal in reinforced polyamide

Mounting: Suspended
Output: Dual analog / IVS
Sealing: IP6K9K

Makersan MO 372 compact suspended accelerator pedal in reinforced polyamide case.

Suspended Accelerator Pedal (Compact Polymer)

Compact reinforced-polyamide suspended throttle pedal

Mounting: Suspended
Output: Dual analog / IVS
Sealing: IP6K9K

Makersan MO 381 suspended electronic clutch pedal with heavy-duty metal case.

Clutch Pedal

Suspended electronic clutch pedal with contactless sensing

Function: Clutch
Output: Dual analog / IVS
Sealing: IP6K9K

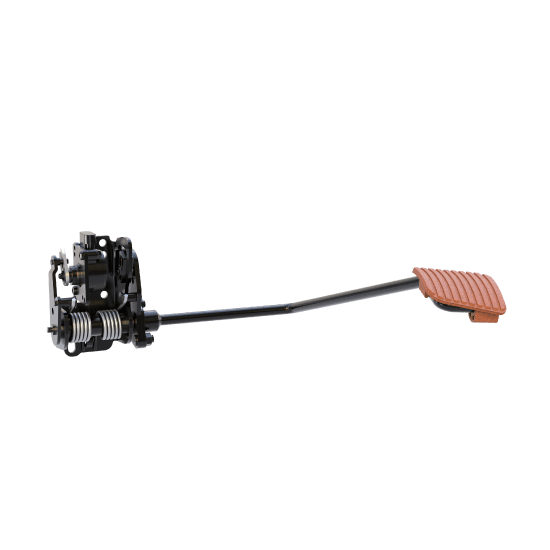

Makersan MO 382 tractor accelerator pedal with heavy-duty metal case.

Tractor Pedal

Suspended or underfloor tractor throttle pedal, left or right side

Configs: A / B / C / D
Output: Dual analog / IVS
Sealing: IP6K9K

Makersan MO 383T suspended tractor accelerator pedal with heavy-duty metal case.

Tractor Accelerator Pedal

Suspended tractor throttle pedal with customisable rod

Mounting: Suspended
Output: Analog / PWM / IVS
Sealing: IP6K9K

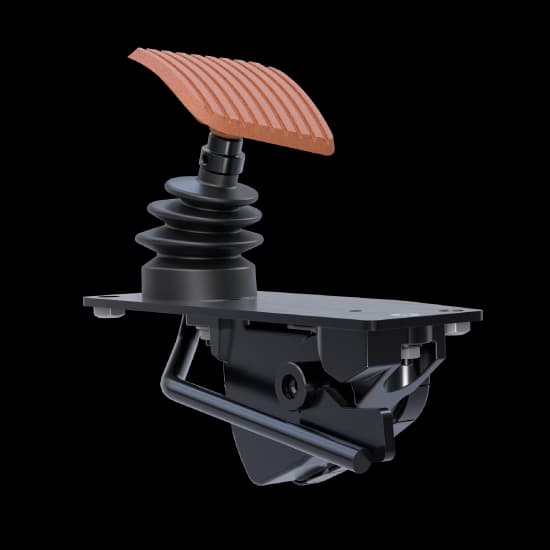

Makersan MO 368A underfloor accelerator pedal in reinforced polyamide case.

Floor Accelerator Pedal (Underfloor)

Underfloor throttle pedal with extended analog output range

Mounting: Underfloor
Output: Analog / 4-20mA / PWM
Sealing: IP6K9K / IP65

Makersan MO 368B underfloor accelerator pedal in reinforced polyamide case.

Floor Accelerator Pedal (Underfloor)

Underfloor throttle pedal variant with extended outputs

Mounting: Underfloor
Output: Analog / 4-20mA / PWM
Sealing: IP6K9K / IP65

Makersan MO 368C underfloor accelerator pedal in reinforced polyamide case.

Floor Accelerator Pedal (Underfloor)

Underfloor throttle pedal variant with extended outputs

Mounting: Underfloor
Output: Analog / 4-20mA / PWM
Sealing: IP6K9K / IP65

Makersan MO 369 suspended accelerator pedal in reinforced polyamide case.

Suspended Accelerator Pedal (Extended Output)

Suspended throttle pedal with extended analog output range

Mounting: Suspended
Output: Analog / 4-20mA / PWM
Sealing: IP6K9K / IP65

Electronic Control Levers

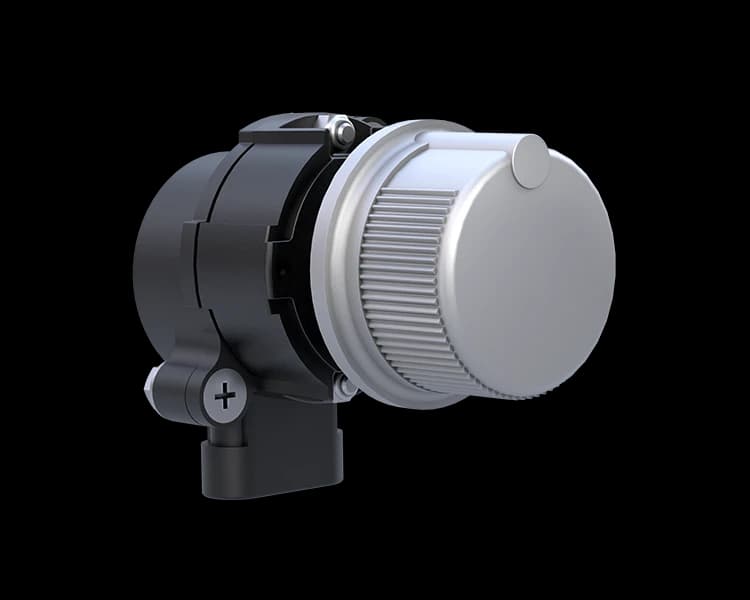

Makersan MO 375A rotary hand throttle with knob and sealed base.

Rotary Hand Throttle

Rotary valve control with detents and friction hold

Angle: 100° + detents
Output: CAN / analog / PWM
Sealing: IP6K9K

Makersan MO 376 rotary control lever in button and handle actuator variants.

Rotary Control Lever

90°/180° programmable rotary lever with button or handle actuator

Angle: 90° / 180°
Output: CAN / analog / PWM
Sealing: IP6K9K

Makersan MO 378 rotary control lever with sealed base.

Rotary Control Lever (60°)

60° programmable rotary lever with front, sub and opposite mounting

Angle: 60°
Output: CAN / analog / PWM
Sealing: IP6K9K

Makersan MO 378M rotary control lever with sealed base.

Rotary Control Lever (45°)

45° programmable rotary lever with bracket options

Angle: 45°
Output: CAN / analog / PWM
Sealing: IP6K9K

Makersan MO 378N high-cycle rotary control lever with sealed base.

Rotary Control Lever (High-Cycle)

45° rotary lever rated for over 5 million cycles

Angle: 45°
Cycles: 5M+
Output: CAN / analog / PWM

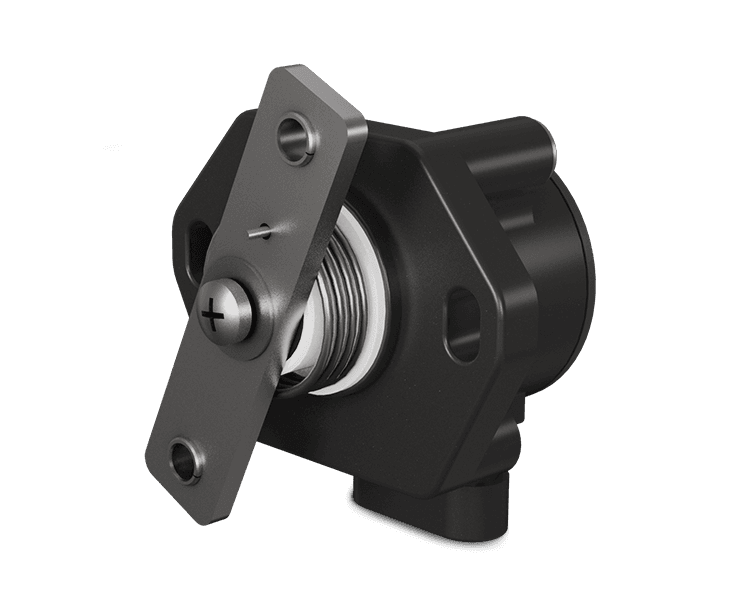

Makersan MO 378S rotary control lever with grip option.

Rotary Control Lever (Grip)

45° rotary lever with optional grip and double-sided bracket

Angle: 45°
Output: CAN / analog / PWM
Sealing: IP6K9K

Makersan MO 379 rotary control with knob and sealed plate.

Rotary Control with Detents

90°/180° rotary control with plate, knob and shaft options

Angle: 90° / 180° / detents
Output: CAN / analog / PWM
Sealing: IP6K9K

Common platform

One signal stack for every operator input.

Identical sensing, sealing and output options across the full input range — specify one harness and one tuning tool for the entire cab.

Sensing

Contactless hall-effect

Sealing

IP6K9K

Cycles

2 - 5M+ rated

Supply

5V or 8-32V

Output

Analog / PWM / IVS / CAN

Mounting

Floor / suspended / underfloor / rotary

Applications

Where Makersan inputs go to work.

Specified on commercial vehicles, construction and agricultural machinery, marine craft and material-handling equipment. Send us your duty cycle and we'll spec the right pedal, lever or rotary unit.

Start a project

Off-road throttle and propulsion control
Agricultural tractor and harvester command
Construction and material-handling equipment
Hydraulic implement and valve control
Transmission and creep control
Marine throttle and trim control
