M-19 / Pedals & levers
MO 379
Rotary Control with Detents · 90°/180° rotary control with plate, knob and shaft options
MO 379 is an electronic rotary control with 90°, 180° or detented programmable angles at 0.1° resolution. Plate, knob and shaft options and contactless full-redundant double-die hall sensing make it a flexible cab-mounted control element.
- Angle
- 90° / 180° / detents
- Output
- CAN / analog / PWM
- Sealing
- IP6K9K
Quick highlights
Performance snapshot
Built for configurable rotary command with detents.
- 90°, 180° or detented angle profiles at 0.1° resolution
- Plate, knob and shaft configuration options
- Single or double full redundant outputs
- CAN (SAE J1939 / CANopen), analog and PWM outputs
- 2 million cycles (500,000 with detent)
- IP6K9K sealed sensor

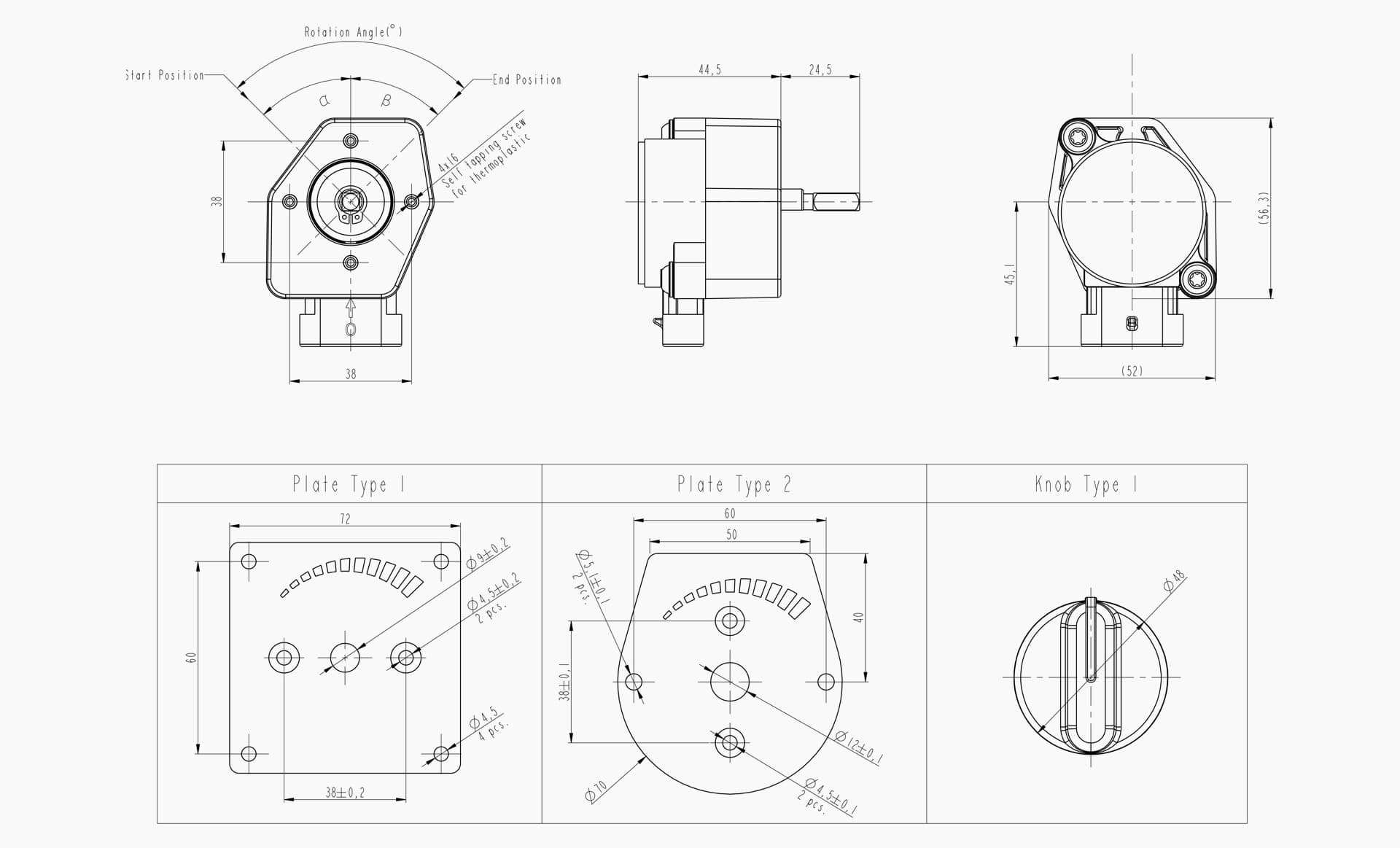

Engineering views
Technical overview
- Type
- Rotary control
- Measuring principle
- Contactless full redundant double-die hall
- Programmable angle
- 90° / 180° / with detents (0.1° resolution)
- Supply voltage
- 5V or 8-32V
- Outputs
- Analog (0-5V / 4-20mA); PWM; Analog+IVS; CAN (SAE J1939 / CANopen)
- Redundancy
- Single or double full redundant
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- 2 million cycles (500,000 with detent)
- Operating temperature
- -40°C … +85°C
Module capabilities
- Rotary valve control
- 90°, 180° or detented programmable angle (0.1° resolution)
- Contactless full redundant double-die hall sensor
- Single or double full redundant programmable output
- Analog type: 0-5V / 4-20mA / PWM
- Analog+IVS type: analog with high-side or low-side switch
- CAN type: SAE J1939 and CANopen
- Plate, knob and shaft options
Order Code
| MO 379 - | X - Option | X Description |
|---|---|---|

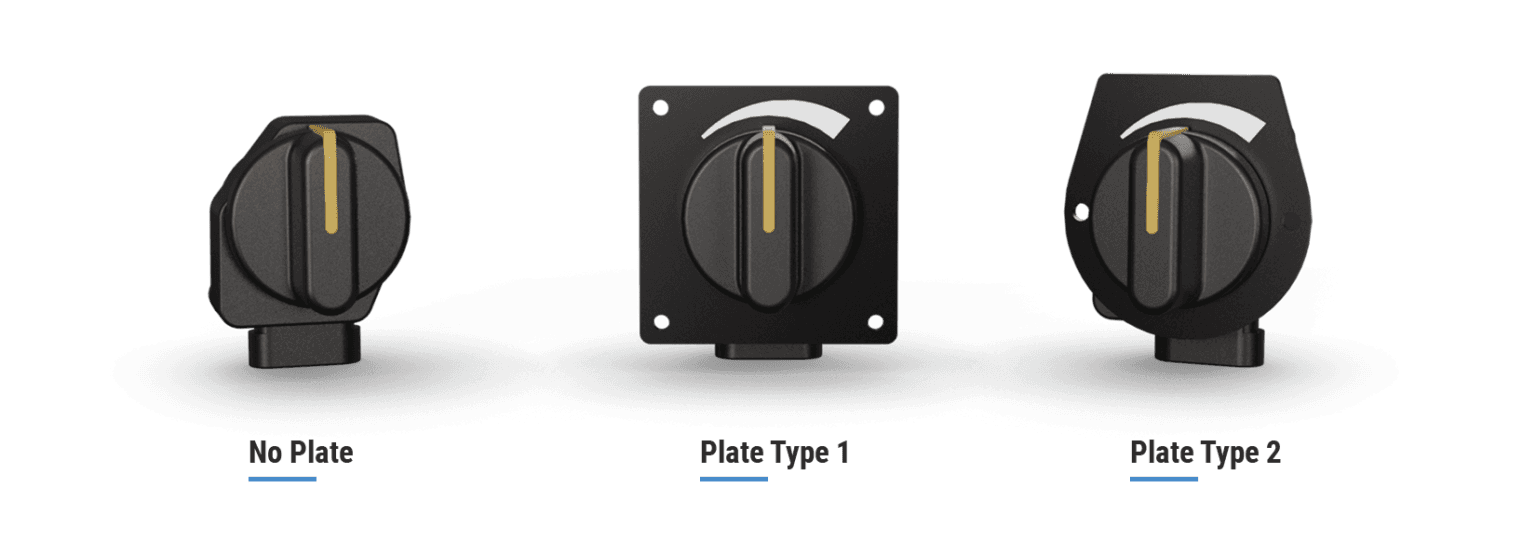

| Plate type | 0 / 1 / 2 | Plate option |

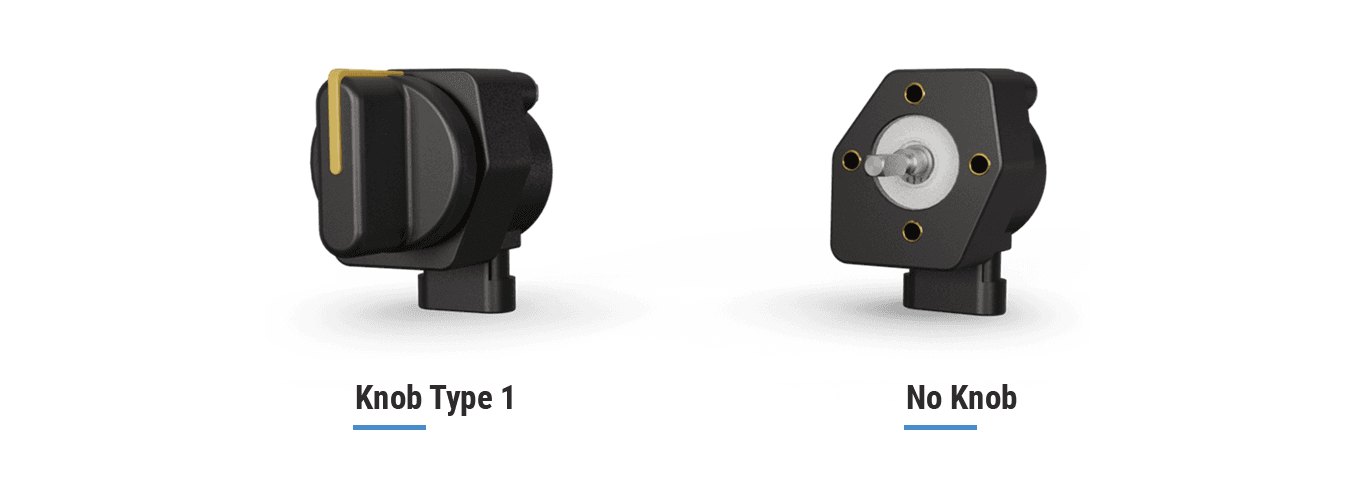

| Knob colour | 0 | 4 - Knob option |
| Rotation angle | 0 | 4 - Angle / detent option |

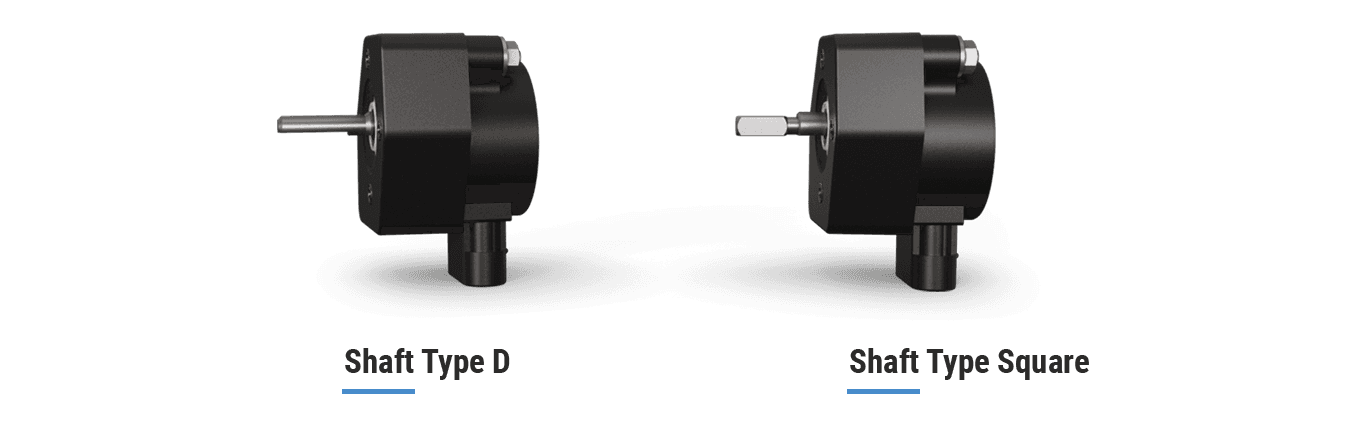

| Shaft type | Square or D | |
| Sensor program | P009 | Dual analog (other programs on request) |
Example: MO 379 - 1 - 1 - 2 - D - P009
