P-02 / Controllers

Controllers built
to run the machine.

Controller & I/O modules controls different functions such as relay, valve and motor control for commercial vehicles, off-road vehicles, marine and industrial machines.

Explore the familyContact Us
Scroll
Models

Five form factors, one platform.

Every controller shares the same firmware framework, signal stack and tooling — pick the I/O density and connector style that fit your machine without rewriting the application.

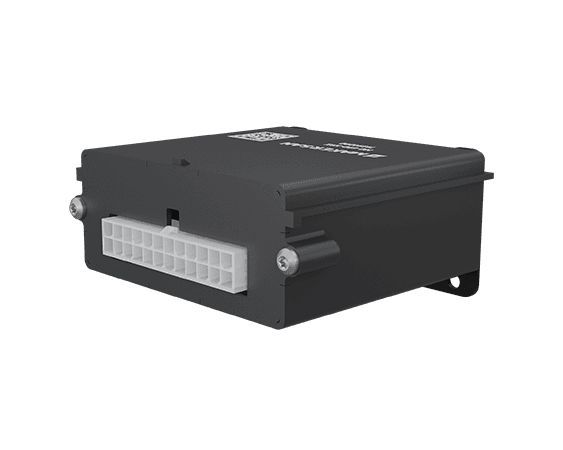

Makersan MO 690 H1X mix I/O controller module shown in a compact black enclosure with connector interface.
MO 690 H1X
ECO Controller

Mix I/O Controller

I/O
Mix IO
Connector
24 Pin Molex
Supply
8(12)~32 VDC
Explore model

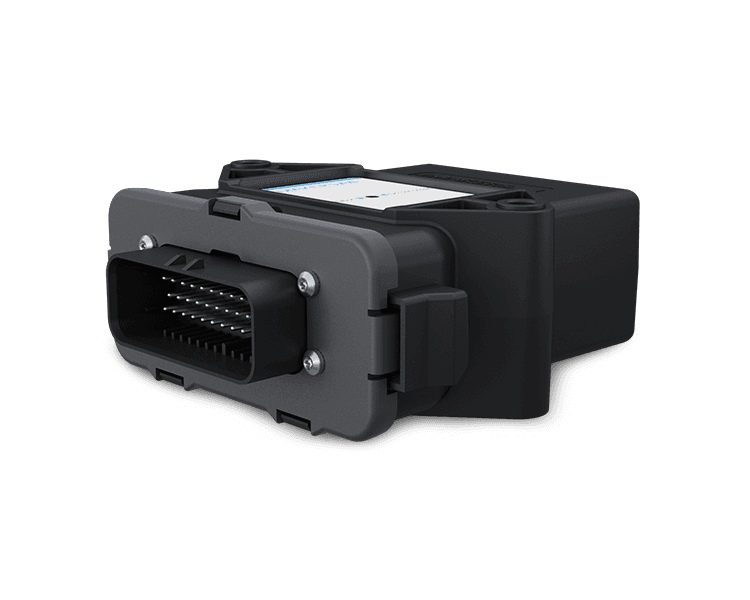

Makersan MO 691 H1X compact mix I/O controller module with sealed enclosure and high-density connector interface.
MO 691 H1X
Compact Controller

Mix I/O Controller

I/O
Mix IO
Connector
35 Pin Tyco
Supply
8(12)~32 VDC
Explore model
Makersan MO 691 H2X compact valve controller module with sealed enclosure and 35-pin connector interface.
MO 691 H2X
Compact Controller

Valve Controller

I/O
Valve Driver
Connector
35 Pin Tyco
Supply
8(12)~32 VDC
Explore model

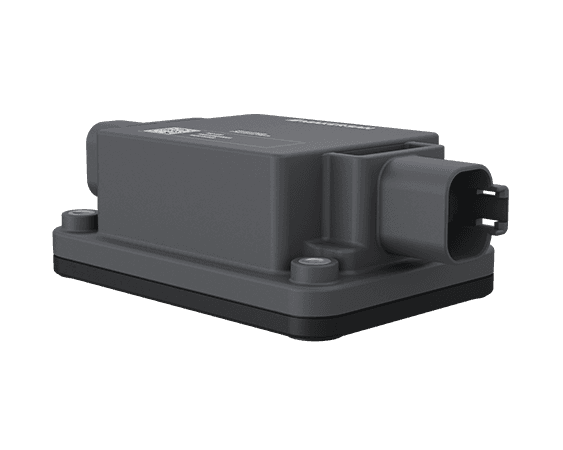

Makersan MO 699 H1X mini valve controller module with compact enclosure and 2x4 pin Deutsch DT connector.
MO 699 H1X
Mini Controller

Valve Controller

I/O
Valve Driver
Connector
2x4 Pin Deutsch
Supply
8(12)~32 VDC
Explore model
Compact Controller

Compact controller using CAN bus meet local specific functions of your vehicle such as multi function IO, proportional valve control, BLDC & Step motor control and high current switch.They are interfacing with a main control unit auxiliary functions with on-board I/O.

ECO Controller

ECO series controller automate applications using CAN bus, they are cost sensitive units with basic IO functions such as expanding control system capability with on-board I/O.

Mini Controller

Mini controller specifically designed for use in cost-sensitive applications using CAN bus, they are interfacing with a control unit to drive valves and small motors such as fan control.

In motion

Real-time control loops, no delays.

Live output states, fast signal processing and deterministic CAN messaging keep hydraulic, drive and body functions responsive under load.

Makersan controller lineup highlighting compact, mid-range and high-I/O modules for mobile machine control.
Common platform

Engineered for harsh duty cycles.

Every controller passes the same EMC, vibration, salt-spray and thermal-shock test programme — the only thing that changes between models is the I/O count and connector layout.

Sealing
IP67
Operating
-40°C ... +80°C
Supply
8(12)~32 VDC
Bus
SAE J1939 or CANopen
Outputs
Mix IO, Valve Driver
Tooling
USB to CAN / USB2CAN interface
Applications

Where our controllers go to work.

Specified by OEMs across off-road, marine and industrial automation. Tell us about your platform and we'll spec the right module mix and harness layout.

Start a project
  • Hydraulic valve & cylinder control
  • Motor & actuator drive systems
  • Lighting & body electronics
  • Hitch, header & implement control
  • Marine helm & deck systems
  • Material handling & AGV platforms
