Makersan
Back to products
P-07 / Sensors

Sealed sensing,
tuned for the machine.

Our range of position, angular, temperature, inclination, acceleration and gyro sensors provides precise and reliable measurement for mobile and industrial applications.

Explore the familyContact Us
Lineup of five Makersan sensors shown side-by-side: a brass pressure transducer with a hex fitting, a black rotary position sensor with a shaft, a central black inclination / IMU module, a compact angular position sensor, and a brass temperature probe with a screw fitting.
Scroll
Sensor families

Six sensor modules, one rugged family.

Position, temperature, IMU and load sensing modules for construction, agriculture, material handling and other specialty vehicles.

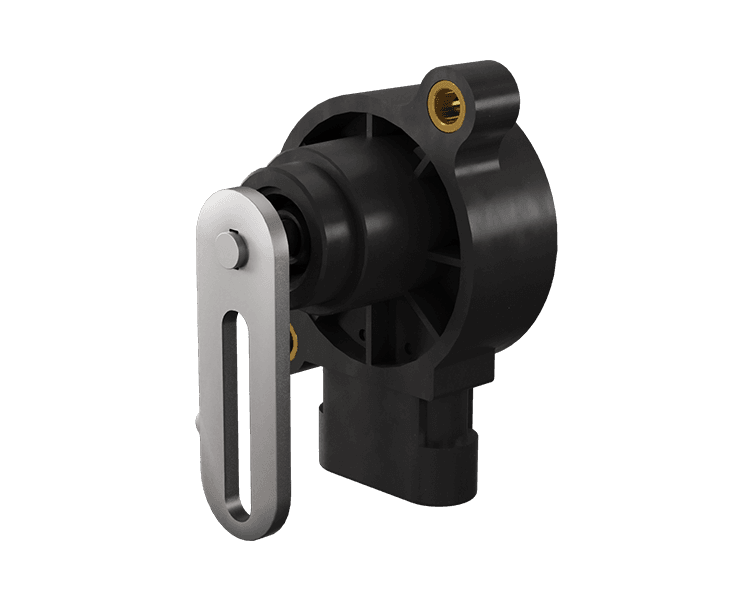

Makersan MO 450 rotary position sensor with shaft input and sealed compact housing.
MO 450

Rotary Position Sensor

Contactless hall sensor for precision angular feedback

Range
0–360° programmable
Output
Analog / SAE J1939 / CANopen
Temperature
-40°C to +85°C
Explore model

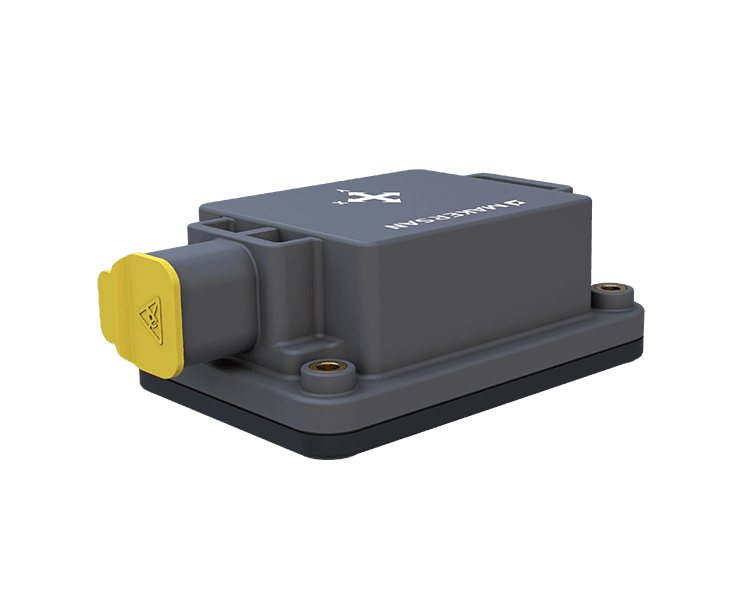

Makersan MO 415 inclination, acceleration and gyro sensor in sealed industrial enclosure.
MO 415

Inclination / Acceleration / Gyro

6D IMU (3D Accelerometer + 3D Gyroscope) / Sensor Fusion

Technology
6D IMU + Sensor Fusion
Protocol
SAE J1939 / CANopen
Protection
IP67
Explore model
Makersan MO 414 air temperature sensor in compact rugged form factor.
MO 414

Air Temperature Sensor

Rugged ambient air sensing for mobile machines

Temperature
-40°C to +80°C
Resistance
2100 Ohm @25°C
Protection
IP65
Explore model

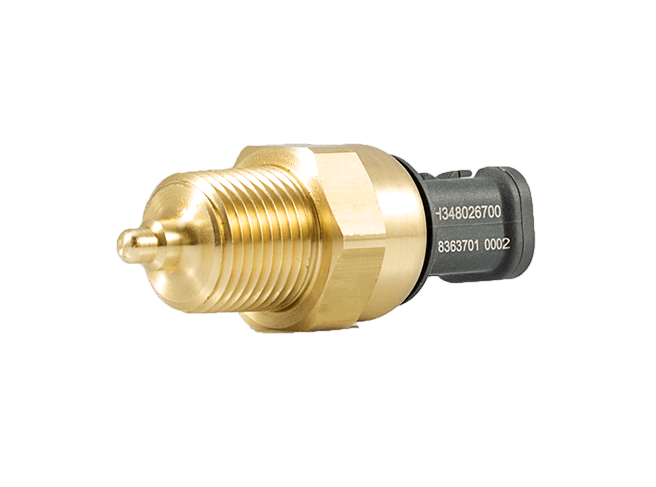

Makersan MO 413 liquid temperature sensor with threaded brass body.
MO 413

Liquid Temperature Sensor

Sealed liquid temperature sensing for demanding circuits

Temperature
-35°C to +120°C
Pressure
Up to max 400 Bar
Protection
IP6K9K
Explore model
Makersan MO 454 high level sensor used in throttle and rotary valve control applications.
MO 454

Height Level Sensor

Electronic hand throttle for rotary valve control

Supply
5V or 8-32V
Operating
-40°C ... +85°C
Protection
IP6K9K
Explore model

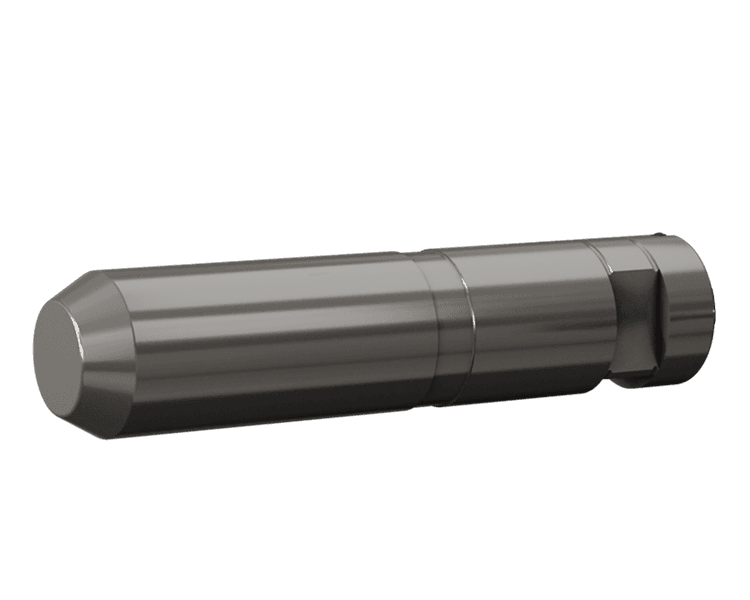

Makersan MO 470 load pin sensor for force/load monitoring applications.
MO 470
Pre-Production

Load Pin

Pre Production

Type
Load Pin Sensor
Status
Pre Production
Category
Sensors
Sensor model
Makersan MO 470 load pin sensor for force/load monitoring applications.
MO 470
Pre-Production

Load Pin

Pre Production

Type
Load Pin Sensor
Status
Pre Production
Category
Sensors
Sensor model
In motion

Live measurement streams, ready for control.

From rotary position and IMU to thermal sensing, Makersan modules provide stable real-time feedback for vehicle control, diagnostics and telemetry workflows.

Makersan sensor lineup for position, IMU, temperature and load sensing applications.
Common platform

One signal stack across angle, motion, force and heat.

All Makersan sensors share the same connector families, output options and OEM calibration tooling — so platform-wide redesigns aren't needed when you add a new measurement.

Position
0-360° programmable
IMU
6D (3D Accel / 3D Gyro)
Temperature range
-40°C to +120°C
Sensor classes
Position / Temperature / IMU / Load
Protection
IP65 / IP67 / IP6K9K
Output
Analog / PWM / Resistive / SAE J1939 / CANopen
Applications

Where Makersan sensors run today.

Long service life and robust construction with high ingress protection levels deliver strong performance in challenging environments.

Start a project
  • Mobile applications
  • Construction machines
  • Agricultural vehicles
  • Material handling equipment
  • Specialty vehicles
  • Industrial applications
