M-03 / Sensor model
MO 414
Air Temperature Sensor · Rugged ambient air sensing for mobile machines
MO 414 is a compact air temperature sensor for vehicle and mobile equipment platforms, providing stable NTC-based measurement in harsh outdoor environments.
- Temperature
- -40°C to +80°C
- Resistance
- 2100 Ohm at 25°C
- Protection
- IP65
Quick highlights
Performance snapshot
Built for reliable ambient sensing in field conditions.
- Operating temperature range: -40°C to +80°C
- Nominal resistance: 2100 Ohm at 25°C
- Ingress protection: IP65
- Grothe Hartman Counter Connector kit is available on request.
- 30% GF reinforced polyamid plastic case
- Weight: 0.012 kg

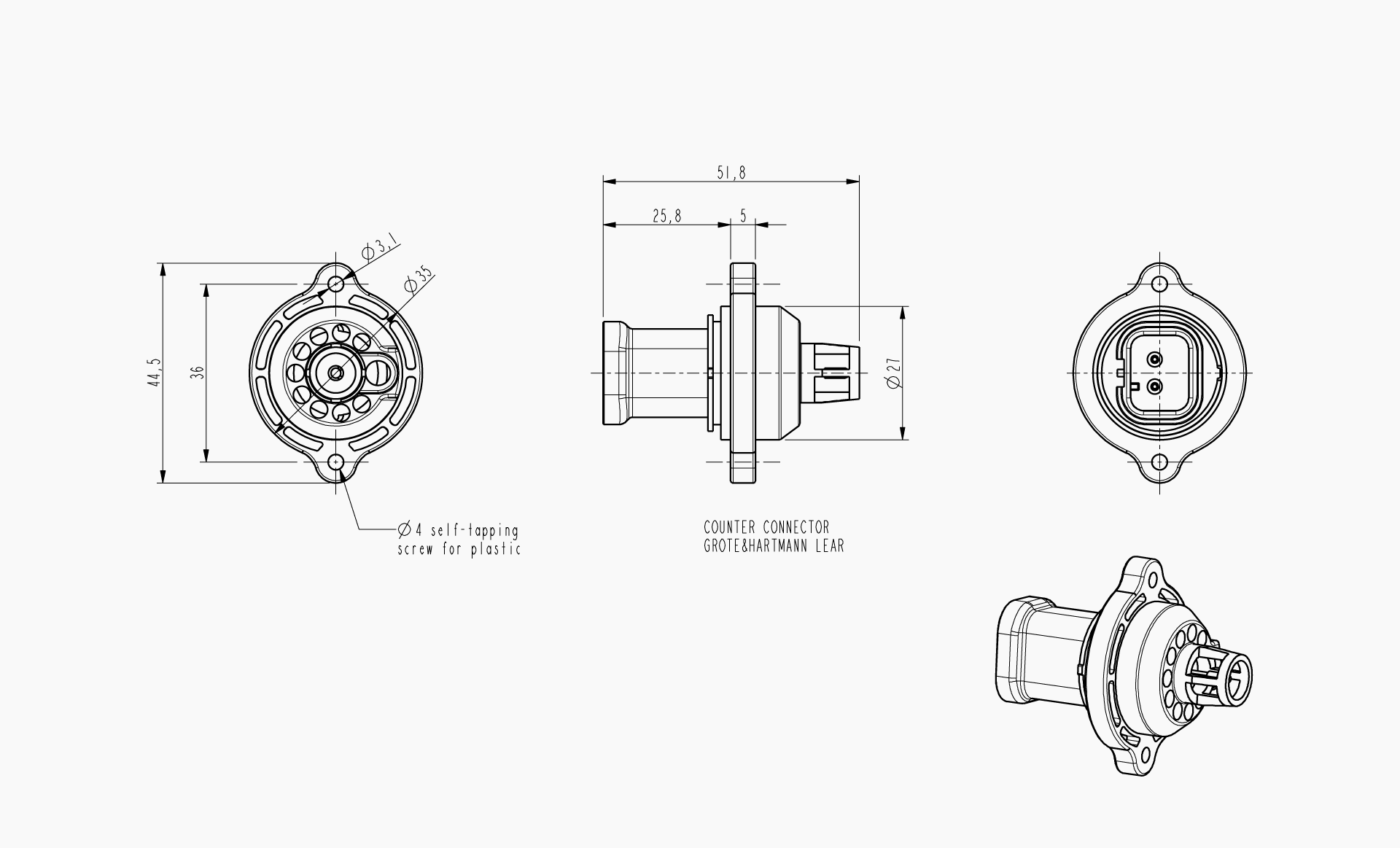

Engineering views
Technical overview
- Application
- Measurement of air temperature for vehicles
- Operating temperature
- -40°C to +80°C
- Nominal resistance
- 2100 Ohm at 25°C
- Ingress protection
- IP65
- Housing
- 30% GF reinforced polyamid plastic case
- Counter connector
- Grothe Hartman Counter Connector kit is available on request.
- Weight
- 0.012 kg
Module capabilities
- Nominal resistance 2100 Ohm at 25°C
- Ingress protection: IP65
- Grothe Hartman Counter Connector kit is available on request.
- 30% GF reinforced polyamid plastic case
- 0.012 kg
- Measurement of air temperature for vehicles
Order Code
MO 414 - | X Hardware Configuration |
|---|---|
| 1 - 2100 ohm at 25°C |
Example: MO 414 - 1
