M-01 / Sensor model
MO 450
Rotary Position Sensor · Contactless hall sensor for precision angular feedback
MO 450 is a programmable rotary position sensor designed for mobile and industrial machine applications that require reliable angular feedback in sealed field conditions.
- Range
- 0–360° programmable (0.1° resolution)
- Output
- 0-5V / 0-10V / 4-20mA / PWM / CAN
- Operating
- -40°C ... +85°C
Quick highlights
Performance snapshot
Built for precision rotary position feedback.
- Contactless, full redundant double-die hall sensing architecture
- 0 to 360° programmable angle with 0.1° resolution
- 6-way Delphi Packard Metri Pack 150 connector
- Operating temperature range from -40°C to +85°C
- Mechanical lifetime up to 10 million cycles
- Supply options for 5V and 8(12)-32V systems

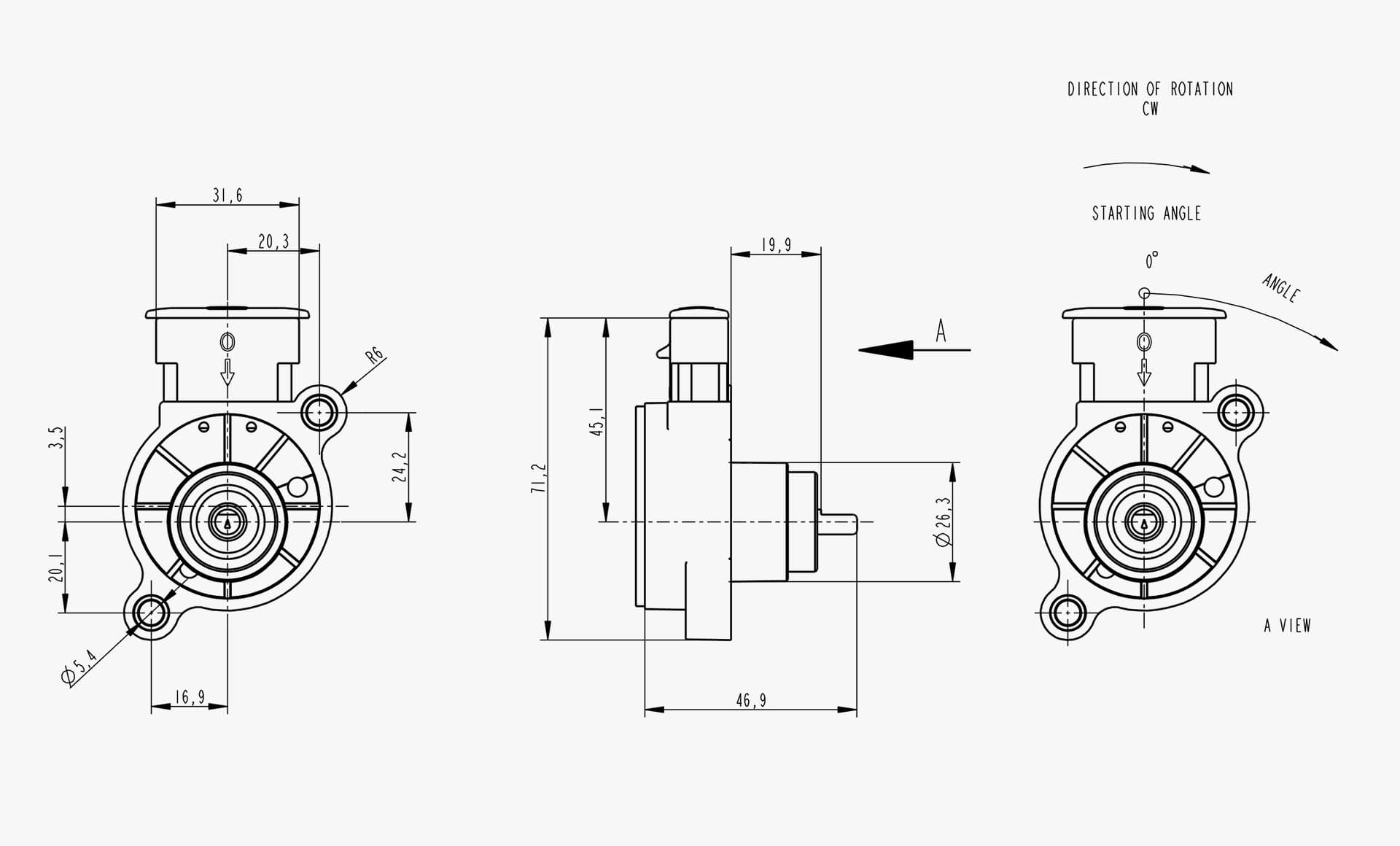

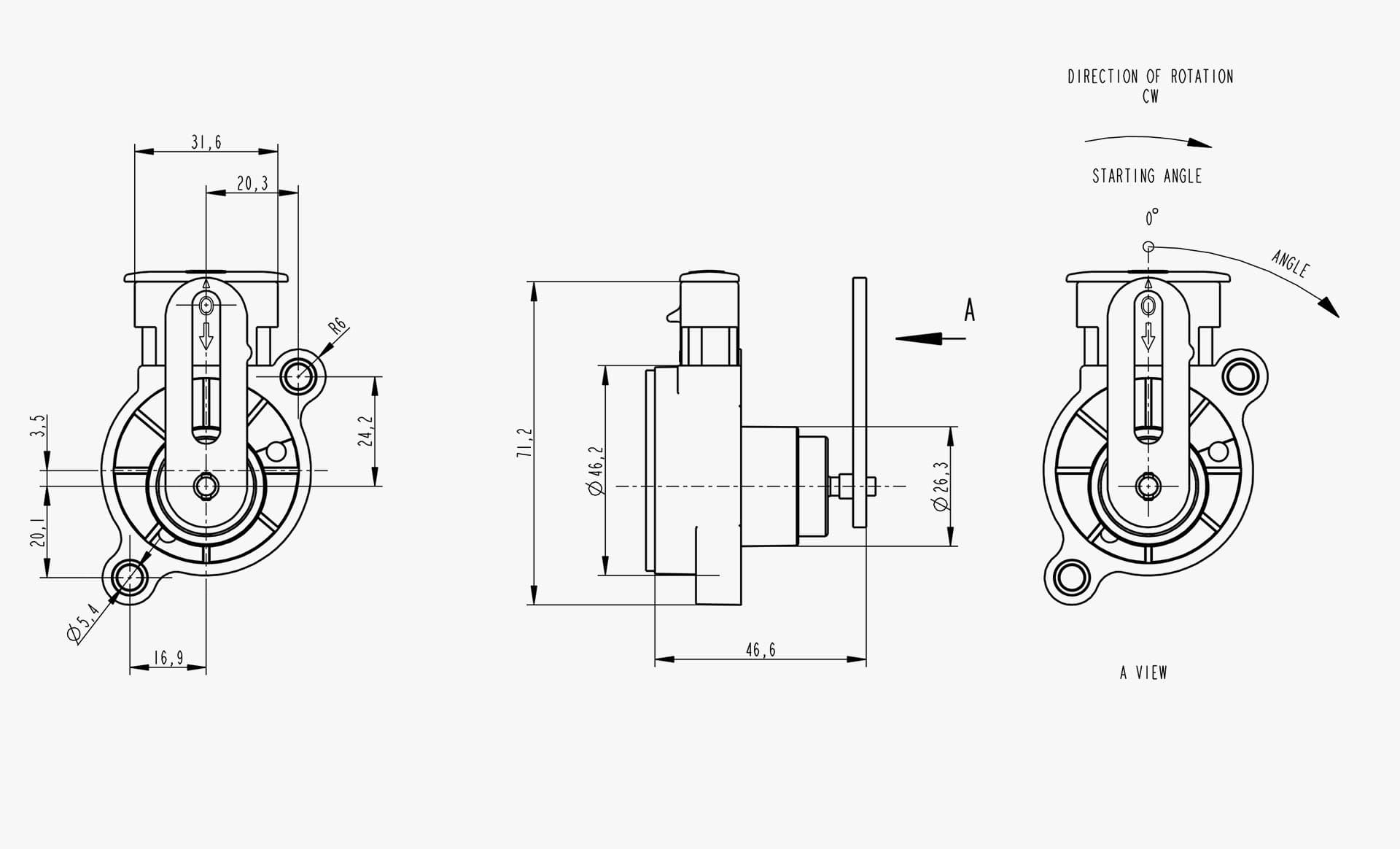

Engineering views
Technical overview
- Technology
- Contactless / full redundant double-die hall sensor
- Programmable angle
- 0–360° (0.1° resolution)
- Connector
- 6 way Delphi Packard Metri Pack 150
- Operating temperature
- -40°C ... +85°C
- Mechanical lifetime
- 10 million cycles
- Supply options
- 5V or 8(12)-32V
- Analog outputs
- 0-5V / 0-10V / 4-20mA / PWM
- CAN outputs
- SAE J1939 / CANopen
- Configuration
- Custom output mapping, direction and travel angle
- Signal mode
- Ratiometric / Non-Ratiometric
Module capabilities
- Single/Dual Analog Type: 0-5V, 0-10V, 4-20mA, PWM
- Analog+IVS Type: Analog output with high-side or low-side switch
- CAN Type: SAE J1939 or CANopen output options
- Customized output signal program
- Customized rotation direction, start angle and travel angle
- Ratiometric and non-ratiometric output options
Order Code
MO 450X - | HXX - Hardware Configuration | PXXX - Sensor Program | XX Angle Config |
|---|---|---|---|
| H10 - SUPPLY:5V / OUTPUT:0-5V Analog | * | * | |
| H20 - SUPPLY:8-32V / OUTPUT:0-5V Analog | |||
| H40 - SUPPLY:12-32V / OUTPUT:0-10V Analog | |||
| H41 - SUPPLY:12-32V / OUTPUT:4-20 mA Analog | |||
| H50 - SUPPLY:8-32V / OUTPUT:SAE J1939, CANopen |
* Custom programmed according to customer request.
