M-05 / Sensor model
MO 454

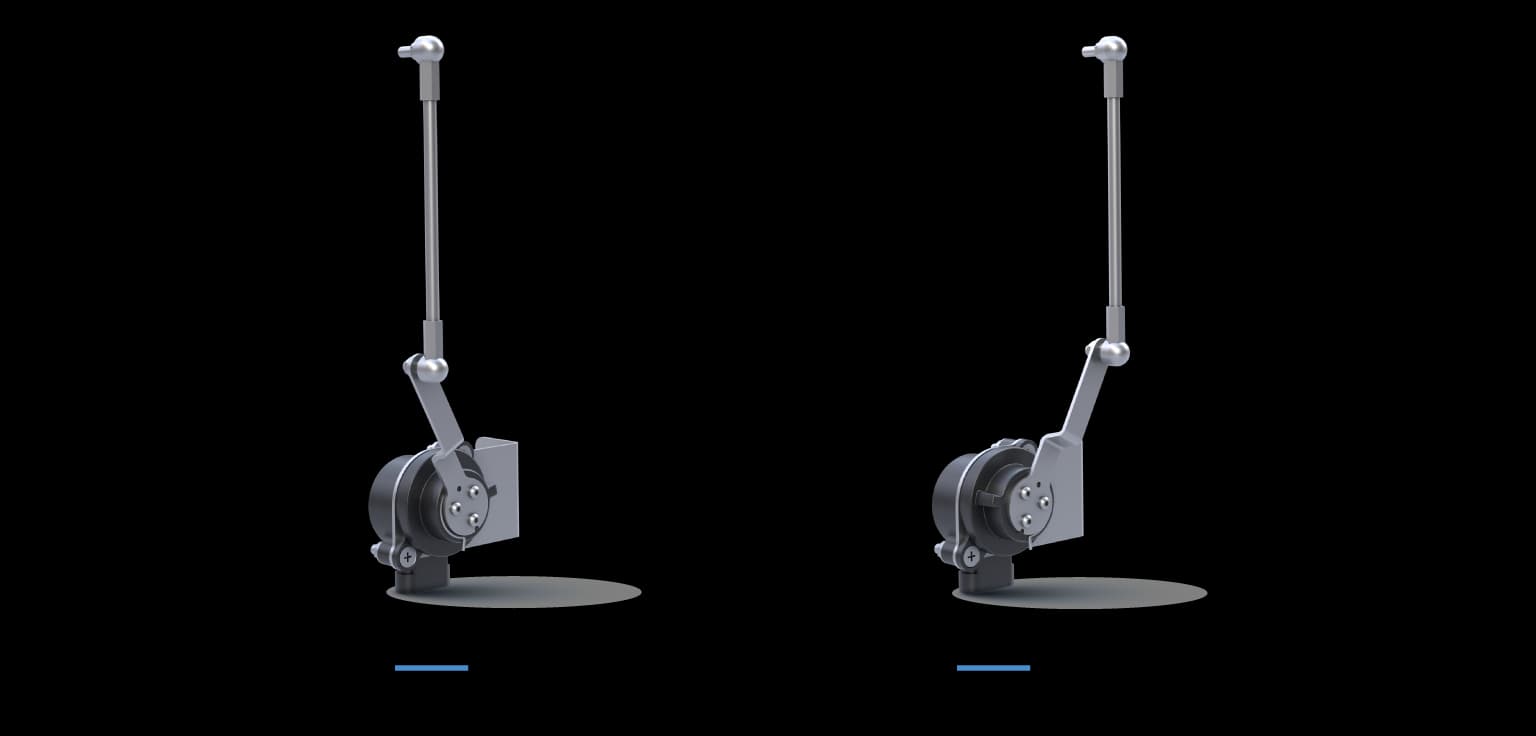

Height Level Sensor · Electronic hand throttle for rotary valve control
MO 454 is a heavy-duty height level sensor and electronic hand throttle interface for agricultural tractors and off-road vehicles, designed for reliable rotary valve control.
- Supply
- 5V or 8-32V
- Operating
- -40°C ... +85°C
- Protection
- IP6K9K
Quick highlights
Performance snapshot
Built for heavy-duty throttle control in off-road platforms.
- Supply voltage options: 5V or 8-32V
- Ingress protection rated at IP6K9K
- Operating temperature range: -40°C to +85°C
- More than 2 million actuation cycles
- CW and CCW rotation options
- Configured for agricultural tractors and off-road vehicles

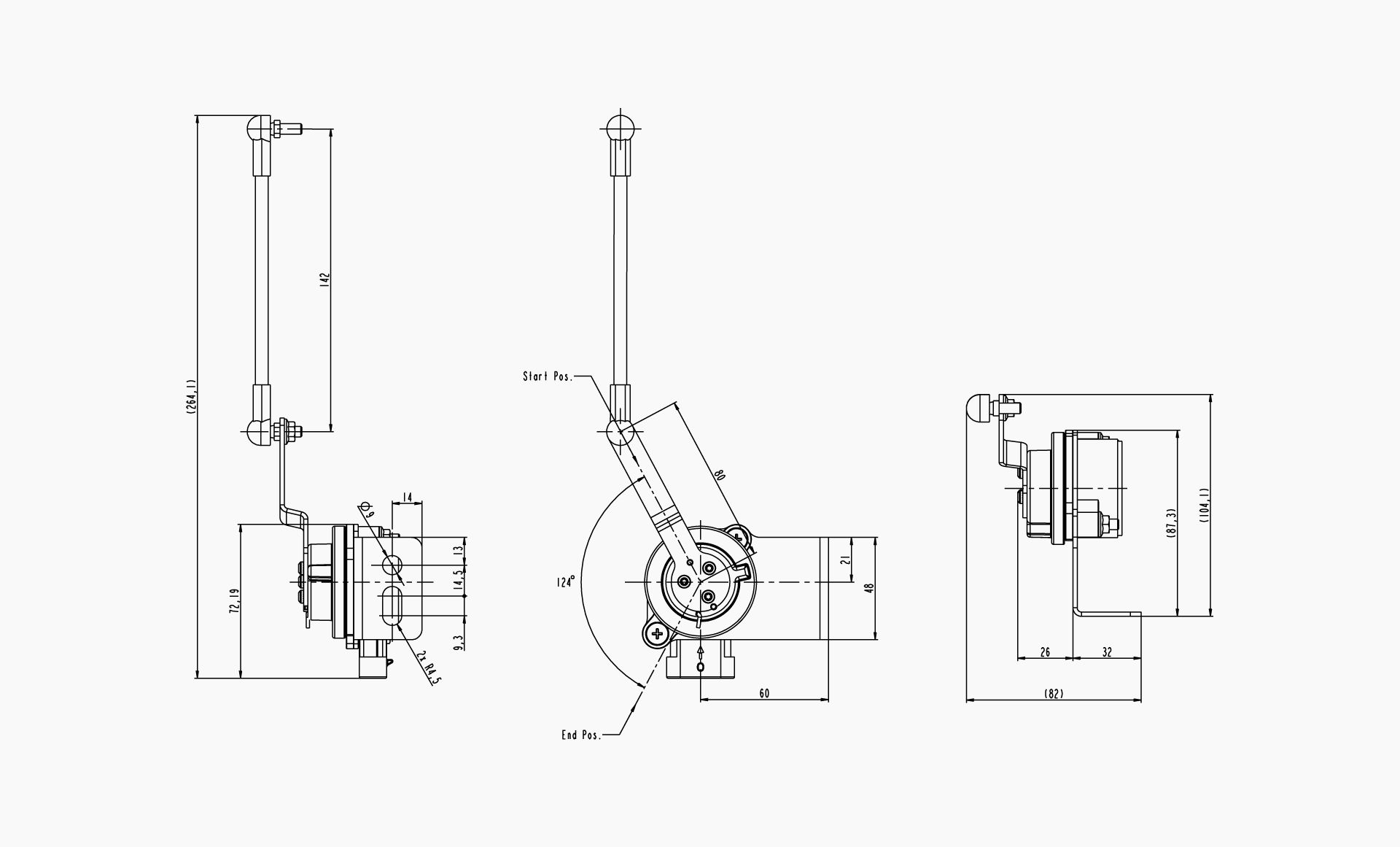

Engineering views
Technical overview
- Application
- Electronic hand throttle / rotary valve control
- Target platforms
- Agricultural tractors and off-road vehicles
- Measurement principle
- Contactless
- Output architecture
- Full redundant double programmable outputs
- Output types
- Analog / PWM / IVS
- Dual analog type
- 0-5V / PWM
- Analog+IVS type
- Analog + Highside or Lowside Switch
- Supply voltage
- 5V or 8-32V
- Operating temperature
- -40°C ... +85°C
- Ingress protection
- IP6K9K
- Connector
- 6 way Delphi Packard Metric Pack 150
- Mechanical durability
- More than 2 million actuation
- Housing
- Heavy duty metal case
- Spring system
- Two independent springs
Module capabilities
- Suitable for different engine interfaces
- Contactless measuring principle
- Full redundant double programmable outputs
- Dual Analog type: 0-5V / PWM
- Analog+IVS type: Analog + Highside or Lowside Switch
- Analog, PWM and IVS output options
- Virtual effect option
- 6 way Delphi Packard Metric Pack 150 connector
- Two independent springs
- Heavy duty metal case
Order Code
MO 454- | X - Mounting | X - Rod Type | X - Rotation | PXXX- Sensor Program |
|---|---|---|---|---|
| 1 - Standard | 1- Standard Rod | 1- CCW | P009 - Dual Analog P009 | |
| 2- CW | * |
*Different programs can be produced on request.
Example: MO454-1-1-1-P009
