MO 383T
Tractor Accelerator Pedal · Suspended tractor throttle pedal with customisable rod
MO 383T is a suspended accelerator pedal for agricultural tractors and off-road vehicles, suitable for different engine interfaces. Contactless sensing with full redundant programmable outputs and customisable rod types on request.
- Mounting
- Suspended
- Output
- Analog / PWM / IVS
- Sealing
- IP6K9K
Quick highlights
Performance snapshot
Built for tractor throttle control with custom linkage.
- Suspended tractor throttle pedal
- Full redundant double programmable outputs
- Analog, PWM and IVS output options
- Customisable rod types on request
- More than 2 million actuations
- IP6K9K sealed sensor

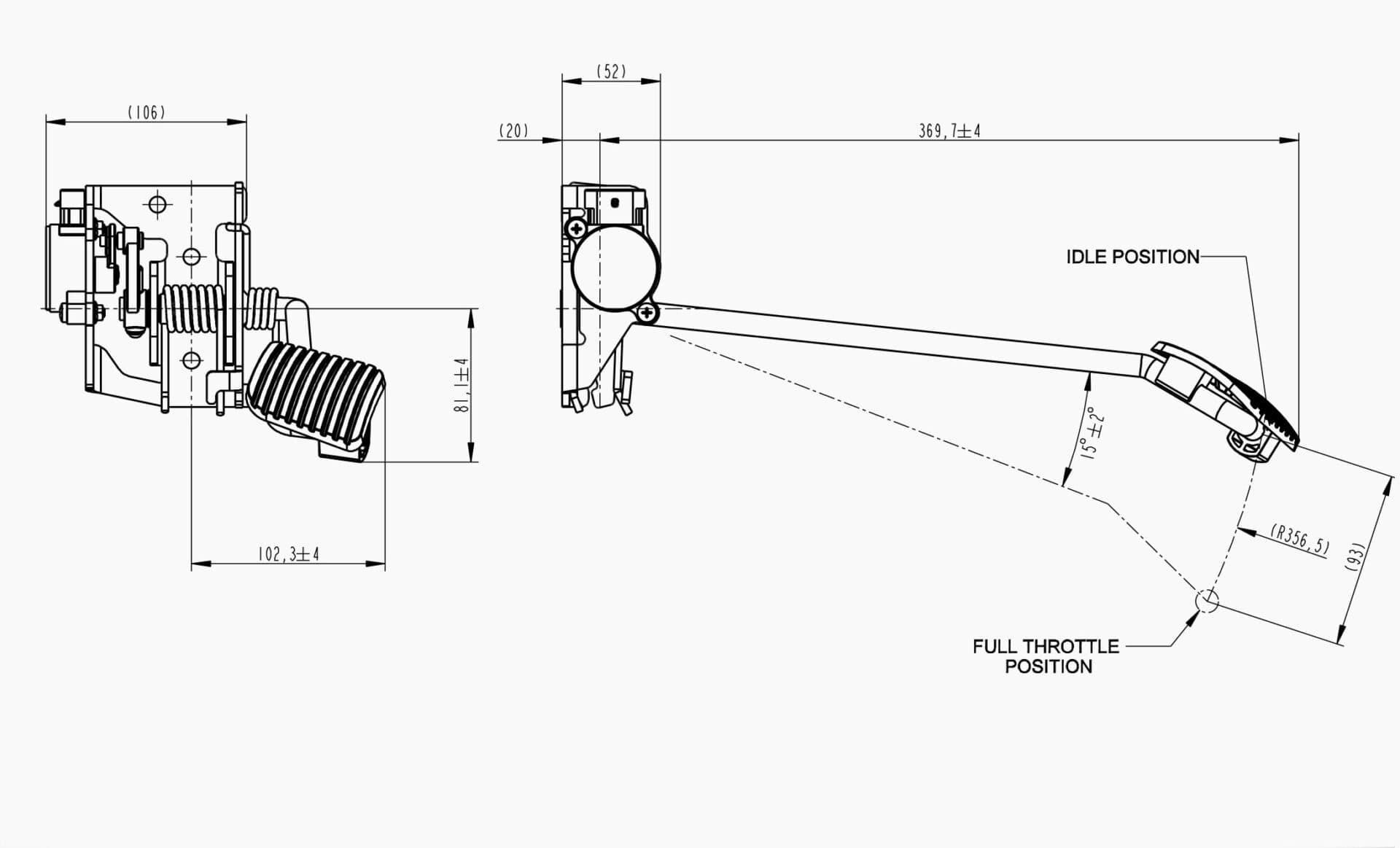

Engineering views
Technical overview
- Type
- Suspended
- Measuring principle
- Contactless
- Supply voltage
- 5V or 8-32V
- Outputs
- Analog, PWM, IVS (high-side / low-side switch)
- Redundancy
- Full redundant double programmable outputs
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 2 million actuations
- Operating temperature
- -40°C … +85°C
- Housing
- Heavy-duty metal case
Module capabilities
- Suspended type for agricultural tractors and off-road vehicles
- Suitable for different engine interfaces
- Contactless measuring principle with full redundant double programmable outputs
- Analog, PWM and IVS output options
- Analog+IVS type: analog with high-side or low-side switch
- Two independent springs
- Different rod types available on request
Order Code
| MO 383T - | X - Option | PXXX Description |
|---|---|---|
| Rod type | X | Customisable (on request) |
| Sensor program | P009 | Dual analog (other programs on request) |
Example: MO 383T - C - P009
Need a custom configuration?
Contact EngineeringTell our engineering team about your machine platform, mounting envelope and required output. We'll propose the right hardware variant, rod/lever option and sensor program.
