MO 378
Rotary Control Lever (60°) · 60° programmable rotary lever with front, sub and opposite mounting
MO 378 is an electronic rotary control lever with a 60° programmable angle at 0.1° resolution. Front, sub and opposite mounting options and contactless full-redundant double-die hall sensing suit it to a wide range of throttle and valve linkages.
- Angle
- 60°
- Output
- CAN / analog / PWM
- Sealing
- IP6K9K
Quick highlights
Performance snapshot
Built for compact 60° rotary control.
- 60° programmable angle at 0.1° resolution

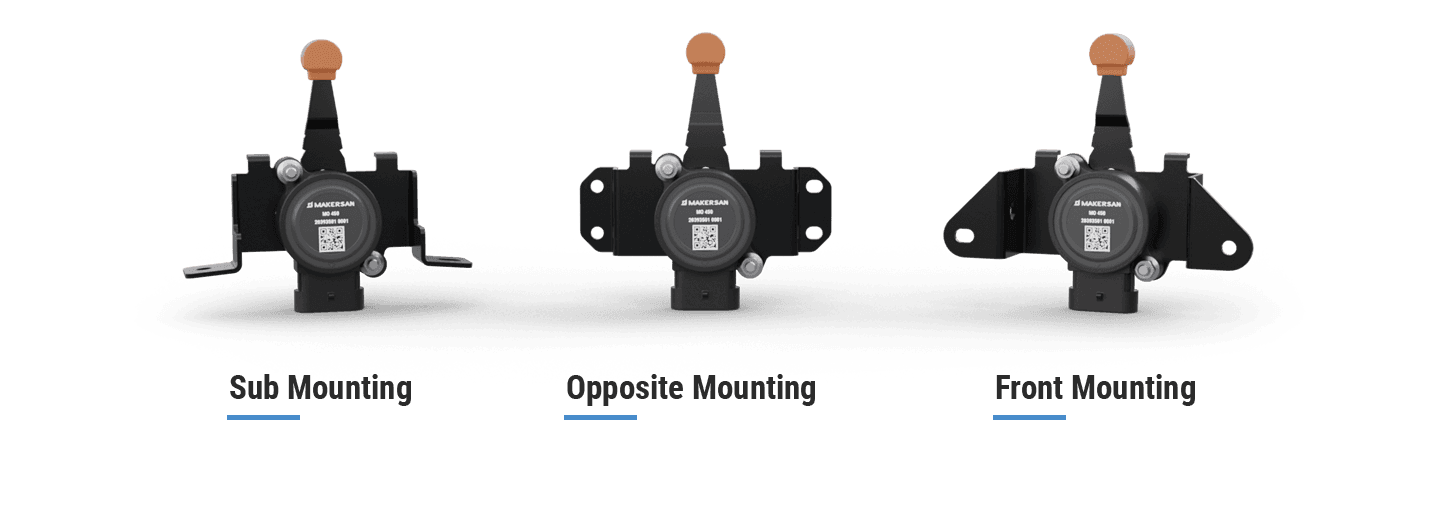

- Front, sub and opposite mounting options
- Single or double full redundant outputs
- CAN (SAE J1939 / CANopen), analog and PWM outputs
- More than 2 million lifetime cycles
- IP6K9K sealed sensor

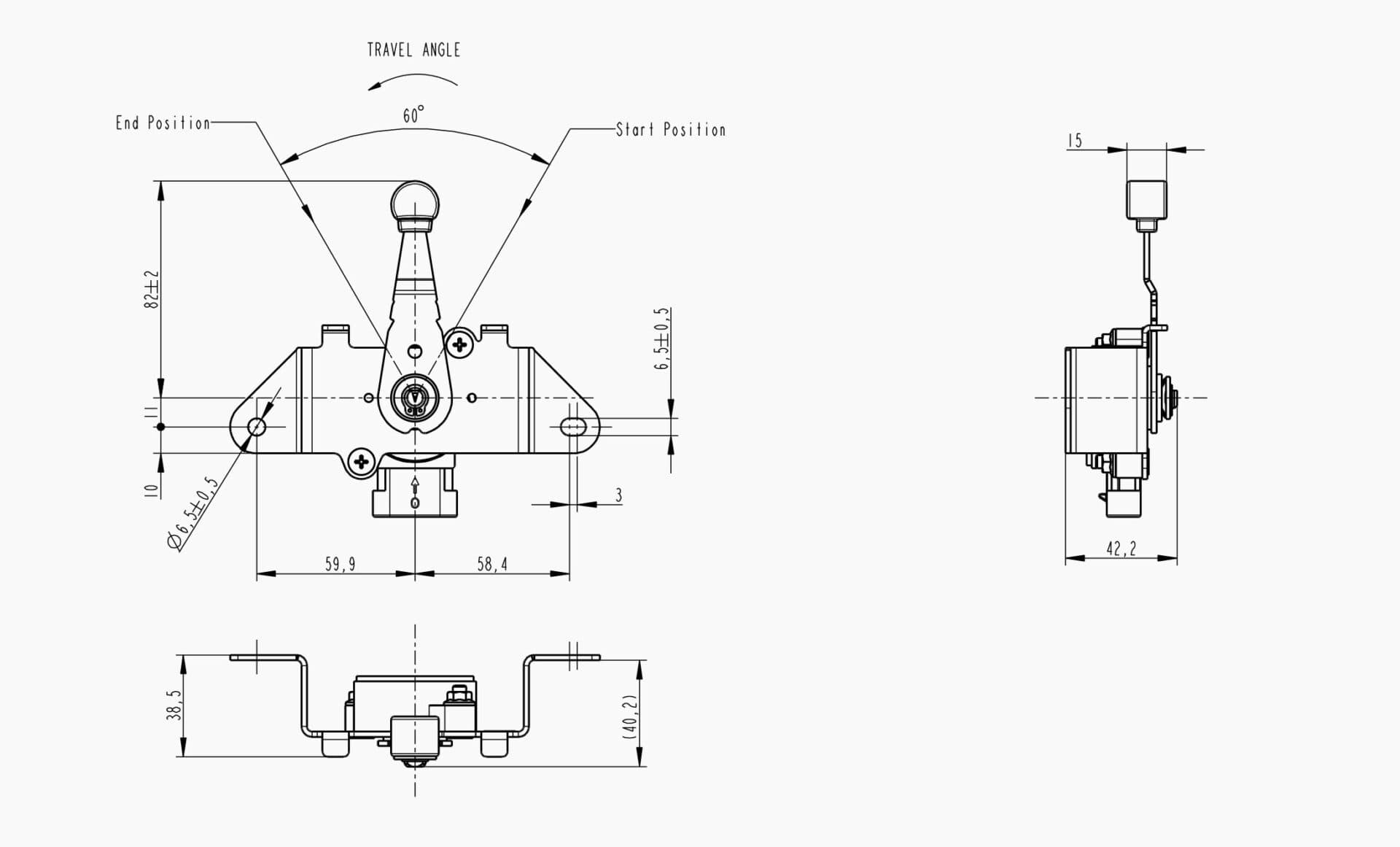

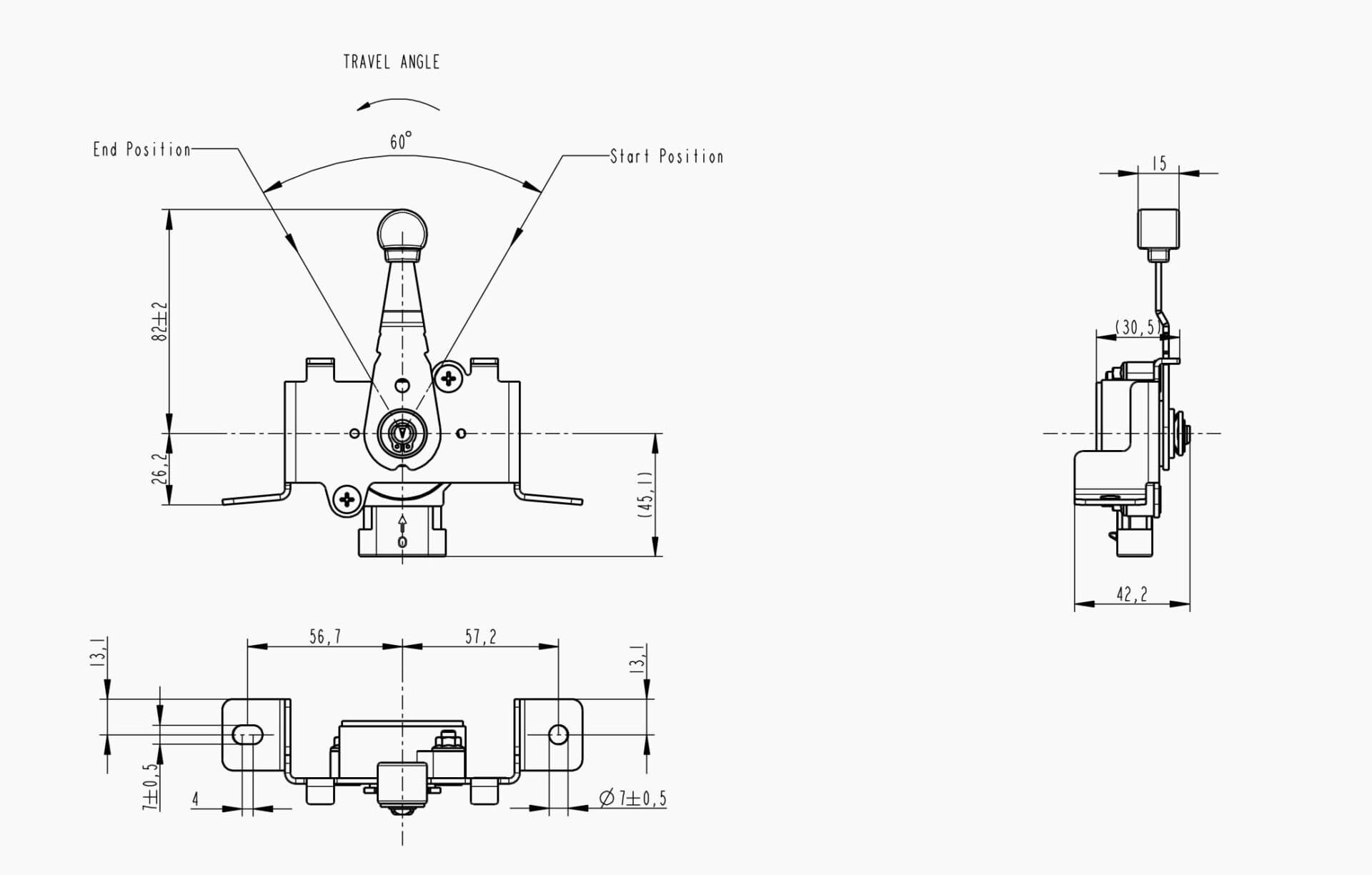

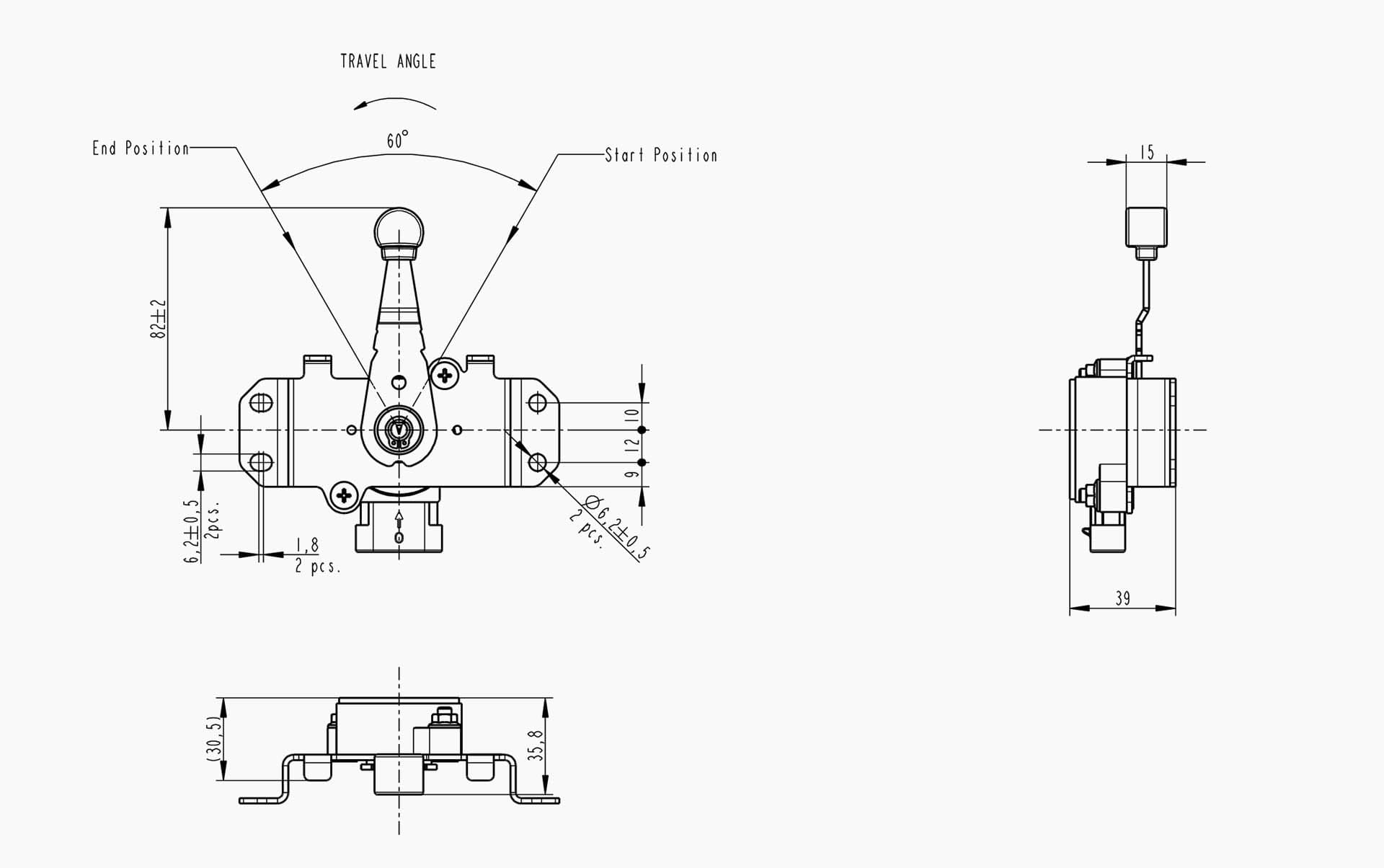

Engineering views
Technical overview
- Type
- Rotary control lever
- Measuring principle
- Contactless full redundant double-die hall
- Programmable angle
- 60° (0.1° resolution)
- Mounting
- Front / sub / opposite
- Supply voltage
- 5V or 8-32V
- Outputs
- Analog (0-5V / 4-20mA / PWM); CAN (SAE J1939 / CANopen)
- Redundancy
- Single or double full redundant
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 2 million cycles
- Operating temperature
- -40°C … +85°C
Module capabilities
- Rotary valve control lever
- 60° programmable angle (0.1° resolution)
- Contactless full redundant double-die hall sensor
- Single or double full redundant programmable output
- Analog type: 0-5V / 4-20mA / PWM
- CAN type: SAE J1939 and CANopen
- Front, sub and opposite mounting options
Order Code
| MO 378 - | X - Option | X Description |
|---|---|---|
| Mounting | 1 | Front |
| Mounting | 2 | Sub |
| Mounting | 3 | Opposite |
| Rod type | 1 | Standard rod |
| Sensor program | P009 | Dual analog (other programs on request) |
Example: MO 378 - 1 - 1 - P009
