M-18 / Pedals & levers
MO 378S
Rotary Control Lever (Grip) · 45° rotary lever with optional grip and double-sided bracket
MO 378S is an electronic rotary control lever with a 45° programmable angle at 0.1° resolution, available without a lever, with a double-sided bracket, or with a grip. Contactless full-redundant double-die hall sensing over CAN, analog or PWM.
- Angle
- 45°
- Output
- CAN / analog / PWM
- Sealing
- IP6K9K
Quick highlights
Performance snapshot
Built for 45° rotary control with grip options.
- 45° programmable angle at 0.1° resolution
- Optional ergonomic grip
- Single or double full redundant outputs
- CAN (SAE J1939 / CANopen), analog and PWM outputs
- More than 2 million lifetime cycles
- IP6K9K sealed sensor

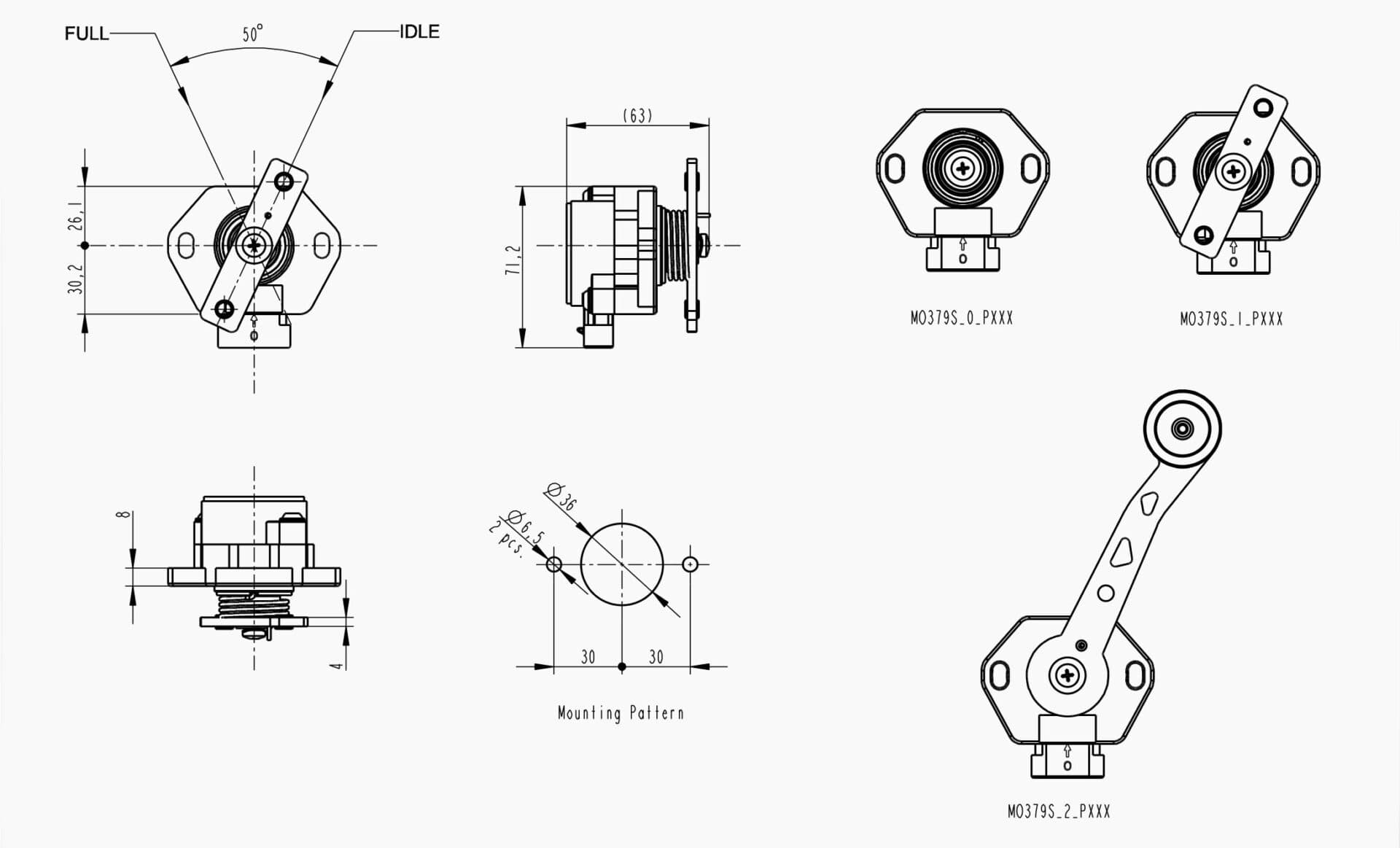

Engineering views
Technical overview
- Type
- Rotary control lever
- Measuring principle
- Contactless full redundant double-die hall
- Programmable angle
- 45° (0.1° resolution)
- Bracket / grip
- Without lever / double-sided / with grip
- Supply voltage
- 5V or 8-32V
- Outputs
- Analog (0-5V / 4-20mA / PWM); CAN (SAE J1939 / CANopen)
- Redundancy
- Single or double full redundant
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 2 million cycles
- Operating temperature
- -40°C … +85°C
Module capabilities
- Rotary valve control lever
- 45° programmable angle (0.1° resolution)
- Contactless full redundant double-die hall sensor
- Single or double full redundant programmable output
- Analog type: 0-5V / 4-20mA / PWM
- CAN type: SAE J1939 and CANopen

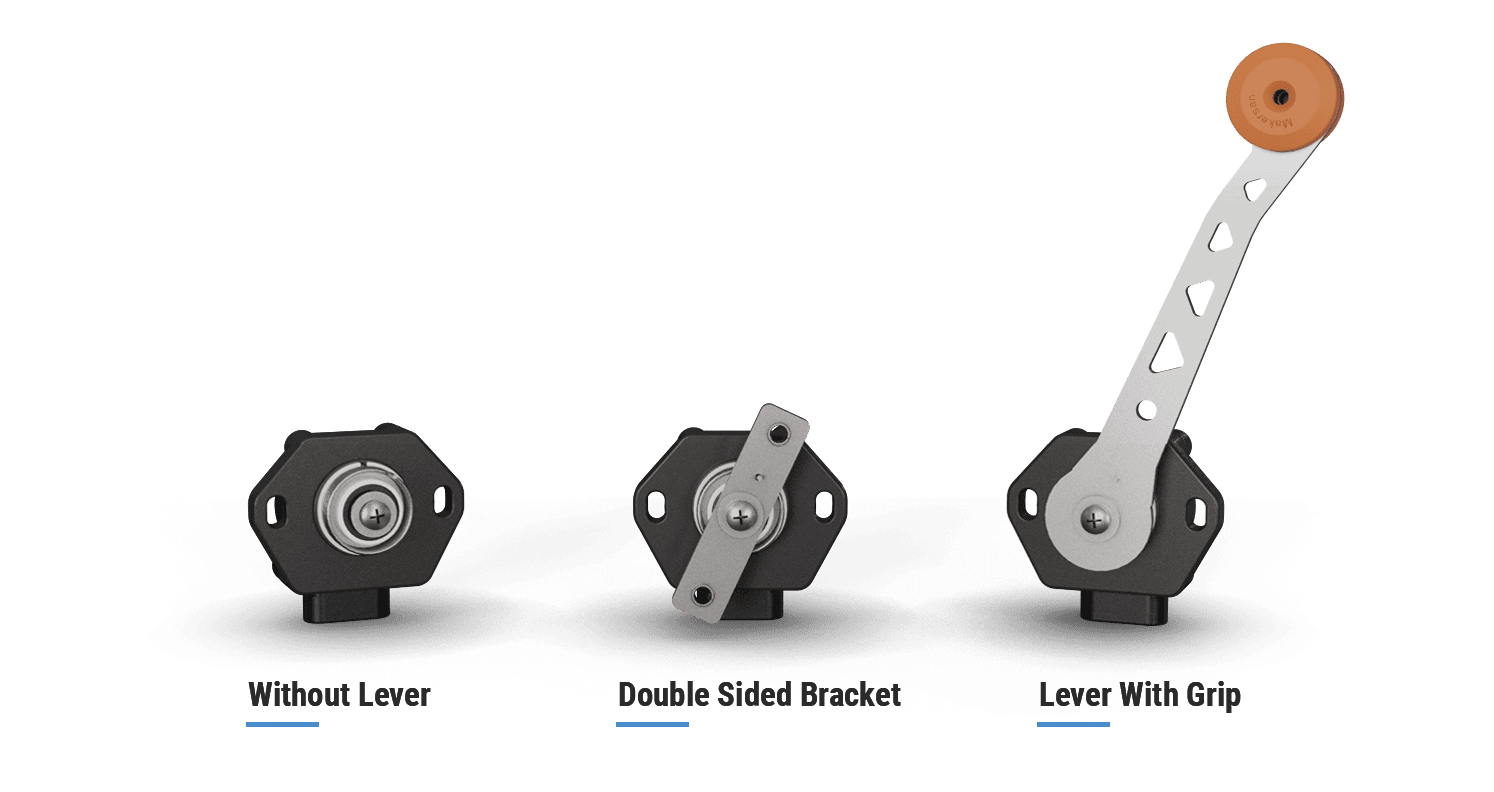

- Without lever, double-sided bracket or with grip
Order Code
| MO 378S - | X - Option | PXXX Description |
|---|---|---|
| Bracket | 0 | Without bracket |
| Bracket | 1 | Double-sided |
| Bracket | 2 | With grip |
| Sensor program | P009 | Dual analog (other programs on request) |
Example: MO 378S - 2 - P009
Need a custom configuration?
Contact EngineeringTell our engineering team about your machine platform, mounting envelope and required output. We'll propose the right hardware variant, rod/lever option and sensor program.
