MO 126
Suspended Accelerator Pedal · Heavy-duty suspended throttle pedal with contactless hall sensing
MO 126 is a heavy-duty suspended accelerator pedal for commercial and off-road vehicles. A contactless measuring principle and two independent return springs deliver a long, maintenance-free service life, while full redundant programmable outputs adapt the pedal to different engine interfaces.
- Mounting
- Suspended
- Output
- Dual analog / PWM / IVS
- Sealing
- IP6K9K
Quick highlights
Performance snapshot
Built for heavy-duty suspended throttle control.
- Contactless measuring principle with no wear surfaces
- Full redundant double programmable outputs
- 19° working angle with two independent return springs
- Virtual kickdown effect option
- A and D rod-type options
- More than 2 million actuations

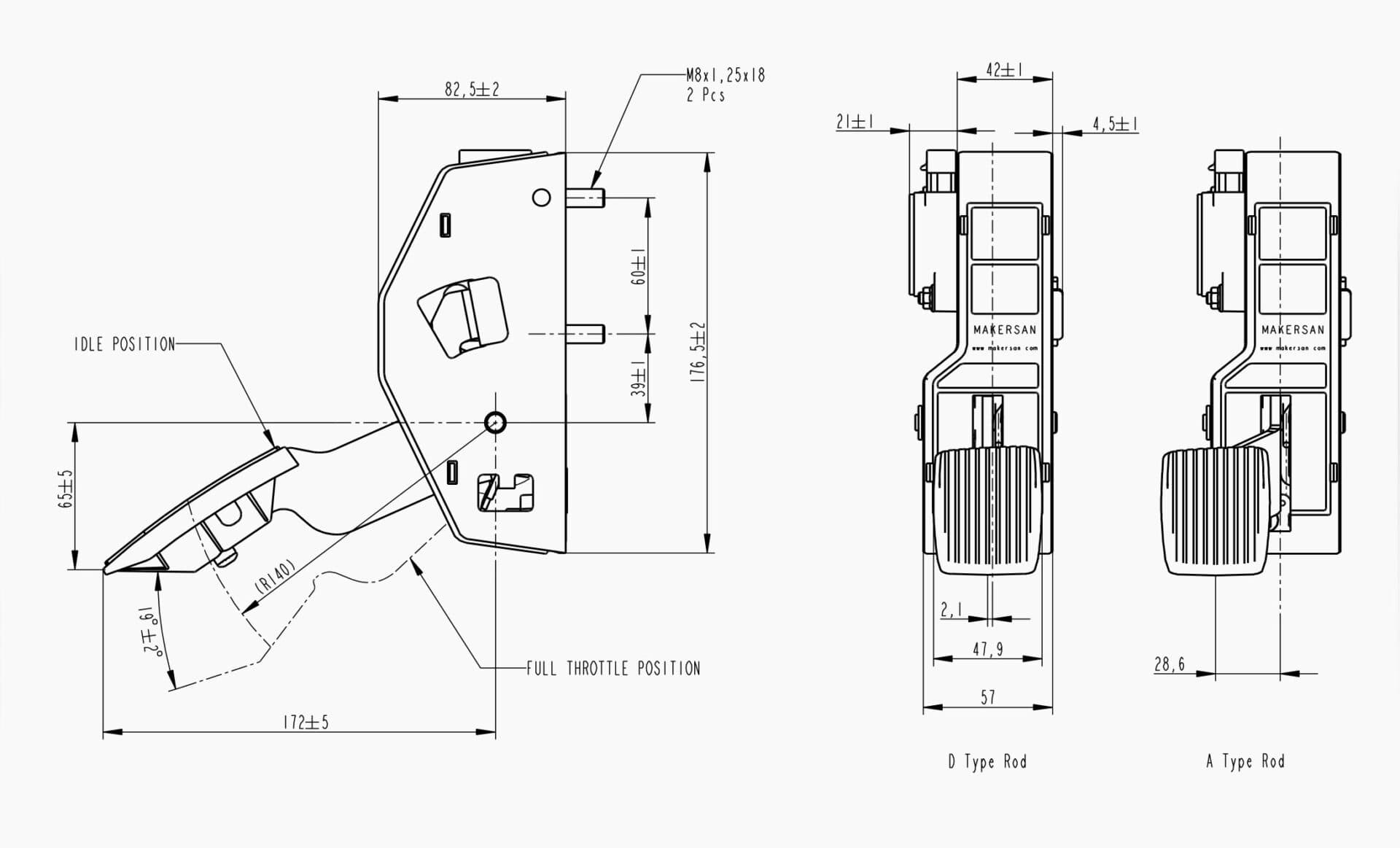

Engineering views
Technical overview
- Type
- Suspended
- Measuring principle
- Contactless
- Working angle
- 19°
- Supply voltage
- 5V or 8-32V
- Outputs
- Dual analog (0-5V / PWM); Analog+IVS (high-side / low-side switch)
- Redundancy
- Full redundant double programmable outputs
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 2 million actuations
- Operating temperature
- -40°C … +85°C
- Housing
- Heavy-duty metal case
- Weight
- 1.3 kg
Module capabilities
- Suspended type for commercial and off-road vehicles
- Suitable for different engine interfaces
- Contactless measuring principle with full redundant double programmable outputs
- Dual analog type: 0-5V / PWM
- Analog+IVS type: analog with high-side or low-side switch
- Virtual kickdown effect option
- Two independent springs

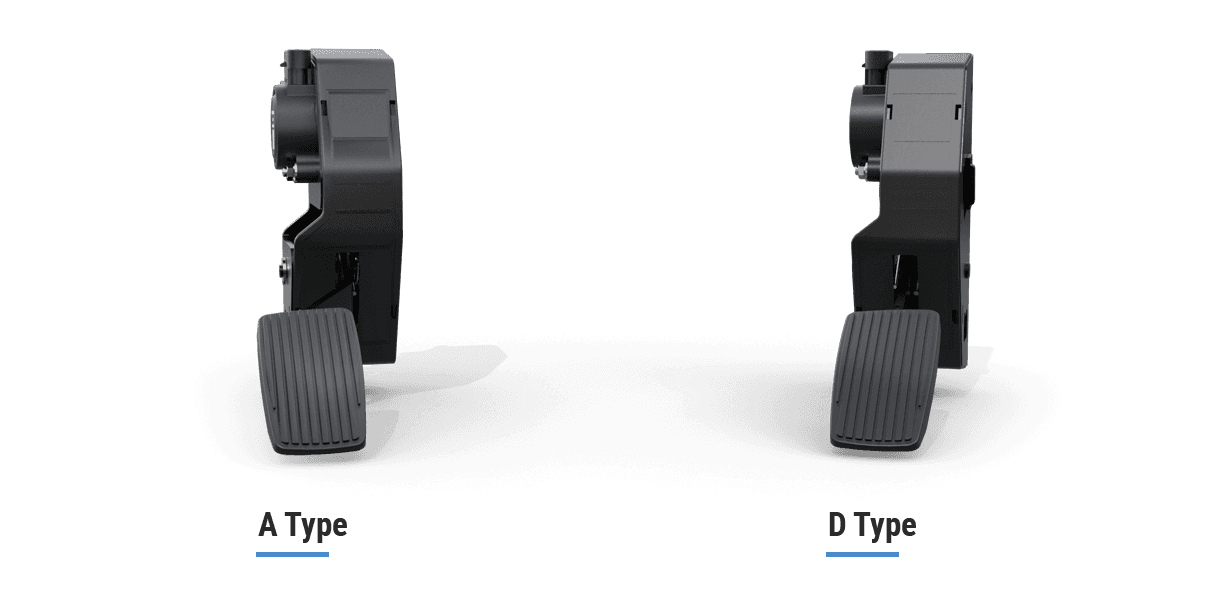

- A and D rod-type options
Order Code
| MO 126 - | X - Option | X Description |
|---|---|---|
| Rod type | A | A-type rod |
| Rod type | D | D-type rod |
| Kickdown | 0 | Without kickdown |
| Kickdown | 1 | With virtual kickdown |
| Sensor program | P009 | Dual analog (other programs on request) |
Example: MO 126 - A - 1 - P009
