MO 375A
Rotary Hand Throttle · Rotary valve control with detents and friction hold
MO 375A is an electronic rotary hand throttle / valve control with a 100° working angle, 10-stage detents and 100° friction hold. The contactless sensor offers single or double full-redundant programmable outputs over CAN, analog or PWM.
- Angle
- 100° + detents
- Output
- CAN / analog / PWM
- Sealing
- IP6K9K
Quick highlights
Performance snapshot
Built for rotary hand-throttle and valve control.
- 100° working angle with 10-stage detents
- 100° friction hold option
- Single or double full redundant outputs
- CAN (SAE J1939 / CANopen), analog and PWM outputs
- More than 2 million lifetime cycles
- IP6K9K sealed sensor

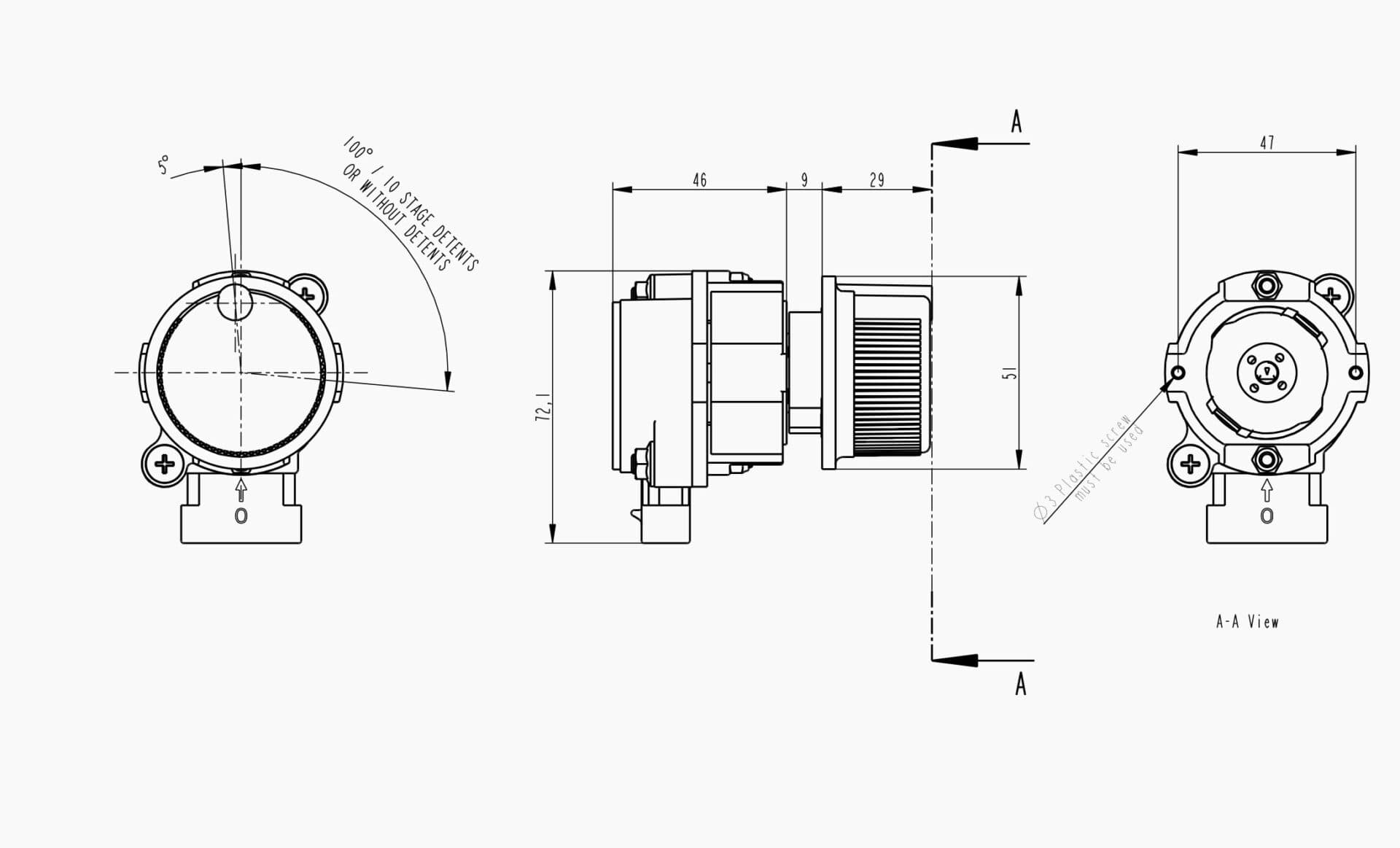

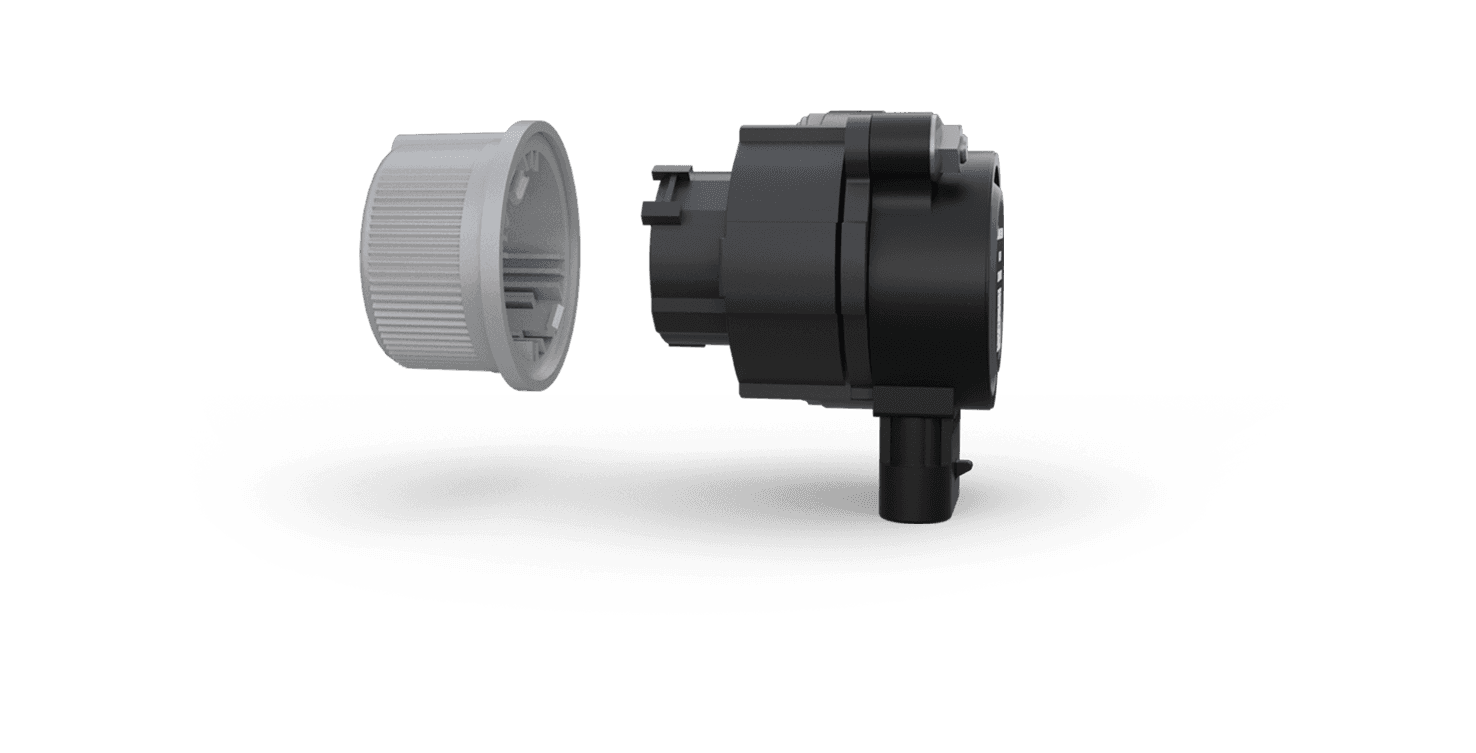

Engineering views
Technical overview
- Type
- Rotary hand throttle / valve control
- Measuring principle
- Contactless
- Working angle
- 100°
- Detents
- 10-stage detents
- Friction hold
- 100°
- Supply voltage
- 5V or 8-32V
- Outputs
- Analog (0-5V / 4-20mA / PWM); CAN (SAE J1939 / CANopen)
- Redundancy
- Single or double full redundant
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 2 million cycles
- Operating temperature
- -40°C … +85°C
Module capabilities
- Rotary hand throttle / valve control
- 100° working angle with 10-stage detents and 100° friction hold
- Contactless measuring sensor
- Single or double full redundant programmable output
- Analog type: 0-5V / 4-20mA / PWM
- Analog+IVS type: analog with high-side or low-side switch
- CAN type: SAE J1939 and CANopen
- Knob colour options: black or grey
Order Code
| MO 375A - | X - Option | X Description |
|---|---|---|
| Detents | Y | With 10 detents |
| Detents | N | Without detent |
| Knob | 0 | Without knob |
| Knob | 1 | Black |
| Knob | 2 | Grey |
| Sensor program | P009 | Dual analog (other programs on request) |
Example: MO 375A - Y - 1 - P009
