MO 378N
Rotary Control Lever (High-Cycle) · 45° rotary lever rated for over 5 million cycles
MO 378N is an electronic rotary control lever with a 45° programmable angle at 0.1° resolution, rated for more than 5 million lifetime cycles. Contactless full-redundant double-die hall sensing with CAN, analog and IVS outputs.
- Angle
- 45°
- Cycles
- 5M+
- Output
- CAN / analog / PWM
Quick highlights
Performance snapshot
Built for high-cycle 45° rotary control.
- More than 5 million lifetime cycles
- 45° programmable angle at 0.1° resolution
- Single or double full redundant outputs
- CAN (SAE J1939 / CANopen), analog and PWM outputs

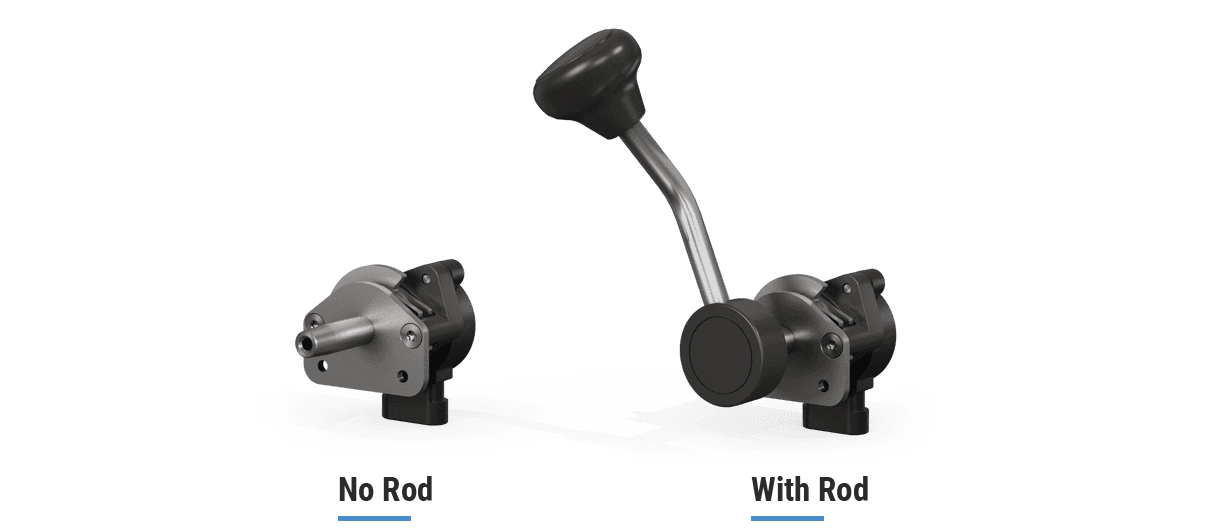

- No-rod or with-rod lever options
- IP6K9K sealed sensor

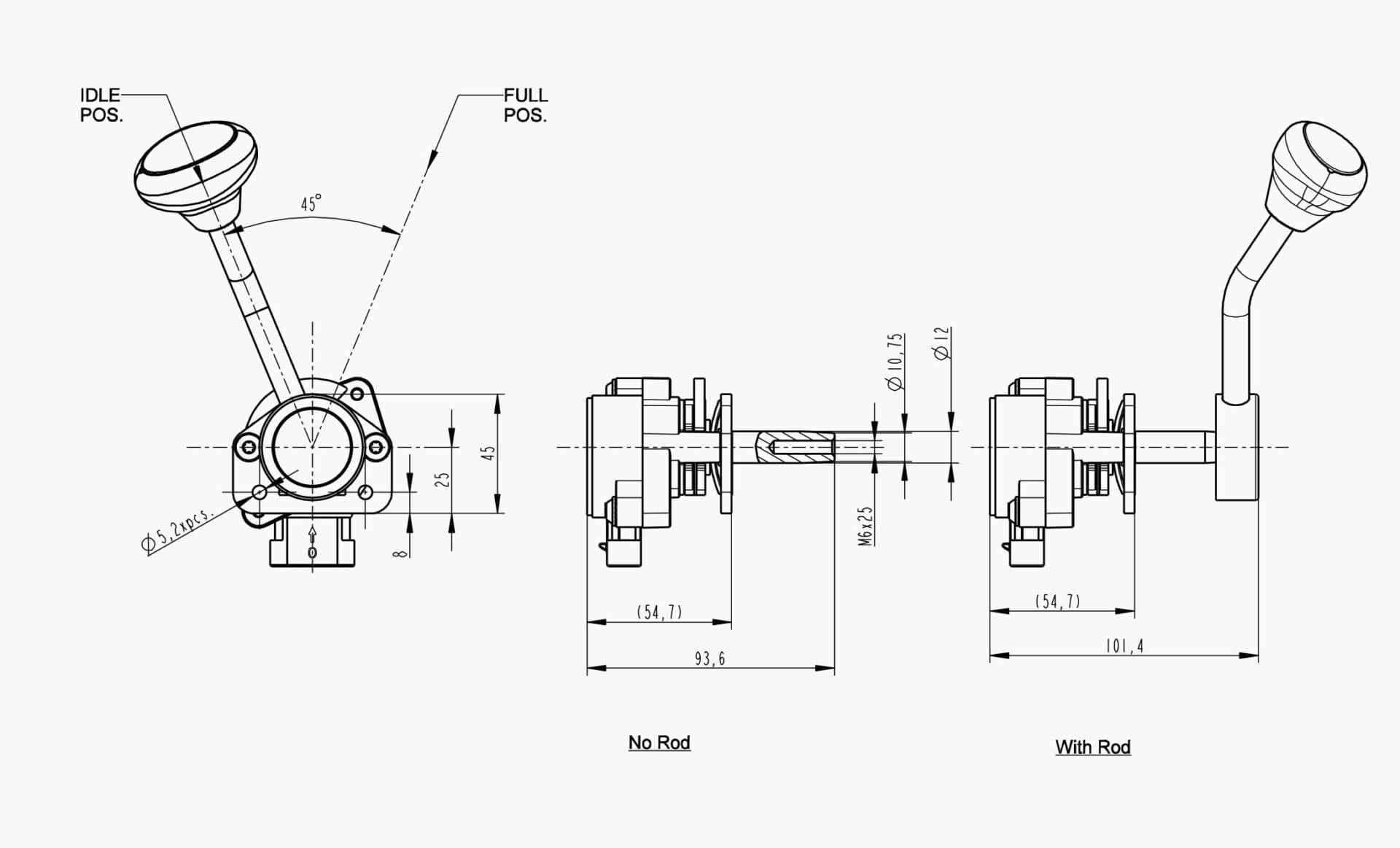

Engineering views
Technical overview
- Type
- Rotary control lever
- Measuring principle
- Contactless full redundant double-die hall
- Programmable angle
- 45° (0.1° resolution)
- Supply voltage
- 5V or 8-32V
- Outputs
- Analog (0-5V / 4-20mA / PWM); Analog+IVS; CAN (SAE J1939 / CANopen)
- Redundancy
- Single or double full redundant
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 5 million cycles
- Operating temperature
- -40°C … +85°C
Module capabilities
- Rotary valve control lever
- 45° programmable angle (0.1° resolution)
- Contactless full redundant double-die hall sensor
- Single or double full redundant programmable output
- Analog type: 0-5V / 4-20mA / PWM
- Analog+IVS type: analog with high-side or low-side switch
- CAN type: SAE J1939 and CANopen
- Rated for more than 5 million lifetime cycles
Order Code
| MO 378N - | X - Option | X Description |
|---|---|---|
| Bracket | 1 | Standard |
| Lever type | 0 | No rod |
| Lever type | 1 | With rod |
| Sensor program | P009 | Dual analog (other programs on request) |
Example: MO 378N - 1 - 1 - P009
