M-02 / Pedals & levers
MO 129
Floor Accelerator Pedal · Floor-mount throttle pedal with selectable treadle angle
MO 129 is a floor-type accelerator pedal for commercial and off-road vehicles, available in long, short and long-wide treadle variants with four initial treadle angles. Contactless sensing and full redundant programmable outputs keep the signal clean across the working range.
- Mounting
- Floor
- Treadle
- L / S / LW
- Sealing
- IP6K9K
Quick highlights
Performance snapshot
Built for floor-mount throttle control with a tunable treadle.

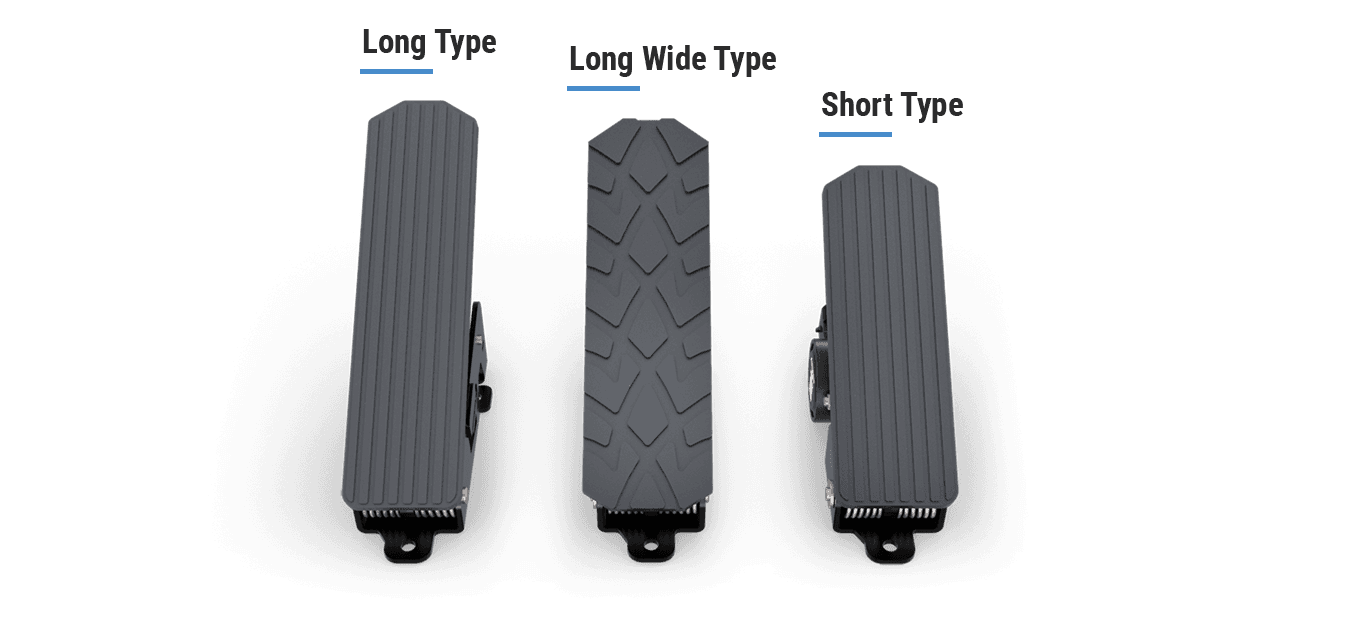

- Long, short and long-wide treadle variants

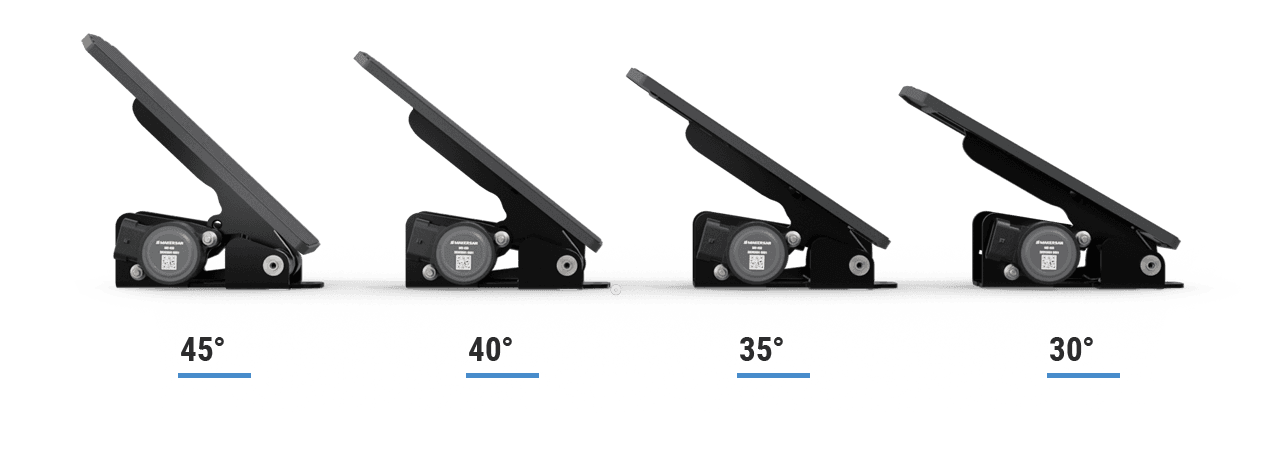

- Selectable initial treadle angle: 30° / 35° / 40° / 45°
- Full redundant double programmable outputs
- Virtual kickdown effect option
- More than 2 million actuations
- IP6K9K sealed sensor

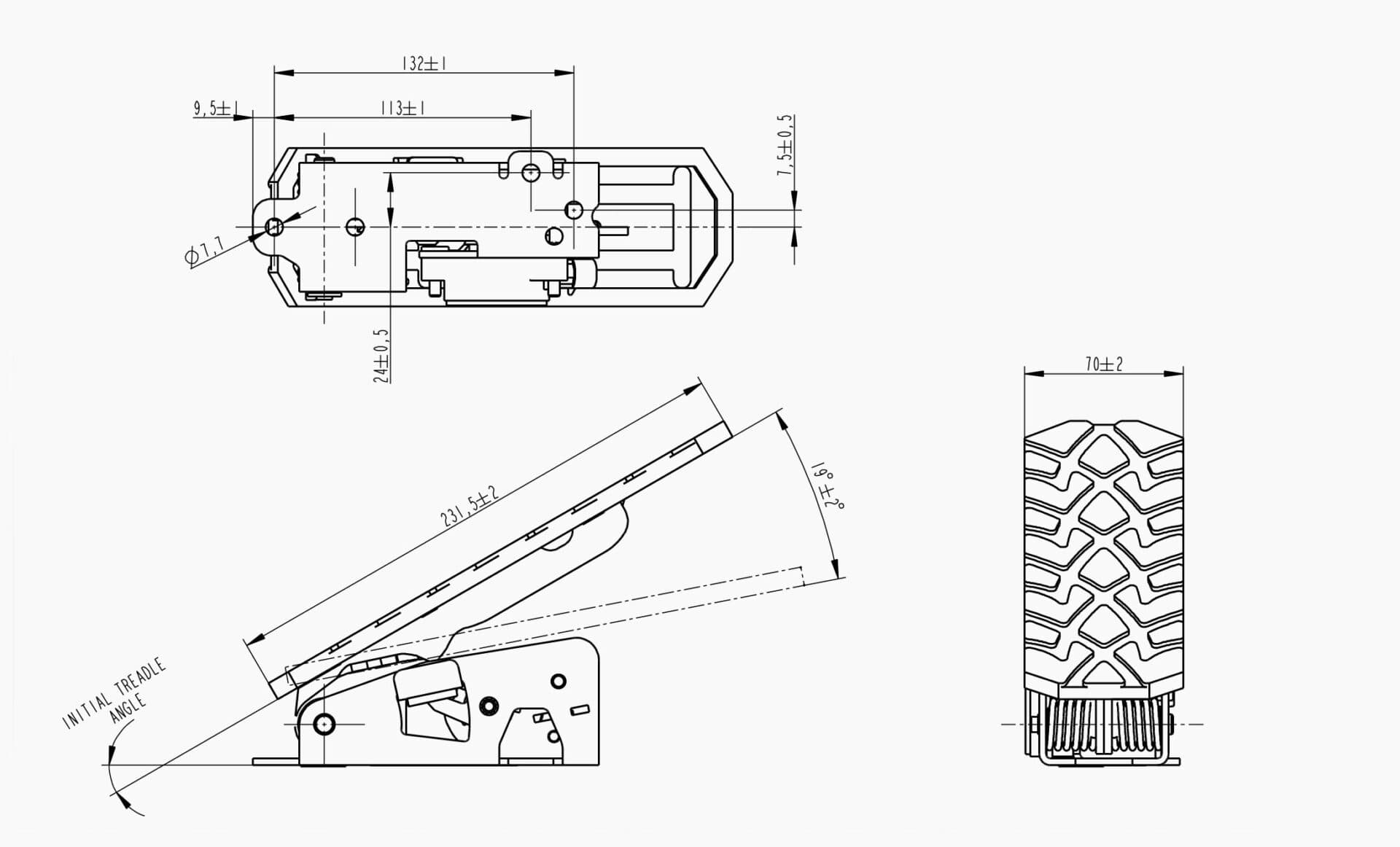

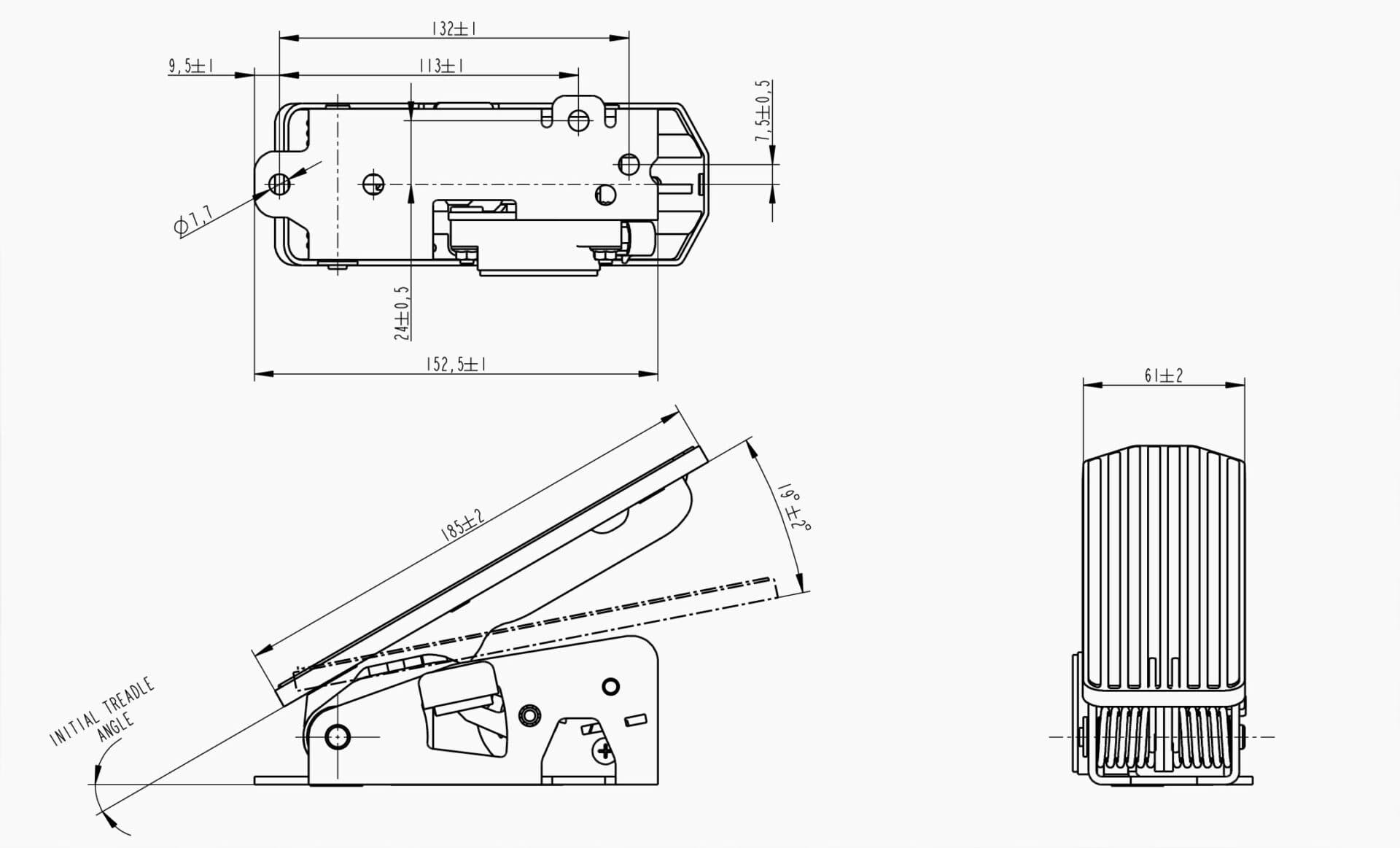

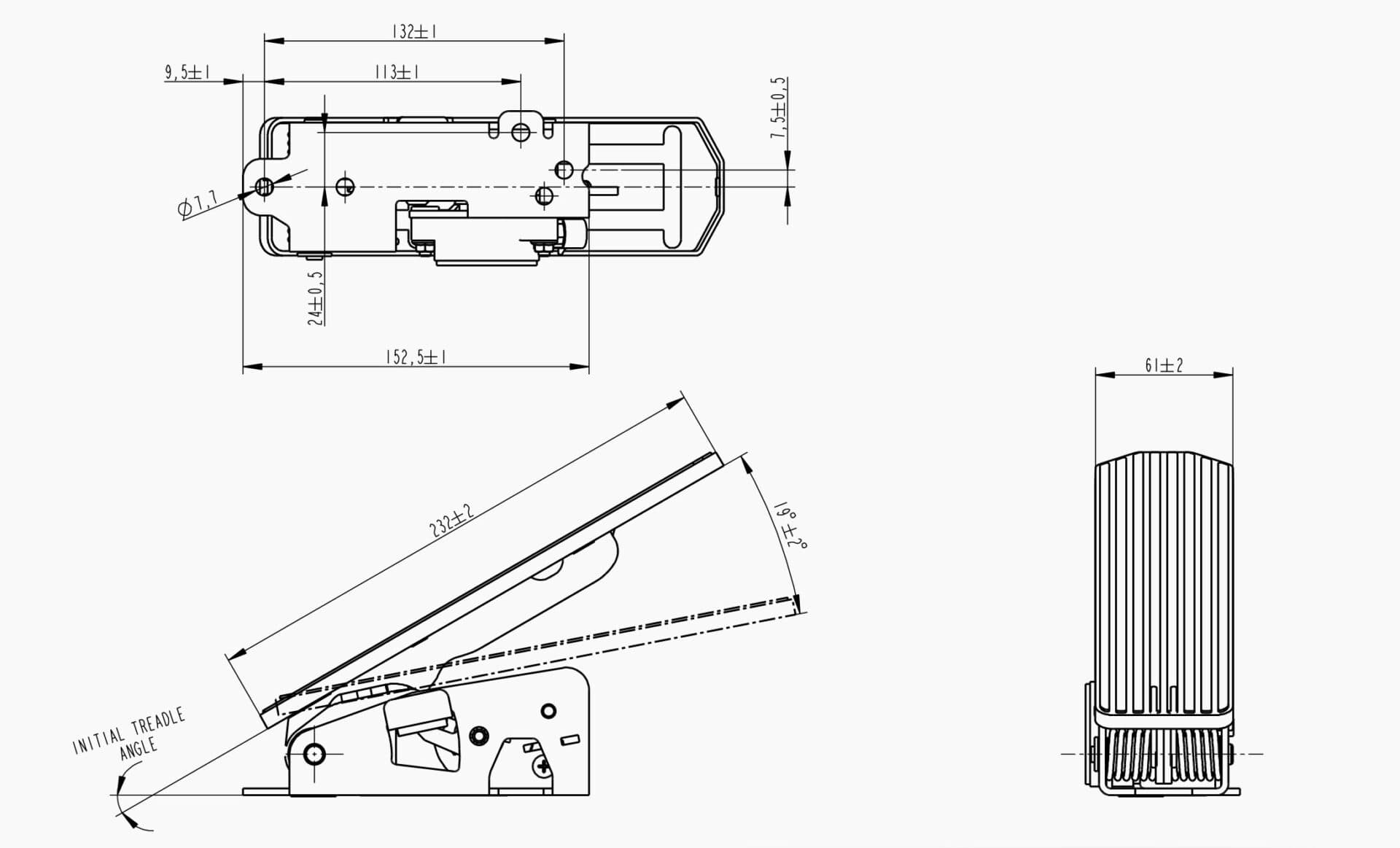

Engineering views
Technical overview
- Type
- Floor
- Measuring principle
- Contactless
- Treadle angle
- 30° / 35° / 40° / 45° (selectable)
- Supply voltage
- 5V or 8-32V
- Outputs
- Dual analog (0-5V / PWM); Analog+IVS (high-side / low-side switch)
- Redundancy
- Full redundant double programmable outputs
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 2 million actuations
- Operating temperature
- -40°C … +85°C
- Housing
- Heavy-duty metal case
- Weight
- 1.05 kg
Module capabilities
- Floor type for commercial and off-road vehicles
- Suitable for different engine interfaces
- Contactless measuring principle with full redundant double programmable outputs
- Dual analog type: 0-5V / PWM
- Analog+IVS type: analog with high-side or low-side switch
- Virtual kickdown effect option
- Two independent springs
- Long (L), short (S) and long-wide (LW) treadle types
Order Code
| MO 129X - | X - Option | X Description |
|---|---|---|
| Treadle type | L | Long |
| Treadle type | S | Short |
| Treadle type | LW | Long wide |
| Initial angle | 1 | 30° |
| Initial angle | 2 | 35° |
| Initial angle | 3 | 40° |
| Initial angle | 4 | 45° |
| Kickdown | 0 | Without kickdown |
| Kickdown | 1 | With virtual kickdown |
| Sensor program | P009 | Dual analog (other programs on request) |
Example: MO 129L - 1 - 0 - P009
