MO 370
Suspended Accelerator Pedal (Polymer) · Lightweight suspended pedal in reinforced polyamide
MO 370 is a lightweight suspended accelerator pedal in a 30% glass-fibre reinforced polyamide case, for passenger, commercial and off-road vehicles. It offers single- or double-sensor configurations with full redundant programmable outputs.
- Mounting
- Suspended
- Output
- Dual analog / IVS
- Sealing
- IP6K9K
Quick highlights
Performance snapshot
Built for lightweight suspended throttle control.
- Lightweight reinforced polyamide construction (0.4 kg)
- Double sensor (4 outputs) or single-sensor configurations
- Full redundant double programmable outputs
- Virtual kickdown effect option
- More than 2 million actuations
- IP6K9K sealed sensor

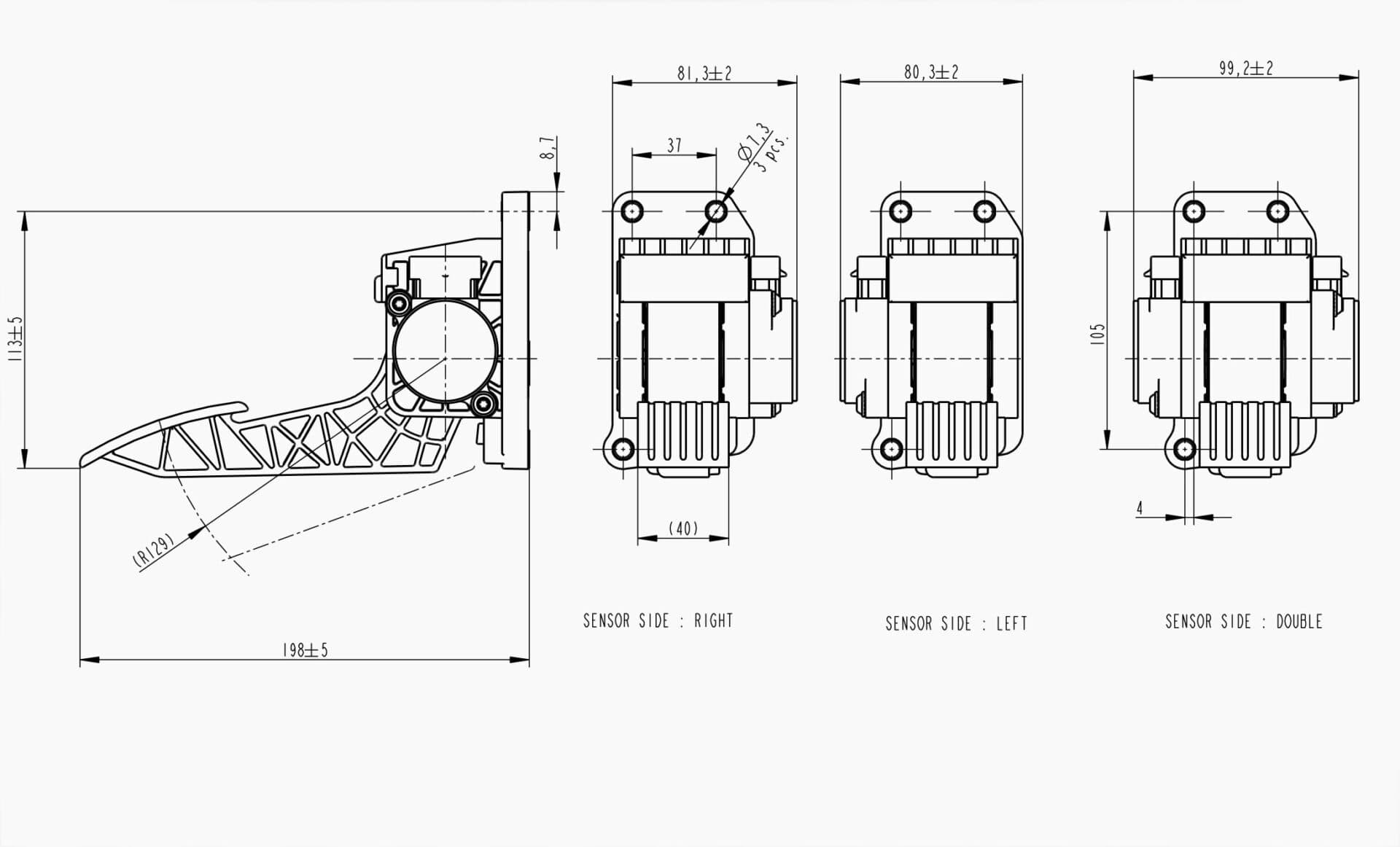

Engineering views
Technical overview
- Type
- Suspended
- Measuring principle
- Contactless
- Supply voltage
- 5V or 8-32V
- Outputs
- Dual analog (0-5V / PWM); Analog+IVS (high-side / low-side switch)

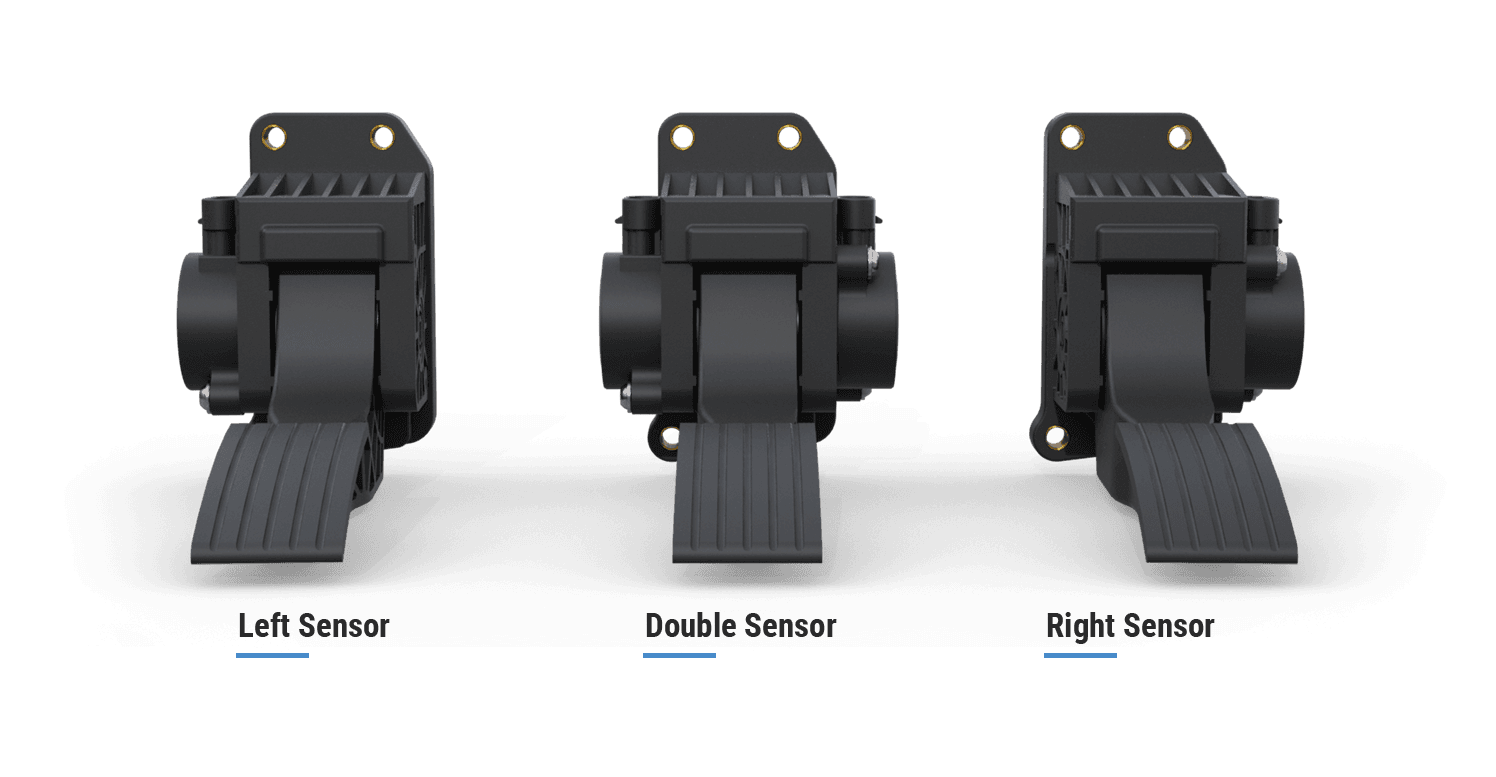

- Sensor configuration
- Double (4 outputs) or single left/right (2 outputs)
- Redundancy
- Full redundant double programmable outputs
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 2 million actuations
- Operating temperature
- -40°C … +85°C
- Housing
- 30% GF reinforced polyamide
- Weight
- 0.4 kg
Module capabilities
- Suspended type for passenger, commercial and off-road vehicles
- Lightweight 30% GF reinforced polyamide case
- Contactless measuring principle with full redundant double programmable outputs
- Dual analog type: 0-5V / PWM
- Analog+IVS type: analog with high-side or low-side switch
- Double sensor (4 outputs) or single sensor left/right (2 outputs)
- Virtual kickdown effect option
Order Code
| MO 370 - | A - Option | X Description |
|---|---|---|
| Kickdown | 0 | Without kickdown |
| Kickdown | 1 | With virtual kickdown |
| Sensor side | L | Left |
| Sensor side | R | Right |
| Sensor side | D | Double |
| Sensor program | P009 | Dual analog (other programs on request) |
Example: MO 370 - A - 1 - D - P009
