M-14 / Pedals & levers
MO 376
Rotary Control Lever · 90°/180° programmable rotary lever with button or handle actuator
MO 376 is an electronic rotary control lever with a 90° or 180° programmable angle at 0.1° resolution. Available as a button (MO 376A) or handle (MO 376C) actuator, with contactless full-redundant double-die hall sensing.
- Angle
- 90° / 180°
- Output
- CAN / analog / PWM
- Sealing
- IP6K9K
Quick highlights
Performance snapshot
Built for programmable rotary valve and throttle control.
- 90° or 180° programmable angle at 0.1° resolution
- Button or handle actuator variants
- Single or double full redundant outputs
- CAN (SAE J1939 / CANopen), analog and PWM outputs
- Detent options: 0, 1 or 3 detents
- More than 2 million lifetime cycles

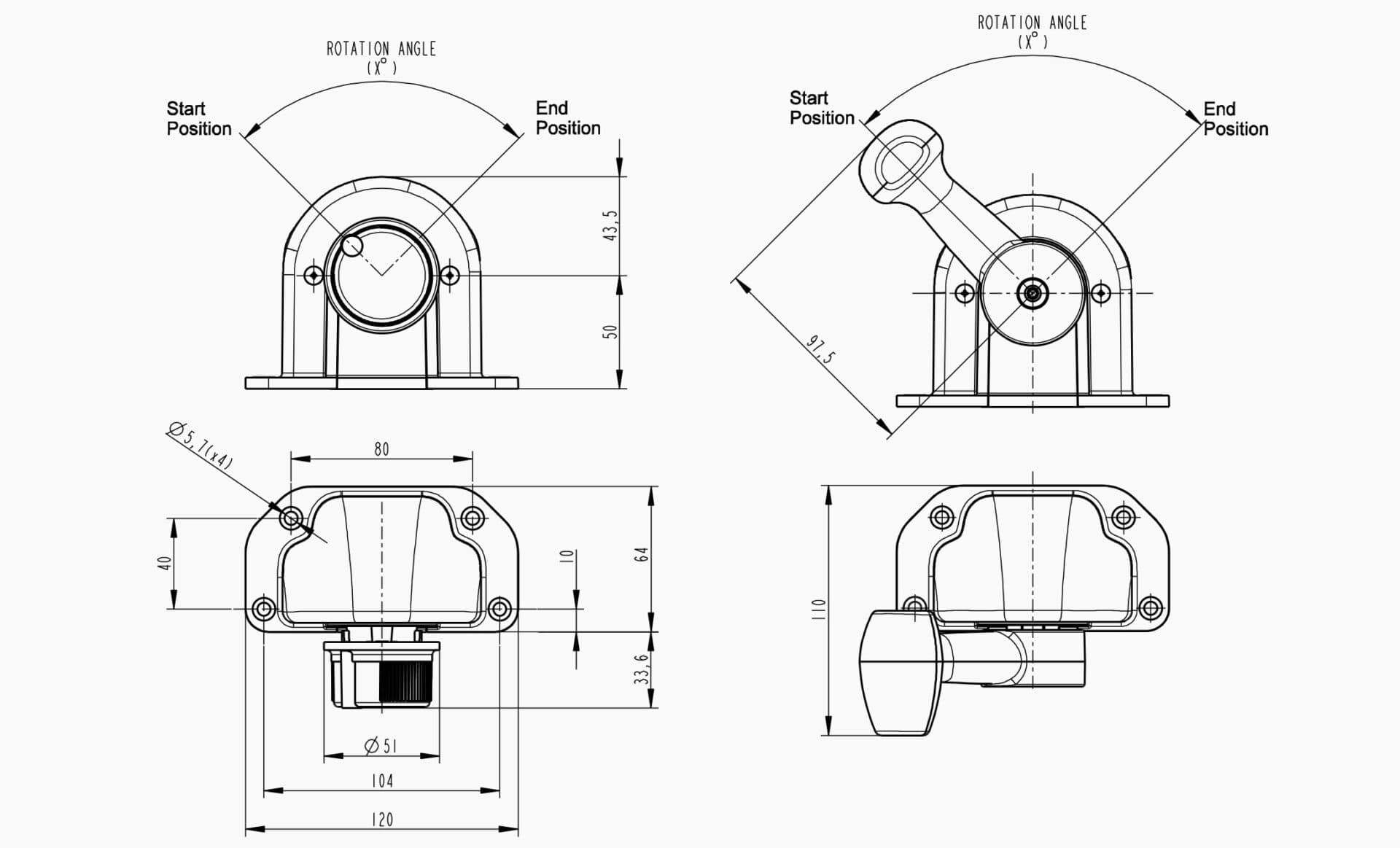

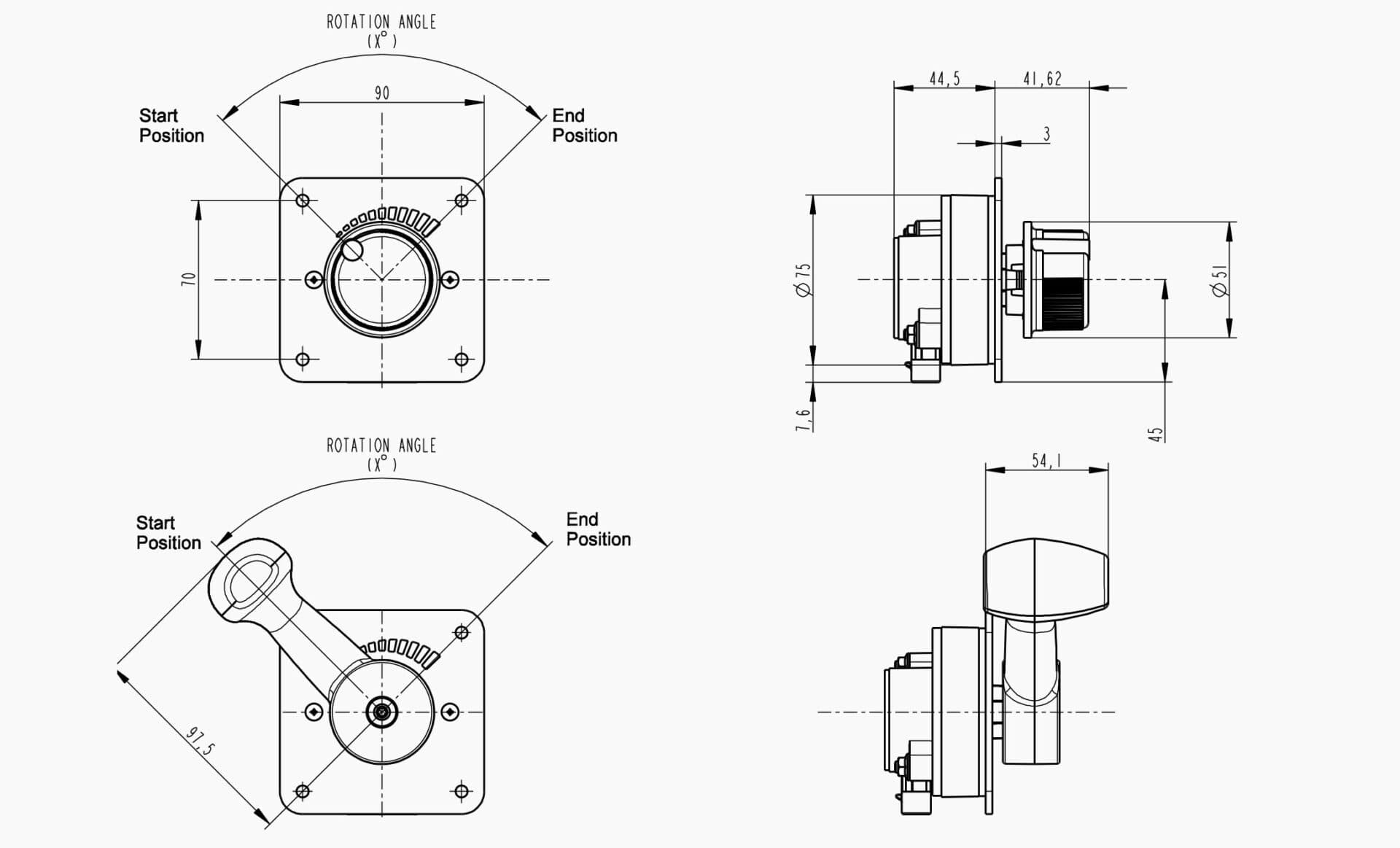

Engineering views
Technical overview
- Type
- Rotary control lever
- Measuring principle
- Contactless full redundant double-die hall
- Programmable angle
- 90° or 180° (0.1° resolution)
- Actuator
- Button (376A) or handle (376C)
- Detents
- 0, 1 or 3 detents
- Supply voltage
- 5V or 8-32V
- Outputs
- Analog (0-5V / 4-20mA / PWM); CAN (SAE J1939 / CANopen)
- Redundancy
- Single or double full redundant
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 2 million cycles
- Operating temperature
- -40°C … +85°C
Module capabilities
- Rotary valve control lever
- 90° or 180° programmable angle (0.1° resolution)
- Contactless full redundant double-die hall sensor
- Single or double full redundant programmable output
- Analog type: 0-5V / 4-20mA / PWM
- CAN type: SAE J1939 and CANopen

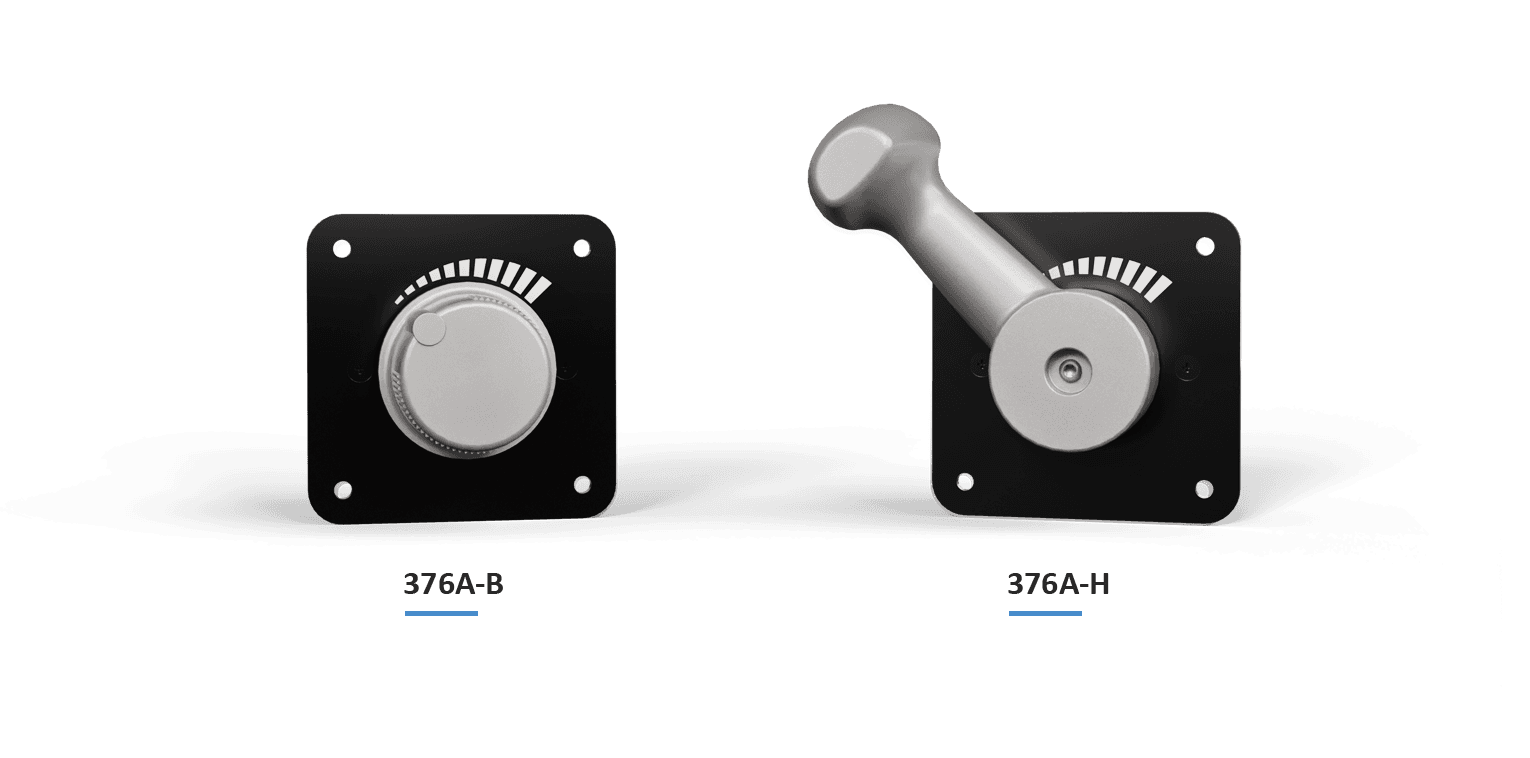

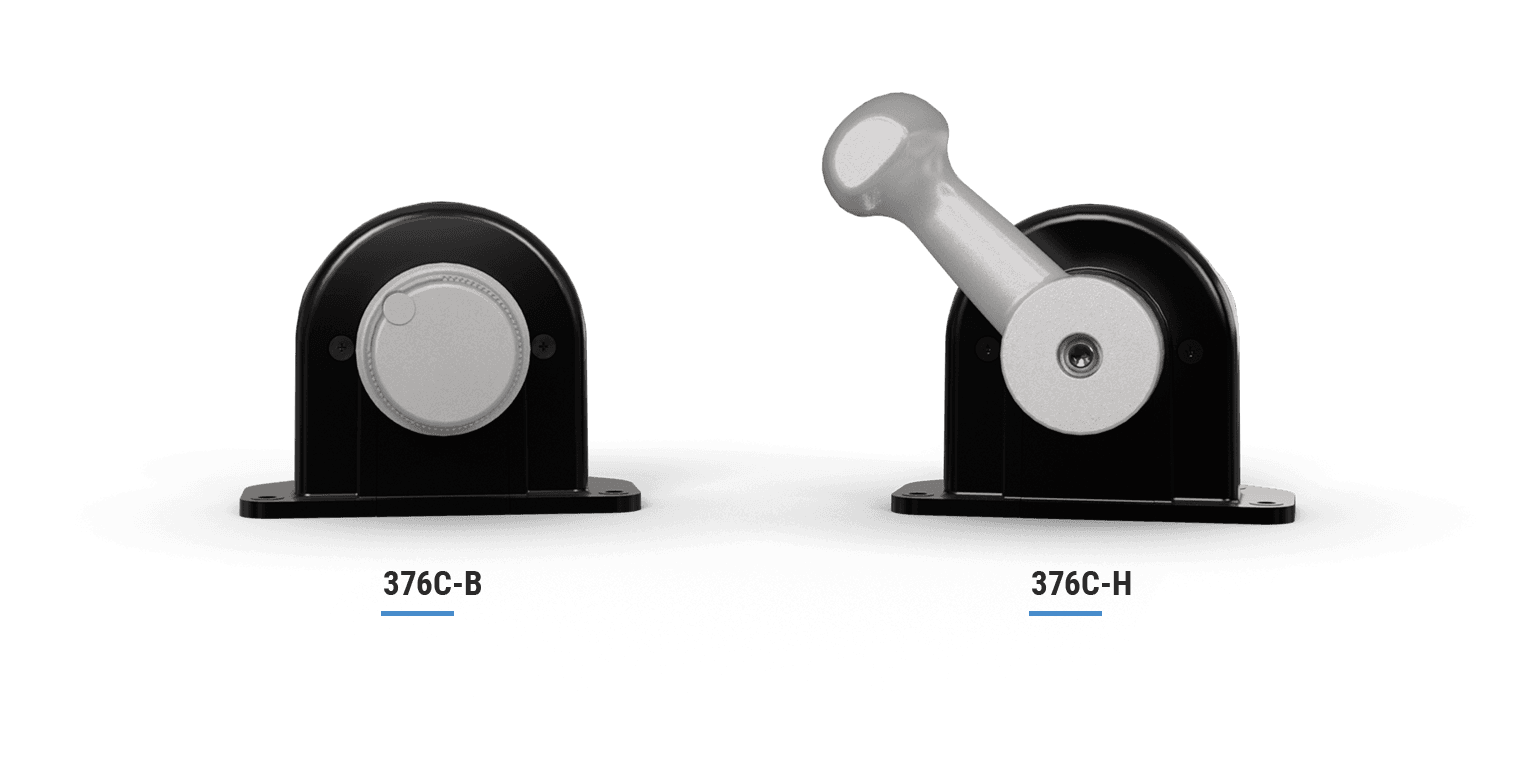

- Button (MO 376A) or handle (MO 376C) actuator
- Knob options: black, grey or orange
Order Code
| MO 376X - | X - Option | X Description |
|---|---|---|
| Actuator | B | Button |
| Actuator | H | Handle |
| Rotation angle | 1 / 2 / 3 / 5 / 6 | Programmable |
| Knob type | 1 | Black |
| Knob type | 2 | Grey |
| Knob type | 3 | Orange |
| Sensor program | P009 | Dual analog (other programs on request) |
Example: MO 376A - B - 1 - 1 - P009
