M-07 / Pedals & levers
MO 382
Tractor Pedal · Suspended or underfloor tractor throttle pedal, left or right side
MO 382 is a tractor accelerator pedal for agricultural and off-road vehicles, available in four configurations — right-side suspended (A), right-side underfloor (B), left-side underfloor (C) and left-side suspended (D). Contactless sensing with full redundant programmable outputs and horizontal or vertical sensor positioning.
- Configs
- A / B / C / D
- Output
- Dual analog / IVS
- Sealing
- IP6K9K
Quick highlights
Performance snapshot
Built for tractor throttle control in any cab layout.
- Four mounting configurations (MO 382A / B / C / D)
- Suspended or underfloor, left- or right-side
- Travel angle options: 10° or 16°

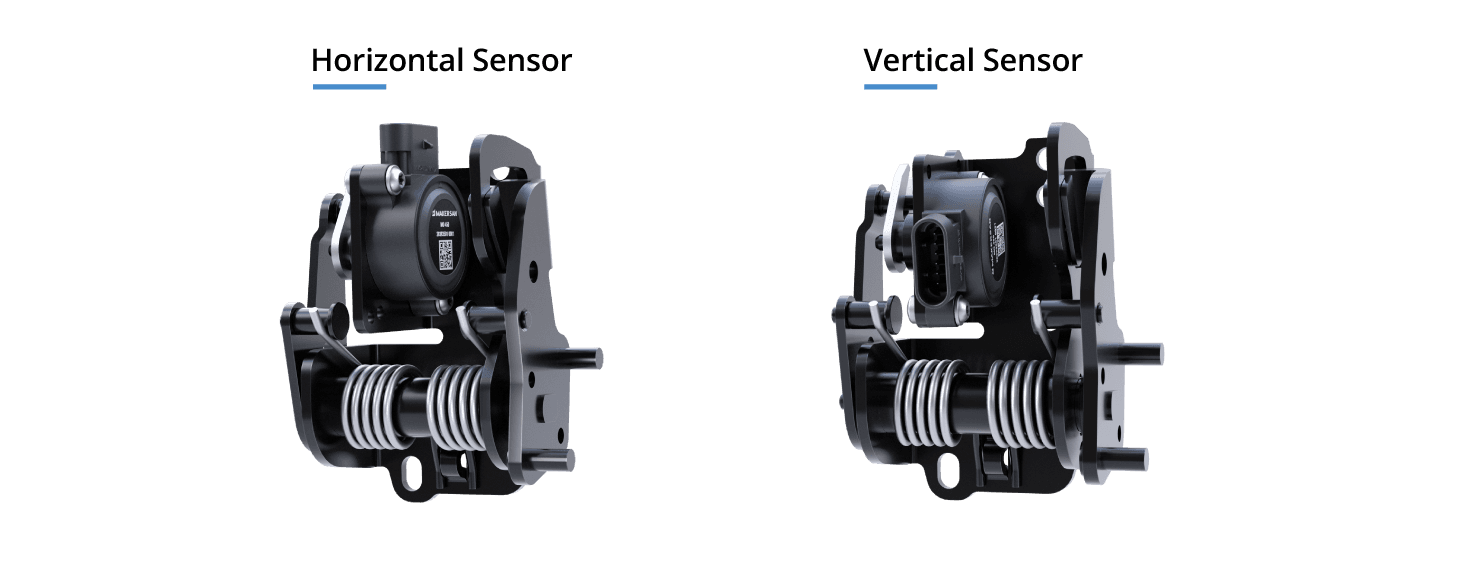

- Horizontal or vertical sensor positioning
- Full redundant double programmable outputs
- More than 2 million actuations
Engineering views
Technical overview
- Type
- Tractor pedal (suspended / underfloor)
- Configurations

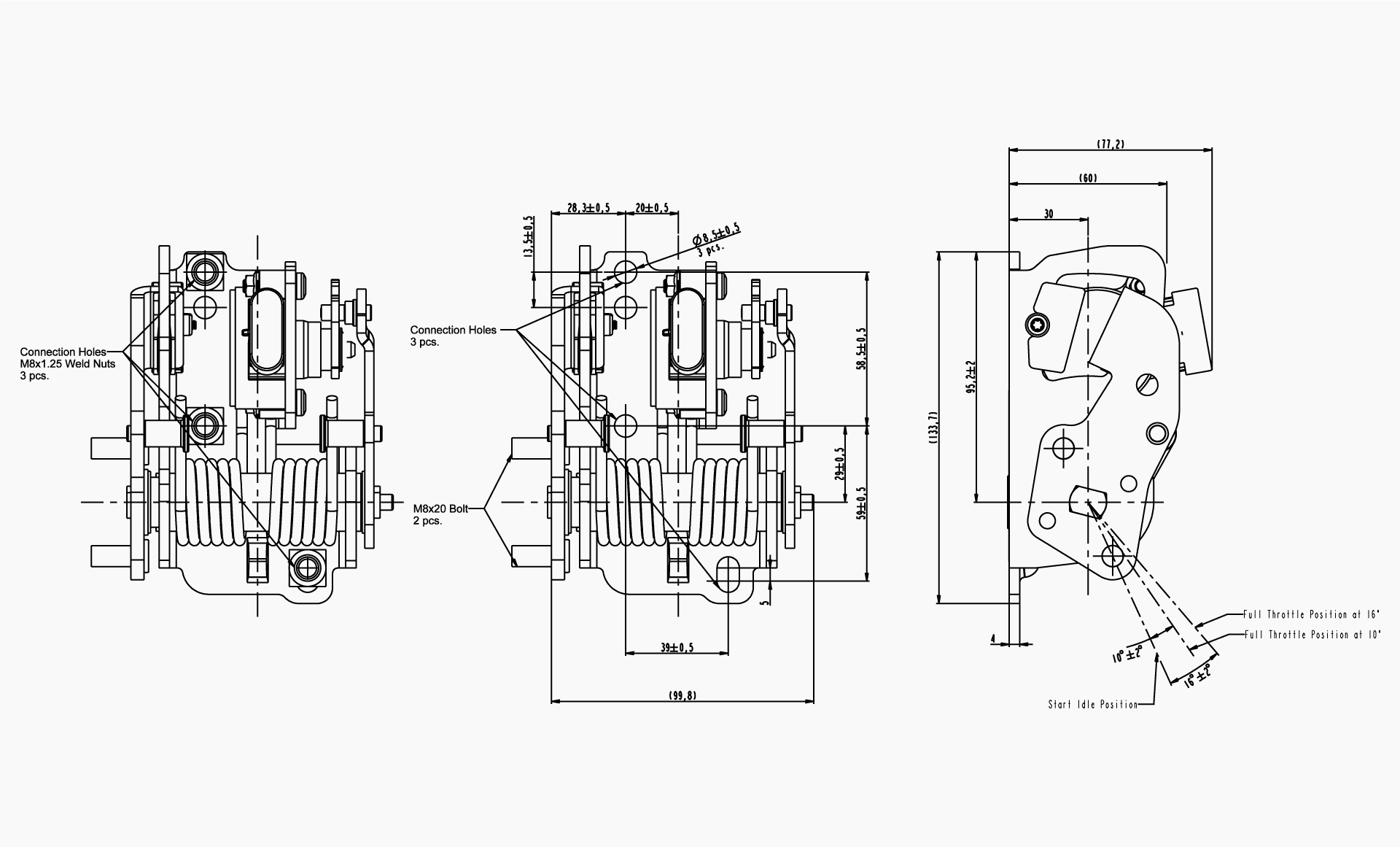

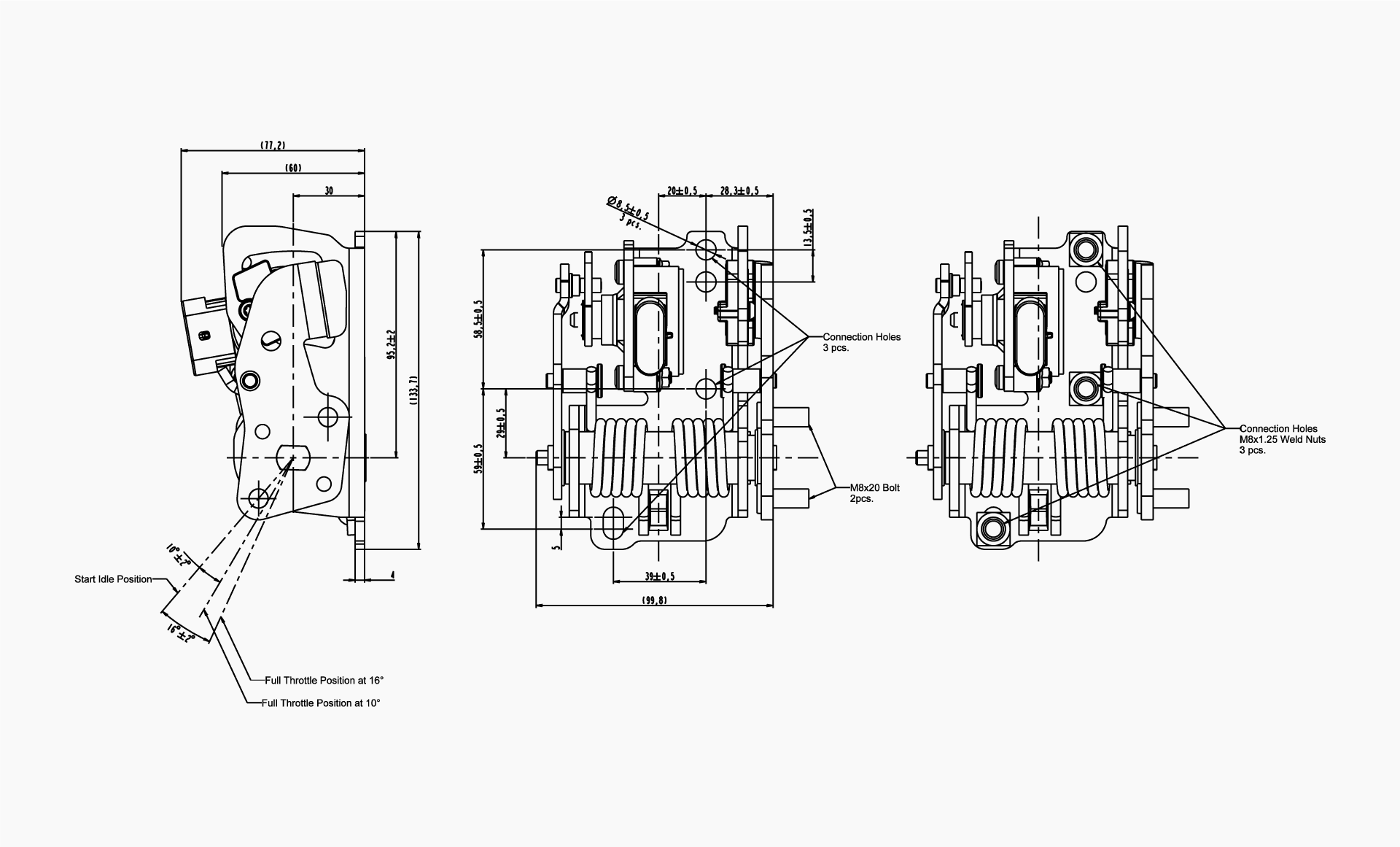

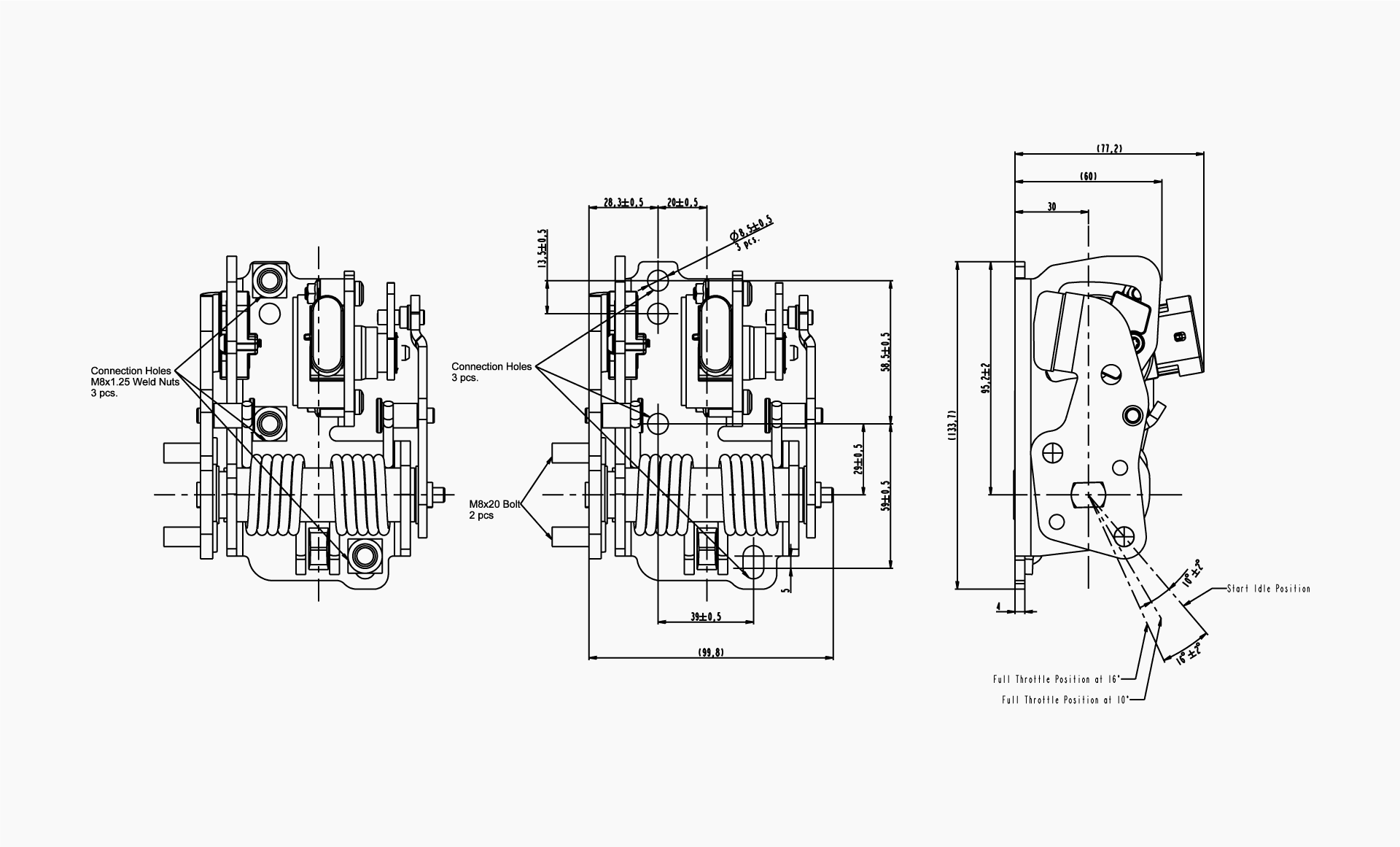

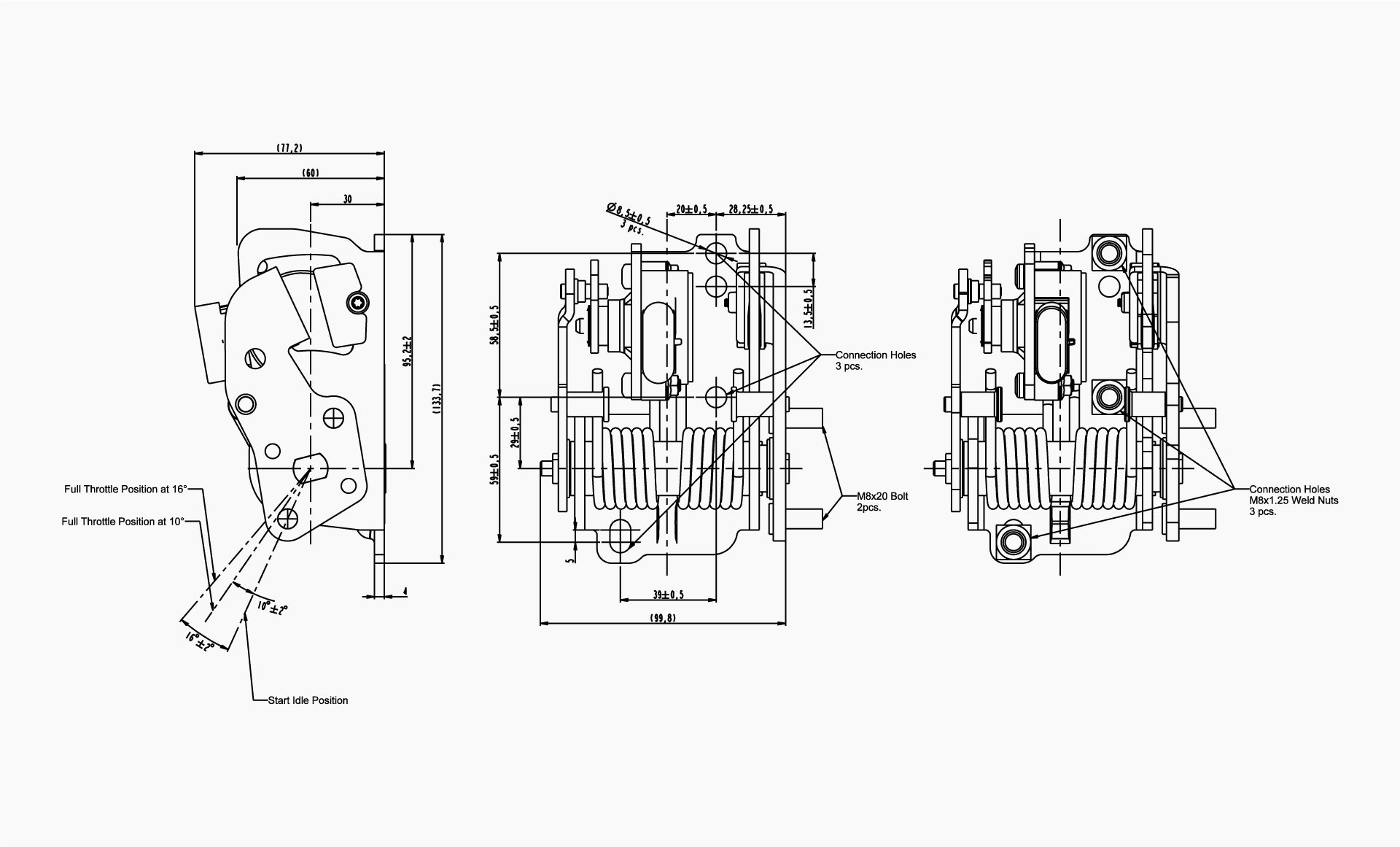

- A: right suspended · B: right underfloor · C: left underfloor · D: left suspended
- Measuring principle
- Contactless
- Travel angle
- 10° or 16°
- Supply voltage
- 5V or 8-32V
- Outputs
- Dual analog (0-5V / PWM); Analog+IVS
- Sensor positioning
- Horizontal (H) or vertical (V)
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 2 million actuations
- Operating temperature
- -40°C … +85°C
- Housing
- Heavy-duty metal case
Module capabilities
- Tractor pedal for agricultural and off-road vehicles
- Four configurations: right/left side, suspended or underfloor
- Contactless measuring principle with full redundant double programmable outputs
- Dual analog type: 0-5V / PWM
- Analog+IVS type: analog with high-side or low-side switch
- Horizontal and vertical sensor positioning options
- Two independent springs
Order Code
| MO 382X - | X - Option | X Description |
|---|---|---|
| Body | A | Right suspended |
| Body | B | Right underfloor |
| Body | C | Left underfloor |
| Body | D | Left suspended |
| Travel angle | 1 | 10° |
| Travel angle | 2 | 16° |
| Sensor position | H | Horizontal |
| Sensor position | V | Vertical |
| Sensor program | P009 | Dual analog (other programs on request) |
Preset configurations V001-V008 combine body, angle, spring and sensor position.
Example: MO 382A - 1 - H - P009
Need a custom configuration?
Contact EngineeringTell our engineering team about your machine platform, mounting envelope and required output. We'll propose the right hardware variant, rod/lever option and sensor program.
