MO 381
Clutch Pedal · Suspended electronic clutch pedal with contactless sensing
MO 381 is a suspended electronic clutch pedal for commercial and off-road vehicles, suitable for different engine interfaces. A contactless measuring principle and full redundant programmable outputs provide reliable clutch-position feedback.
- Function
- Clutch
- Output
- Dual analog / IVS
- Sealing
- IP6K9K
Quick highlights
Performance snapshot
Built for electronic clutch-position feedback.
- Dedicated electronic clutch-position feedback
- Full redundant double programmable outputs
- Two independent return springs
- More than 1 million actuations
- Heavy-duty metal case
- IP6K9K sealed sensor
Engineering views
Technical overview
- Function
- Clutch pedal
- Type
- Suspended
- Measuring principle
- Contactless
- Supply voltage
- 5V or 8-32V
- Outputs
- Dual analog (0-5V / PWM); Analog+IVS (high-side / low-side switch)
- Redundancy
- Full redundant double programmable outputs
- Connector
- 6-way Delphi Packard Metri-Pack 150
- Ingress protection
- IP6K9K (sensor)
- Lifetime
- More than 1 million actuations
- Operating temperature
- -40°C … +85°C
- Housing
- Heavy-duty metal case
- Weight
- 3.4 kg
Module capabilities
- Suspended electronic clutch pedal
- Suitable for different engine interfaces
- Contactless measuring principle with full redundant double programmable outputs
- Dual analog type: 0-5V / PWM
- Analog+IVS type: analog with high-side or low-side switch
- Two independent springs
- Heavy-duty metal case construction

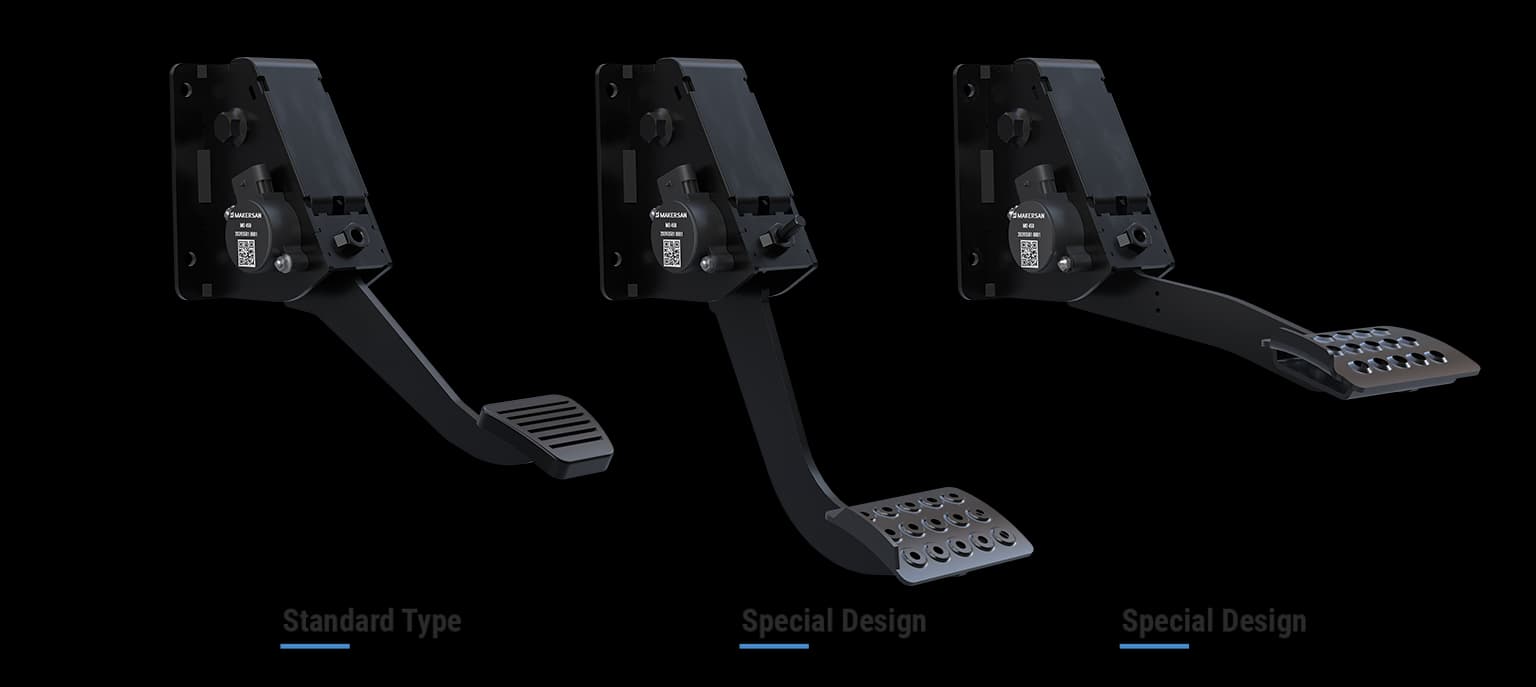

Order Code
| MO 381 - | XX - Option | PXXX Description |
|---|---|---|
| Rod type | 01 | Standard |
| Sensor program | P009 | Dual analog (other programs on request) |
Example: MO 381 - 01 - P009
