M-04 / Application-specific model

MO-655

CAN Operator Panel for Hitch Control · CAN operator panel for hitch lifting and header height control functions.

Hitch control system is used for lifting module control and header height control in agricultural machines. MO-655 focuses on operator ergonomics and robust CAN integration for daily field operations.

Supply
8-32 VDC
Protection
IP66
Protocol
CAN 2.0A/2.0B + SAE J1939
Contact UsView all application-specific controllers

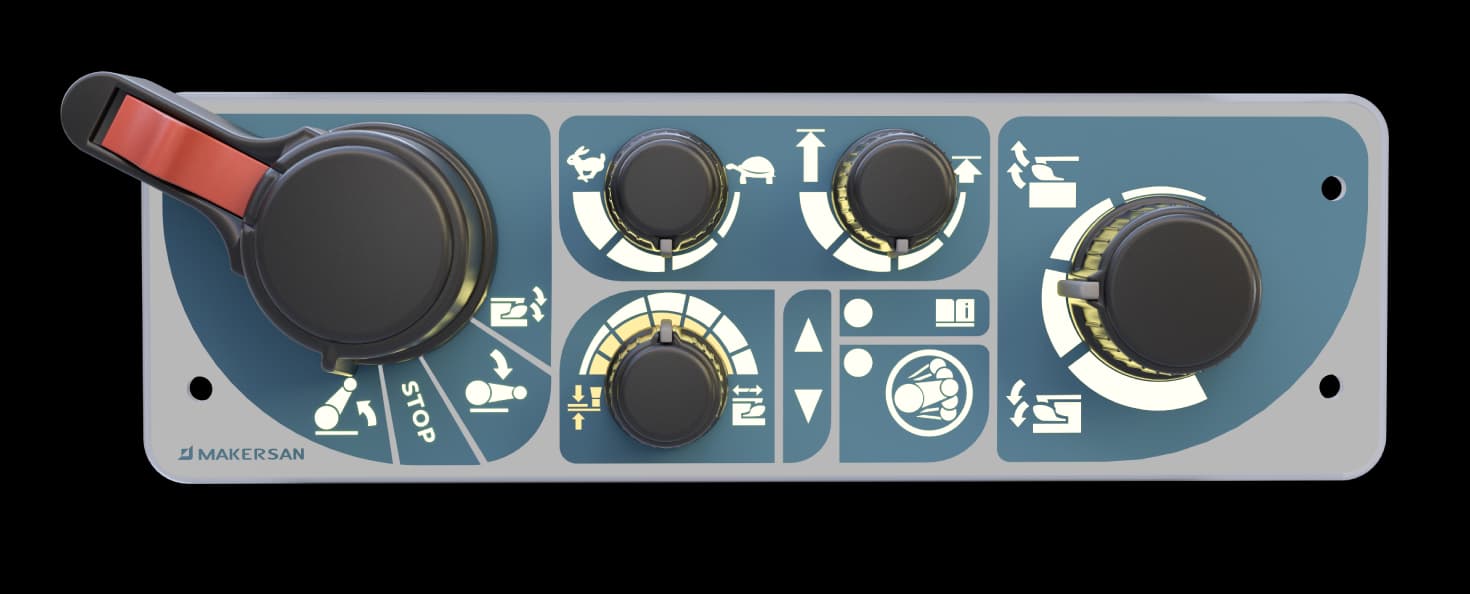

Makersan MO-655 hitch and header height control panel with a teal-blue branded faceplate, a single-axis red-tipped multifunction lever, four rotary control knobs and an iconographic legend for hitch lift, header height and PTO functions.
Quick highlights

Performance snapshot

Built for dedicated machine functions.

  • Purpose-built operator panel for agricultural hitch workflows
  • Header height and lifting module control in one interface
  • CAN-ready architecture for seamless machine integration
  • Reinforced housing and IP66 protection for harsh field duty

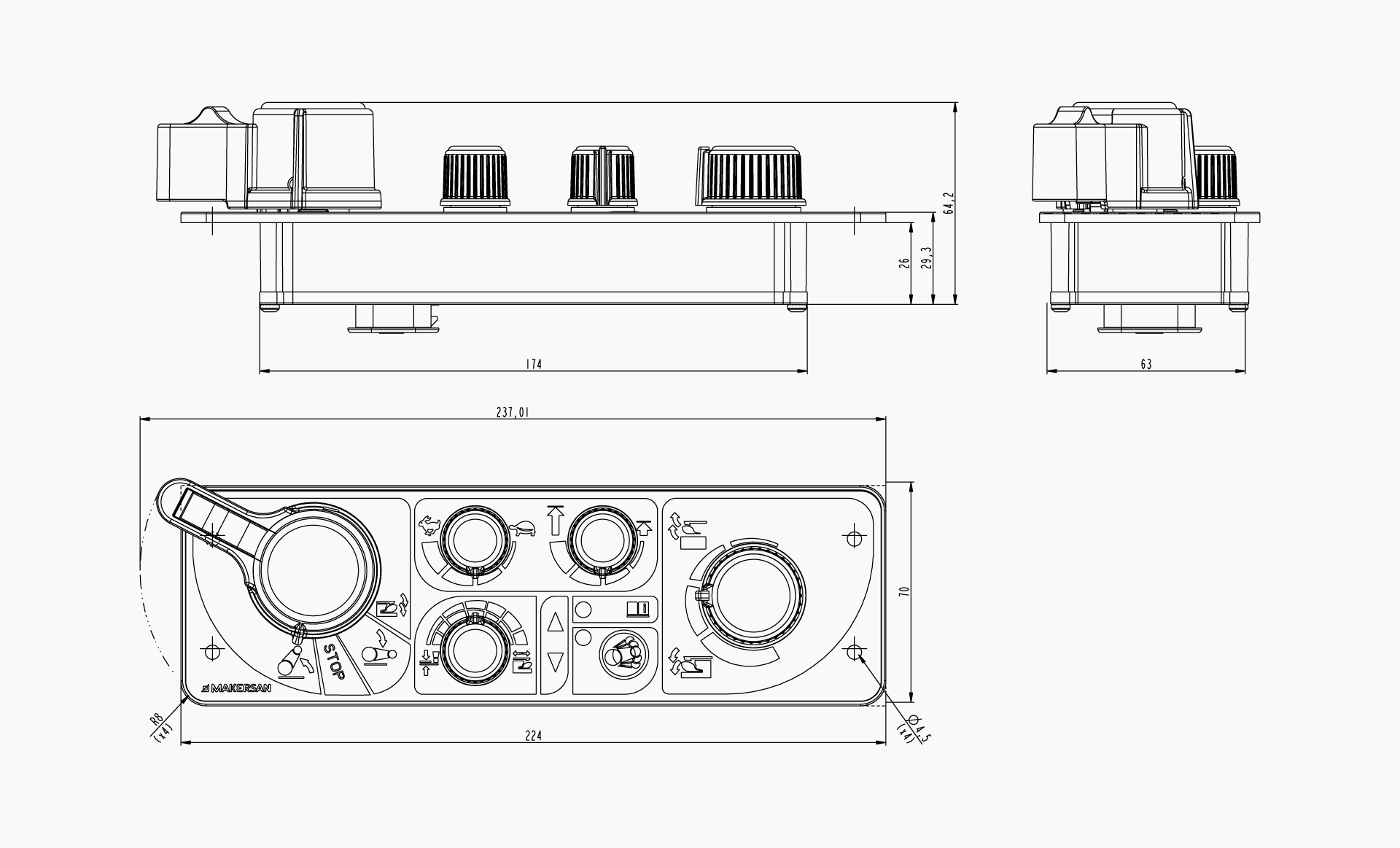

Engineering views
Technical overview
Configuration
User Configurable or Custom
Housing
% 30 GF Reinforced Polyamide Plastic Case
Ingress Protection
IP66
Supply Voltage
8-32 VDC
CAN Standard
ISO 11898, CAN specification 2.0A-2.0B
Communication
SAE J1939
Need a custom configuration?

Tell our engineering team about your machine platform and use case. We'll propose the right hardware variant and integration baseline.
