M-24 / Door Access Systems

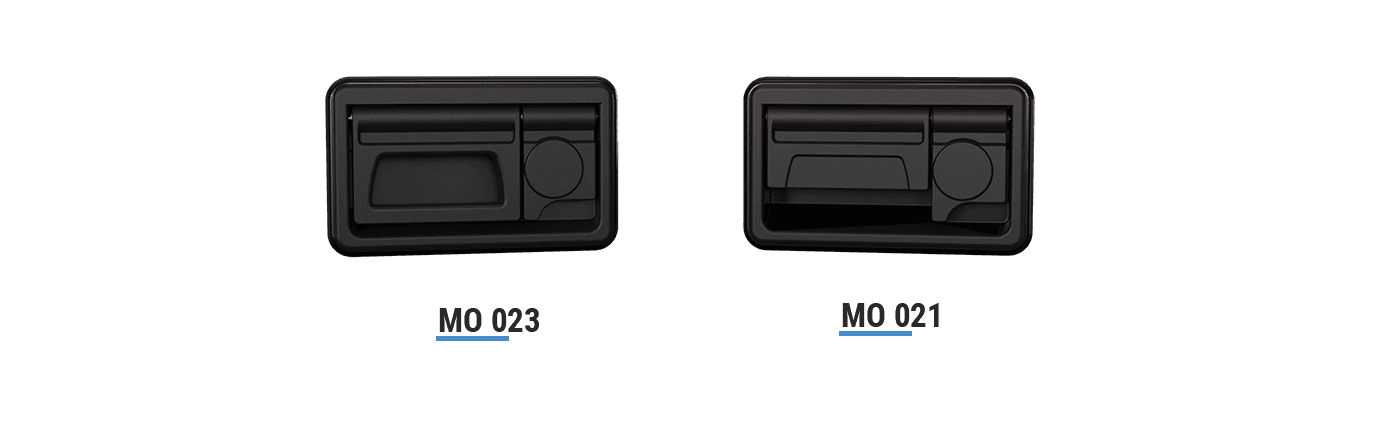

MO 021 / 023
Luggage Flap Handle · Coach luggage-flap handle with patented sealed mechanism
MO 021 / MO 023 is a coach luggage-flap handle with a patented locking mechanism that can be opened from the inside even when locked from outside. EPDM-sealed, UV-stabilized and rated to 504-hour salt-mist.
- Type
- Luggage flap
- Actuation
- Manual / 12V / 24V / Pneu
- Sealing
- EPDM / 504h
Quick highlights
Performance snapshot
Built for sealed coach luggage-flap access.
- Patented sealed luggage-flap mechanism
- Manual / 12V / 24V / pneumatic actuation
- 504-hour salt-mist resistance
- One-key (MO 043/044) compatible

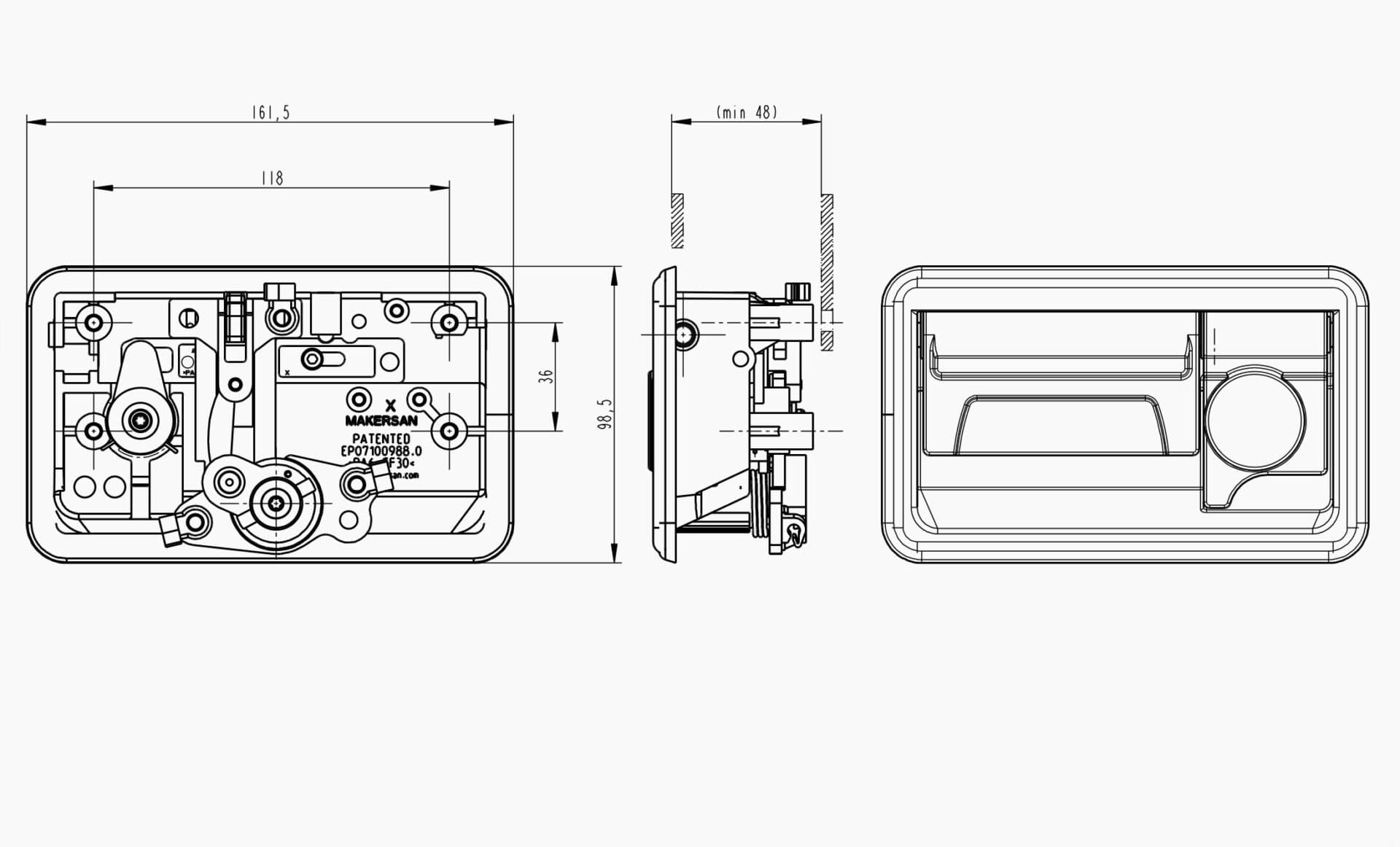

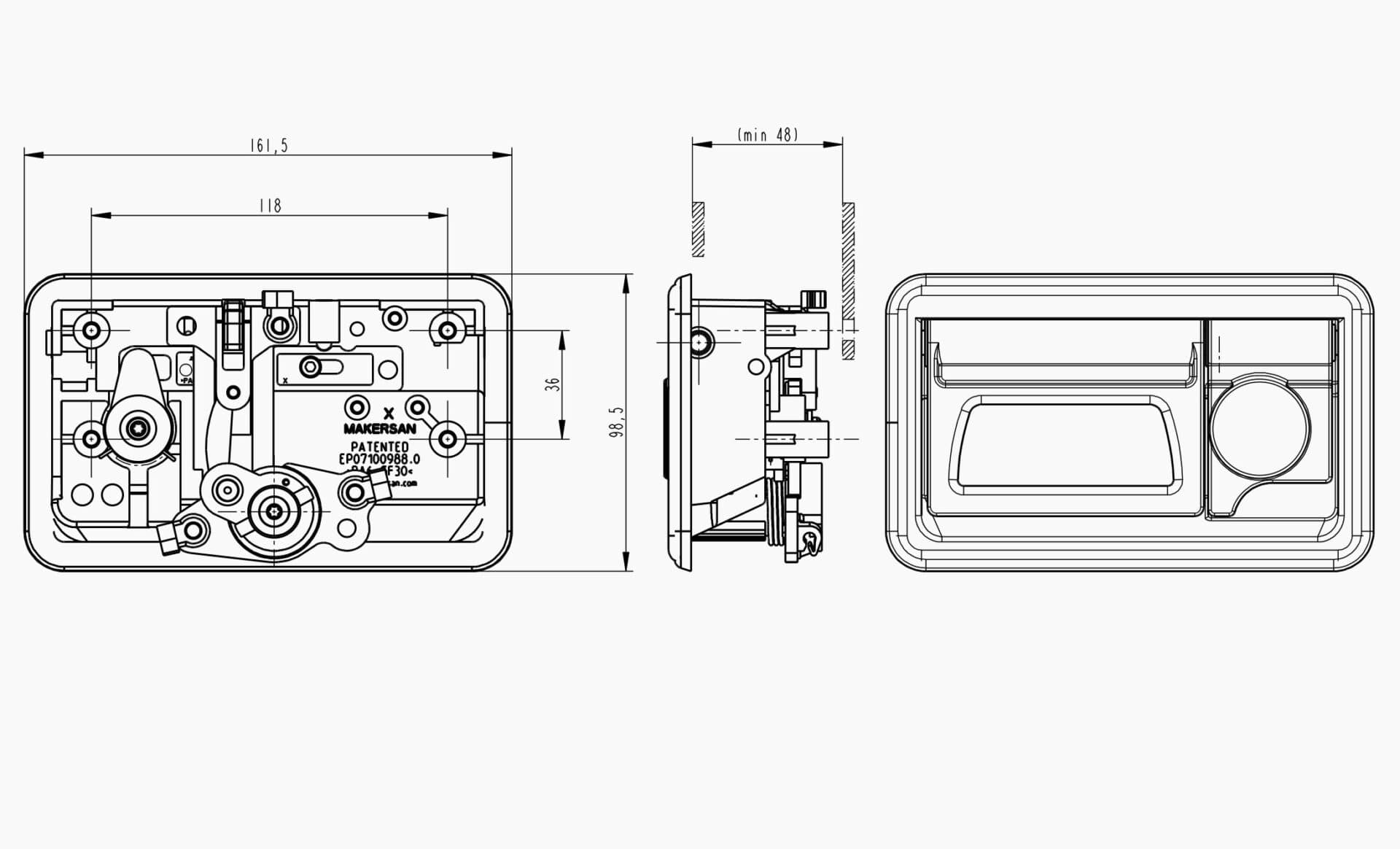

Engineering views
Technical overview
- Type
- Coach luggage-flap handle
- Material
- Black polyamide, 30% GF reinforced
- Sealing
- EPDM rubber seal
- Salt-mist
- 504 hours
- Actuation
- Manual / 12V (E12) / 24V (E24) / Pneumatic (P)
- Locking
- MO 043 & MO 044 cylinders
Module capabilities
- Patented mechanism, openable inside when locked outside
- Manual, 12V (E12), 24V (E24) or pneumatic (P) actuation
- EPDM rubber seal, UV stabilized, 504-hour salt-mist
- Keyed via MO 043 & MO 044 cylinders
- Compatible with MO 052 for sleeping-cabin release
Need a custom configuration?
Contact EngineeringTell our engineering team about your door, flap or hatch, actuation method and keying scheme. We'll propose the right handle, latch and lock combination — keyed alike across the vehicle.
