M-25 / Door Access Systems
MO 022 / 024

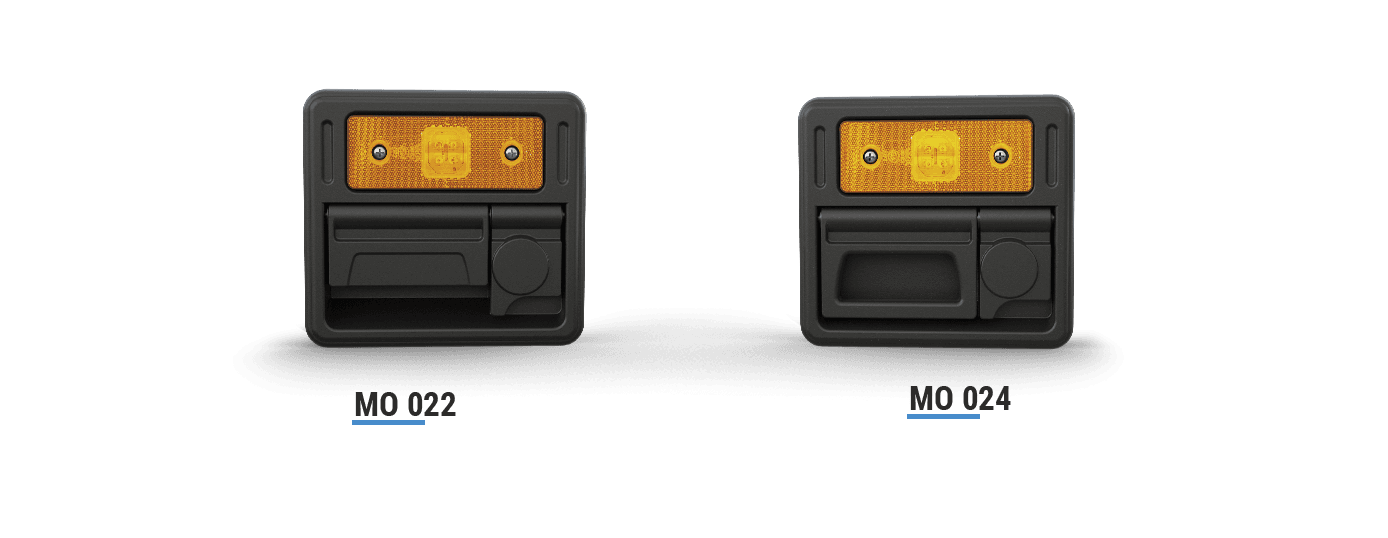

Luggage Flap Handle with LED · Luggage-flap handle with integrated 4-LED side marker
MO 022 / MO 024 is a coach luggage-flap handle with an integrated 4-LED side-marker light and patented mechanism, openable from inside even when locked outside.
- Type
- Luggage flap
- Lighting
- 4-LED marker
- Actuation
- Manual / 12V / 24V / Pneu
Quick highlights
Performance snapshot
Built for luggage flaps with side-marker lighting.
- Integrated 4-LED side marker
- Patented sealed luggage-flap mechanism
- Manual / 12V / 24V / pneumatic actuation
- 504-hour salt-mist resistance

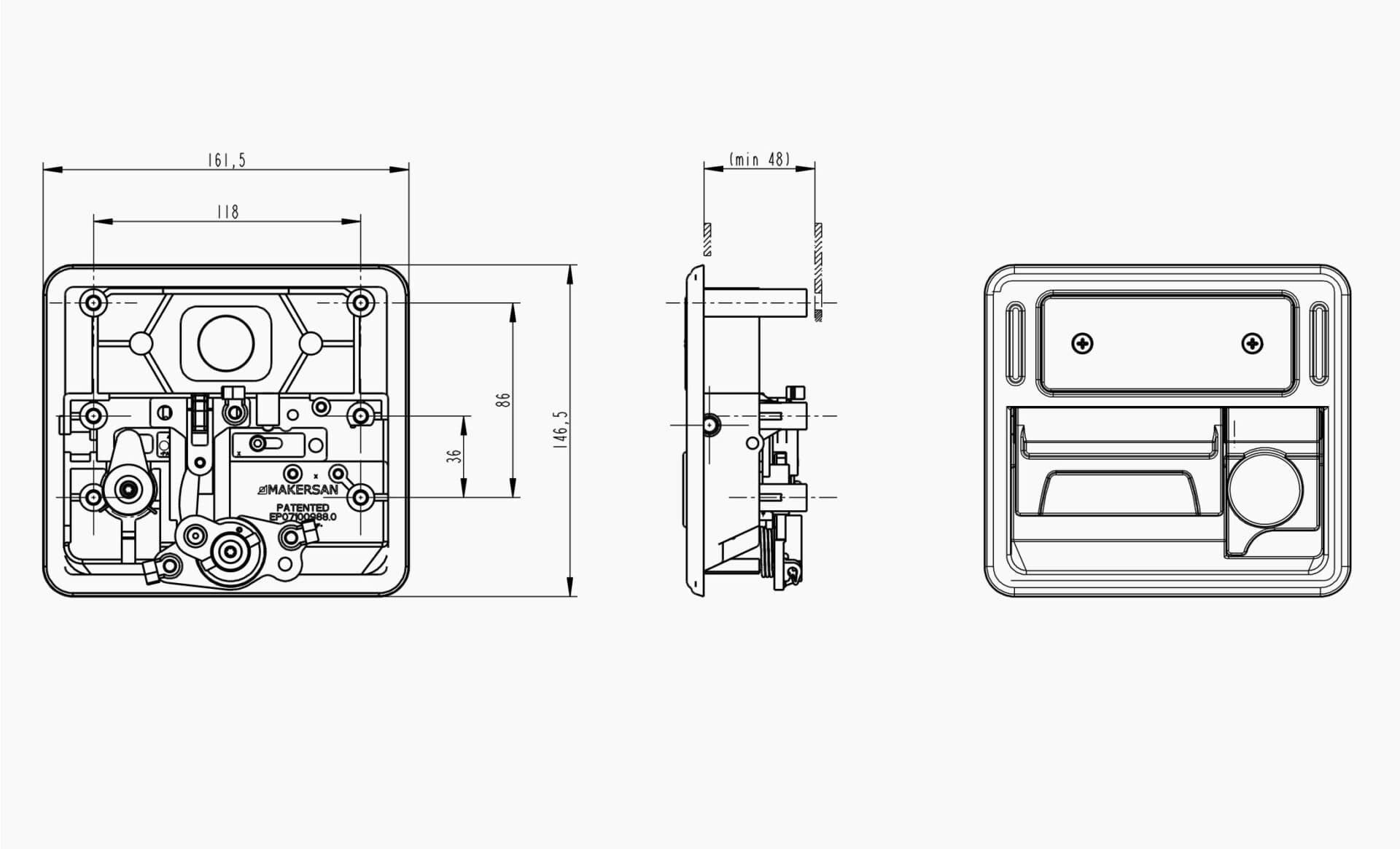

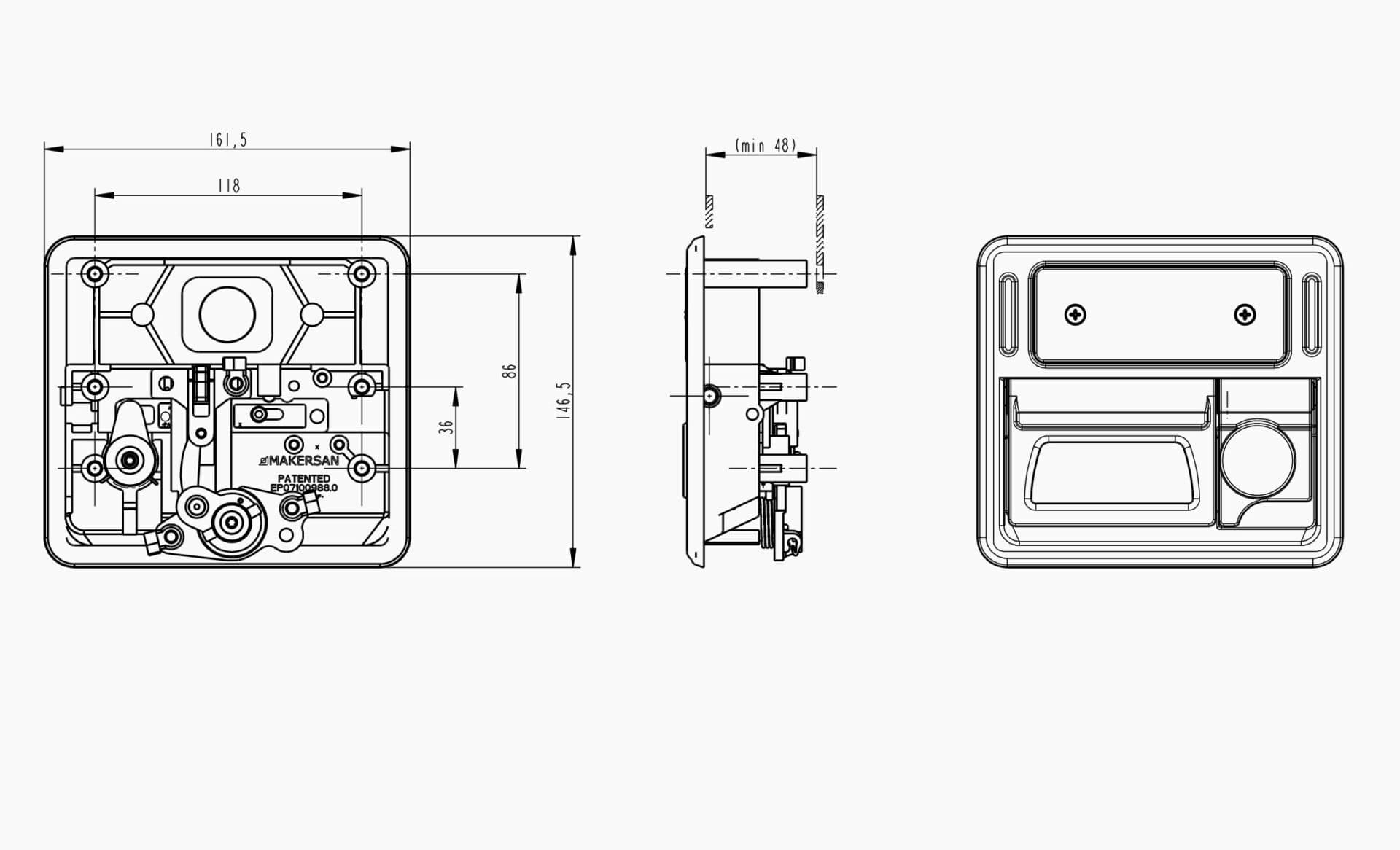

Engineering views
Technical overview
- Type
- Luggage-flap handle with LED side marker
- Material
- Black polyamide, 30% GF reinforced
- LED
- Integrated 4-LED side marker
- Sealing
- EPDM rubber seal
- Salt-mist
- 504 hours
- Actuation
- Manual / 12V (E12) / 24V (E24) / Pneumatic (P)
Module capabilities
- Integrated 4-LED side-marker light
- Patented mechanism, openable inside when locked outside
- Manual, 12V (E12), 24V (E24) or pneumatic (P) actuation
- EPDM rubber seal, UV stabilized, 504-hour salt-mist
- Keyed via MO 043 & MO 044 cylinders
Need a custom configuration?
Contact EngineeringTell our engineering team about your door, flap or hatch, actuation method and keying scheme. We'll propose the right handle, latch and lock combination — keyed alike across the vehicle.
