M-28 / Door Access Systems
MO 032X
Oval Luggage Handle · Oval luggage-flap handle with no-load closed operation
MO 032X is an oval coach luggage-flap handle with no-load operation in the closed position and an optional integrated 4-LED side marker. Patented mechanism, openable inside when locked outside.
- Type
- Oval flap
- LED
- Optional marker
- Actuation

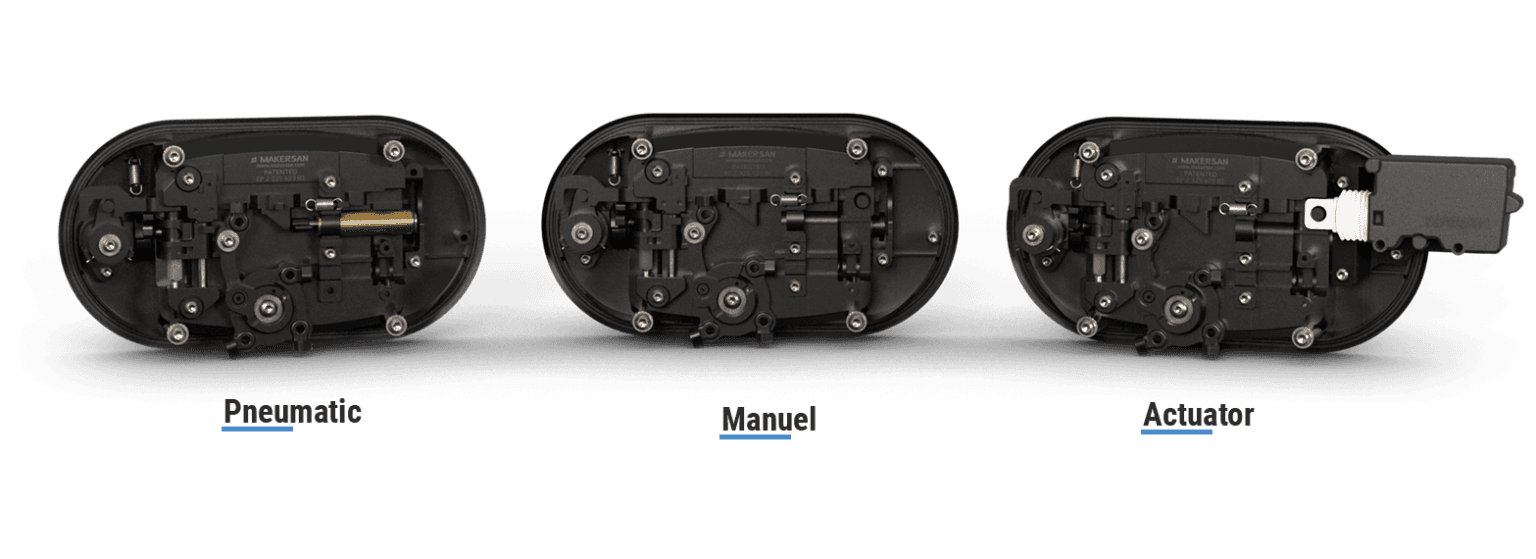

- Manual / 12V / 24V / Pneu
Quick highlights
Performance snapshot
Built for oval luggage flaps with no-load closing.
- Oval handle with no-load closed operation
- Optional 4-LED side marker
- Remote locking with interior release
- 504-hour salt-mist resistance

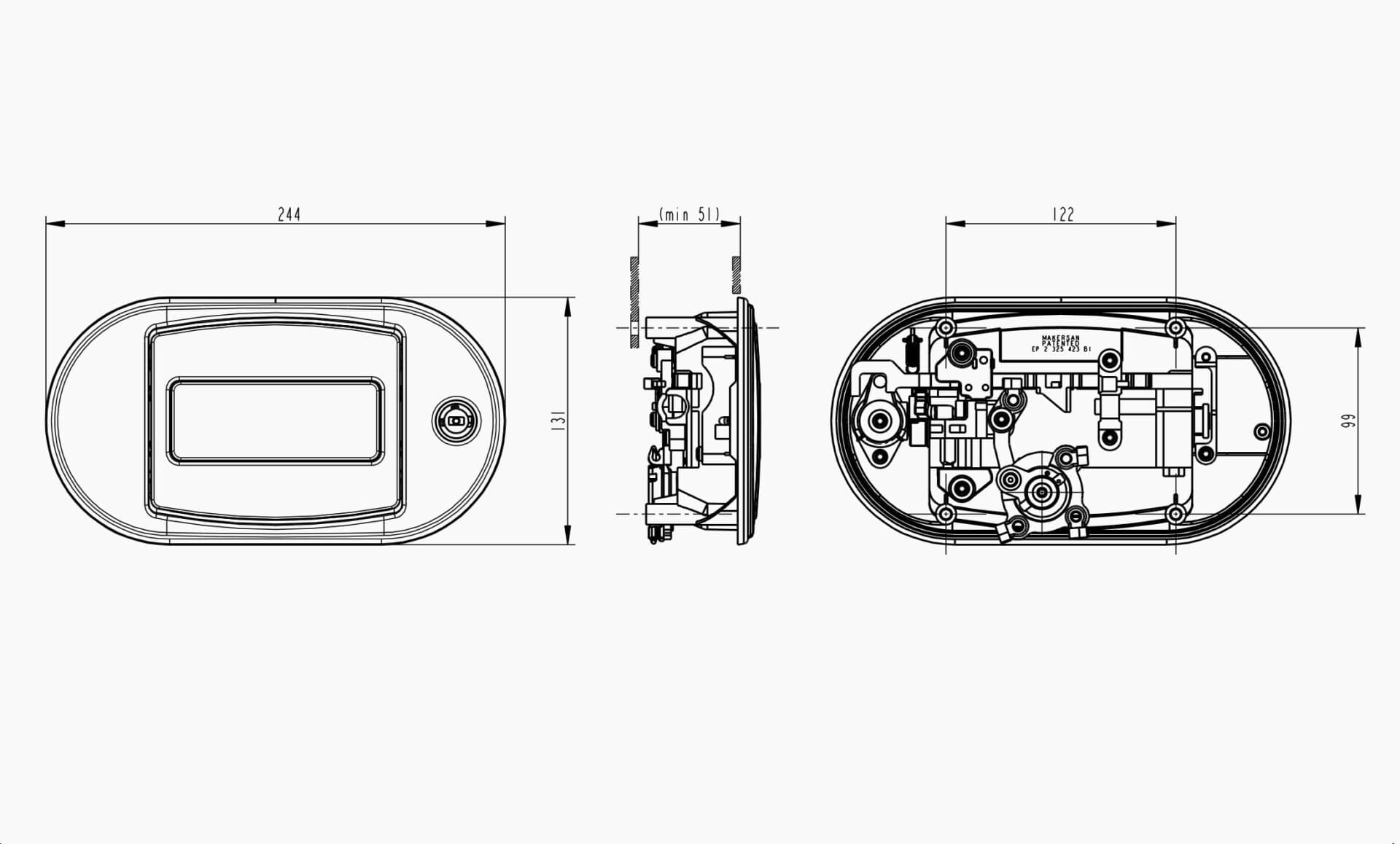

Engineering views
Technical overview
- Type
- Oval luggage-flap handle
- Material
- Black polyamide, 30% GF reinforced
- LED
- Optional (B = without, R = with)
- Sealing
- EPDM rubber seal
- Salt-mist
- 504 hours
- Actuation
- Manual / 12V / 24V / Pneumatic
Module capabilities
- Oval shape with no-load operation in closed position
- Optional integrated 4-LED side marker (B without / R with)
- Patented mechanism, openable inside when locked outside
- Manual / 12V / 24V / pneumatic actuation
- Keyed via MO 043 & MO 044 cylinders
Need a custom configuration?
Contact EngineeringTell our engineering team about your door, flap or hatch, actuation method and keying scheme. We'll propose the right handle, latch and lock combination — keyed alike across the vehicle.
