M-29 / Door Access Systems
MO 032X-A
Oval Luggage Handle (Auto Latch) · Oval luggage handle with automatic pneumatic latch opening

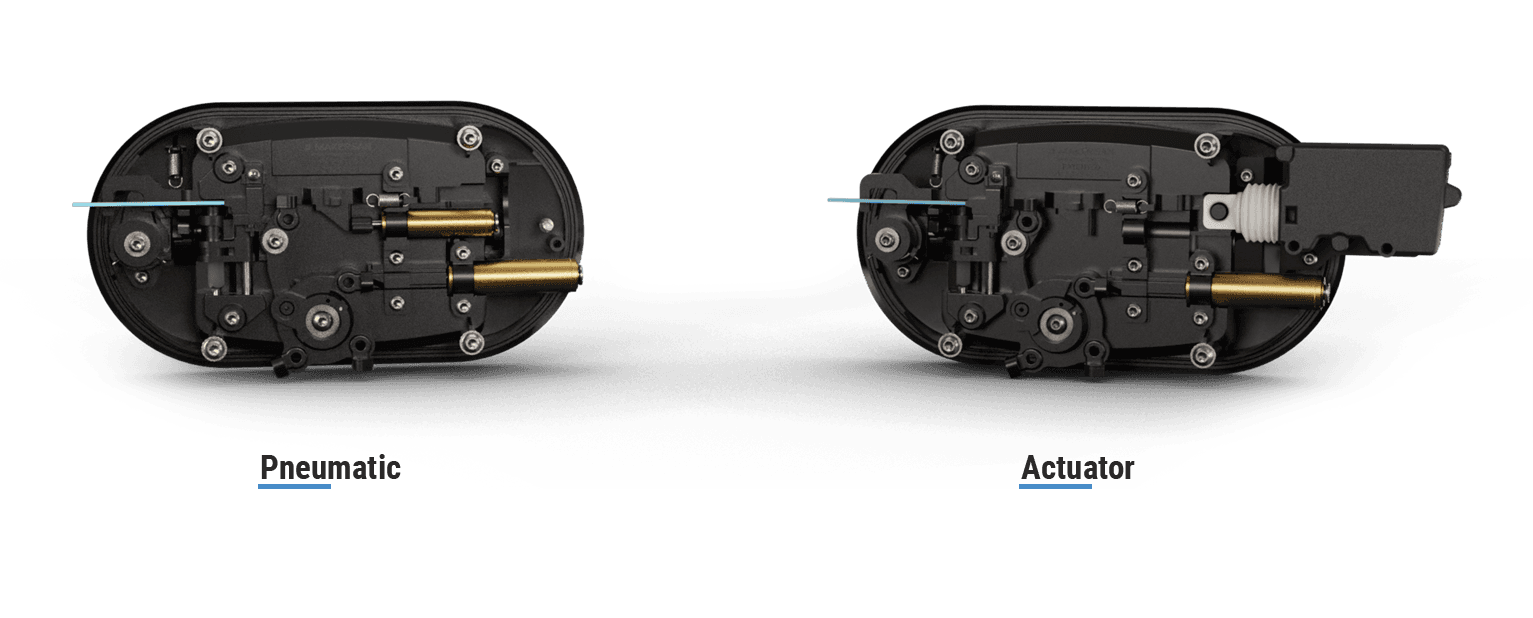

MO 032X-A is an MO 032X variant with automatic latch opening when pneumatically actuated, in an oval shape with an integrated 4-LED side marker.
- Type
- Oval, auto latch
- LED
- 4-LED marker
- Actuation
- Electric / Pneumatic
Quick highlights
Performance snapshot
Built for automatic pneumatic luggage-flap opening.
- Automatic pneumatic latch opening
- Integrated 4-LED side marker
- Oval handle with no-load closed operation
- 504-hour salt-mist resistance

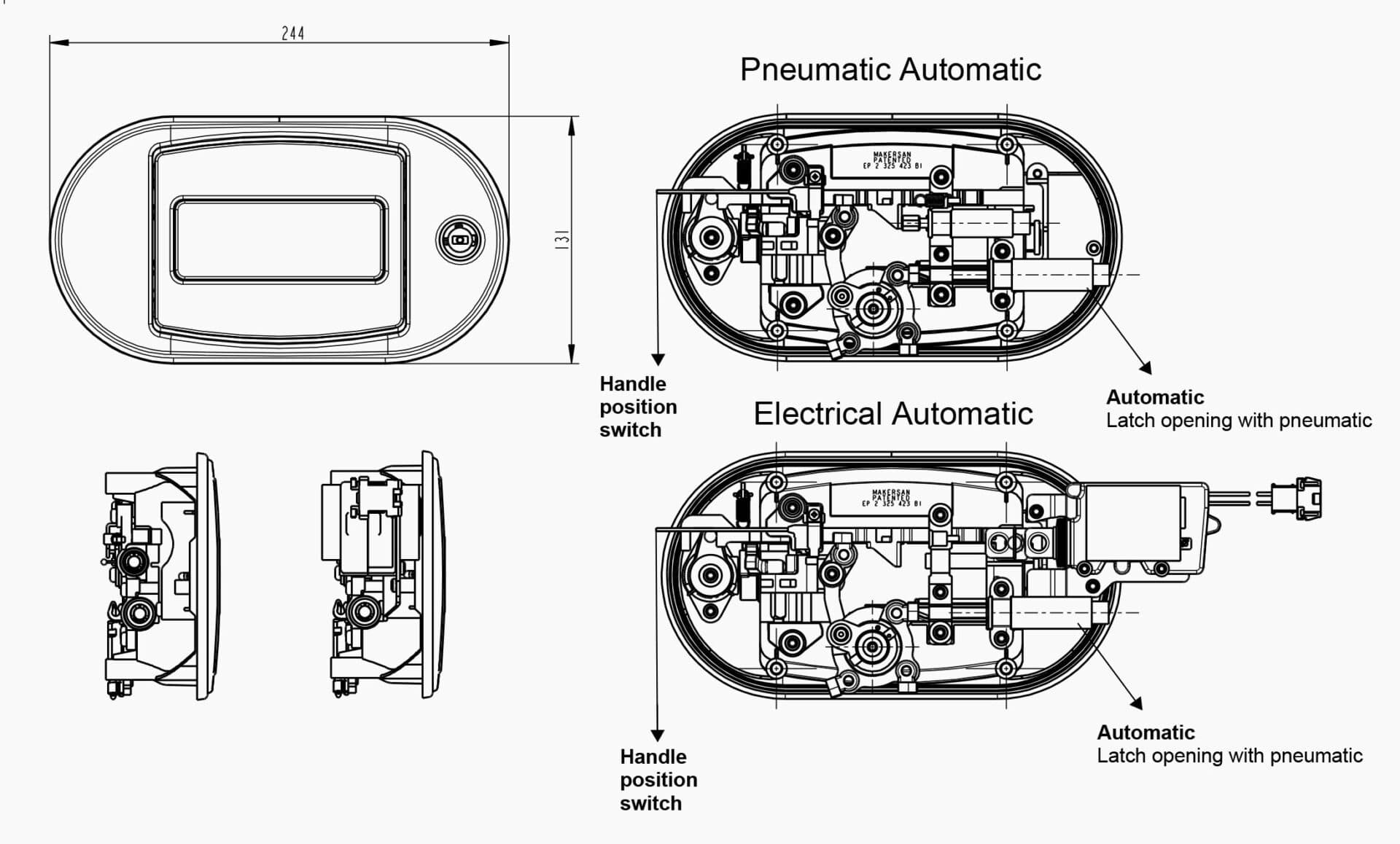

Engineering views
Technical overview
- Type
- Oval luggage-flap handle, automatic latch
- Material
- Black polyamide, 30% GF reinforced
- LED
- Integrated 4-LED side marker
- Sealing
- EPDM rubber seal
- Actuation
- Electrical (12V/24V) or pneumatic (automatic latch)
Module capabilities
- Automatic latch opening with pneumatic actuation
- Oval shape, no-load operation in closed position
- Integrated 4-LED side marker
- Patented mechanism, openable inside when locked outside
- Keyed via MO 043 & MO 044 cylinders
