Back to door access systems
M-30 / Door Access Systems
MO 032X-A-M
Oval Luggage Handle (Auto Latch, M) · Oval auto-latch luggage handle, M variant
MO 032X-A-M is the M variant with automatic latch opening on pneumatic actuation, oval shape with optional integrated LED side marker.
- Type
- Oval, auto latch
- LED
- Optional marker
- Actuation
- Manual / Electric / Pneu
Quick highlights
Performance snapshot
Built for automatic pneumatic latch opening (M).
- Automatic pneumatic latch opening (M variant)

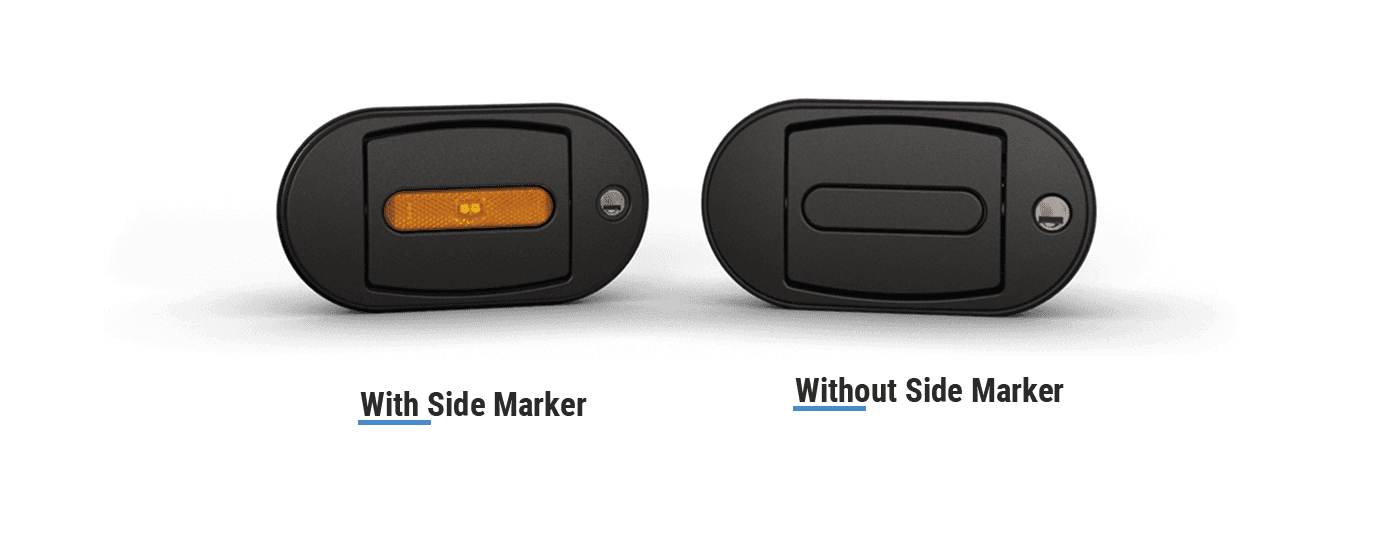

- Optional integrated LED side marker
- Oval handle with no-load closed operation
- 504-hour salt-mist resistance

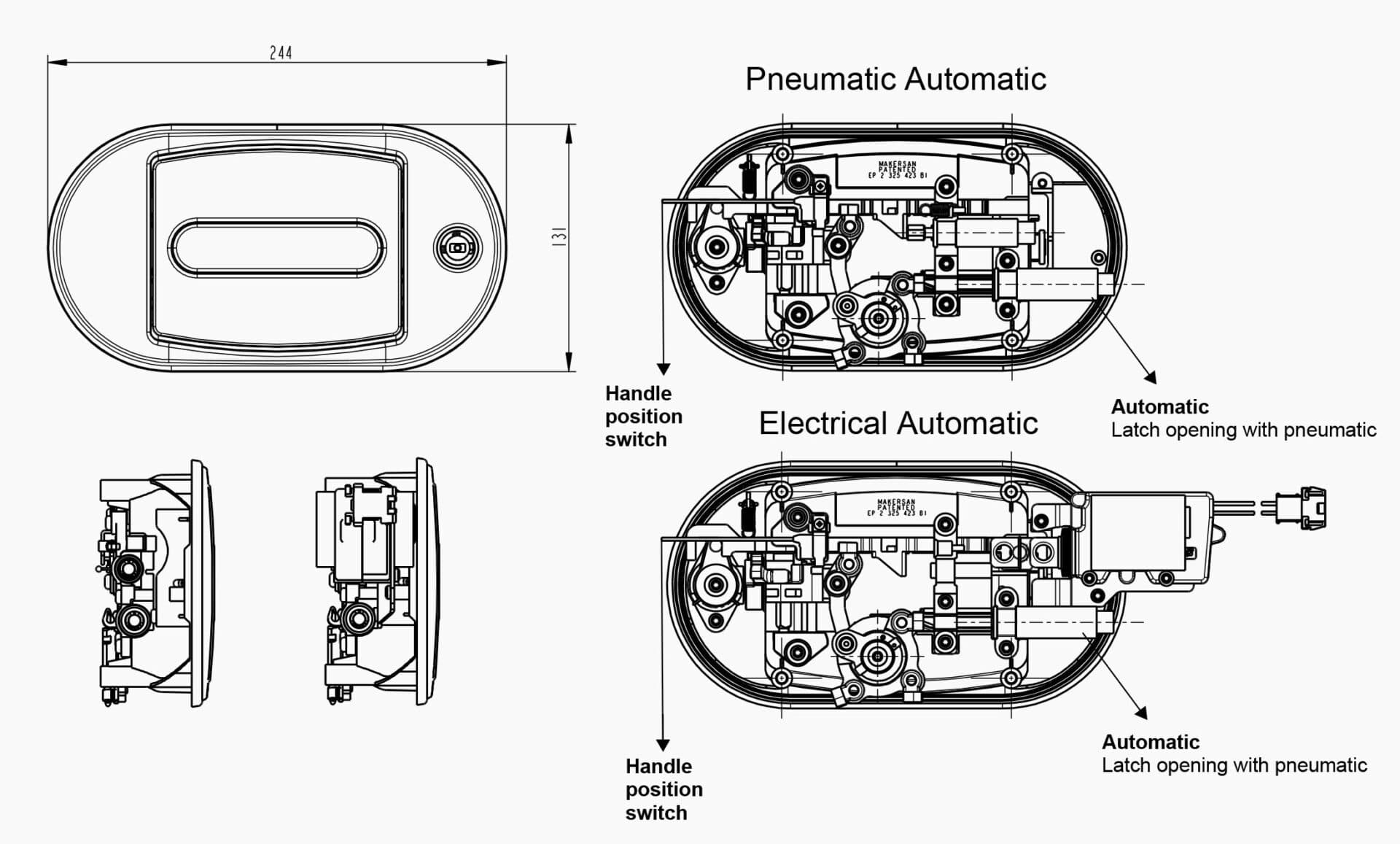

Engineering views
Technical overview
- Type
- Oval luggage-flap handle, automatic latch (M)
- Material
- Black polyamide, 30% GF reinforced
- LED
- Integrated side marker (optional)
- Sealing
- EPDM rubber seal
- Actuation
- Manual / Electrical (12V/24V) / Pneumatic (automatic latch)
Module capabilities
- Automatic latch opening with pneumatic actuation
- Oval shape, no-load operation in closed position
- Optional integrated LED side marker
- Patented mechanism, openable inside when locked outside
- Keyed via MO 043 & MO 044 cylinders
Need a custom configuration?
Contact EngineeringTell our engineering team about your door, flap or hatch, actuation method and keying scheme. We'll propose the right handle, latch and lock combination — keyed alike across the vehicle.
