M-31 / Door Access Systems
MO 032X-M
Oval Luggage Handle (M) · Oval luggage handle, M variant with optional LED
MO 032X-M is the M variant of the oval coach luggage-flap handle, with no-load closed operation and an optional integrated LED side marker.
- Type
- Oval flap (M)
- LED
- Optional marker
- Actuation
- Manual / Electric / Pneu
Quick highlights
Performance snapshot
Built for oval luggage flaps (M variant).
- Oval handle with no-load closed operation (M)
- Optional integrated LED side marker

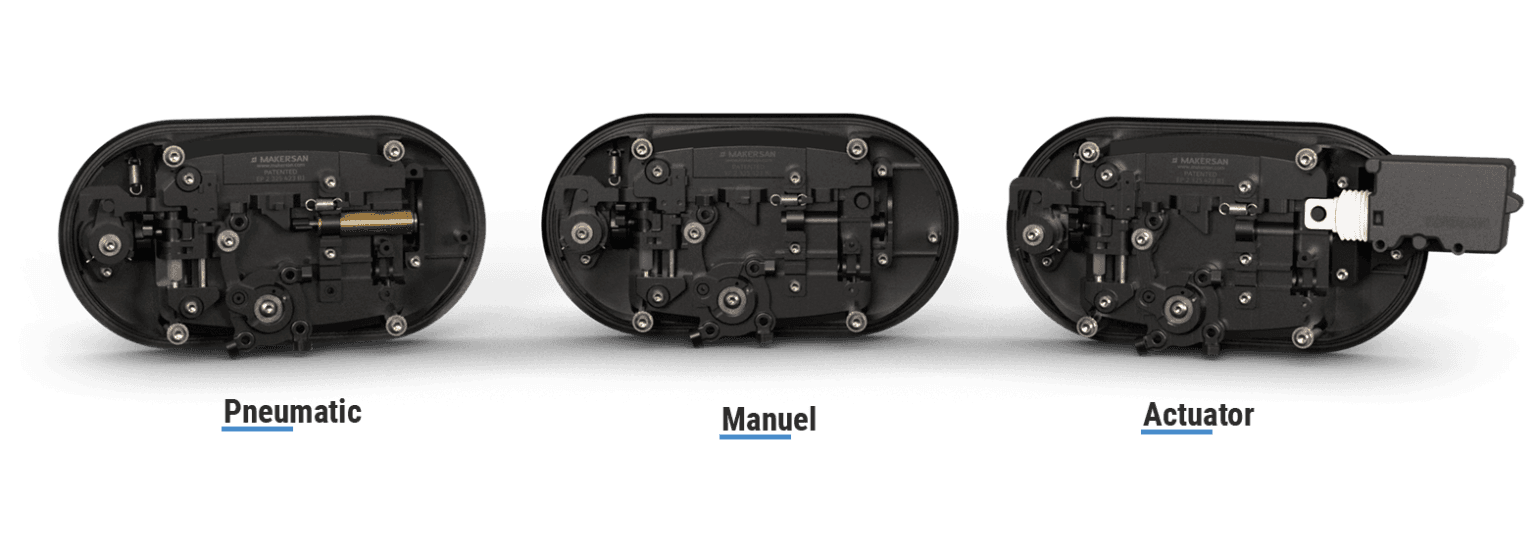

- Manual / electric / pneumatic actuation
- 504-hour salt-mist resistance

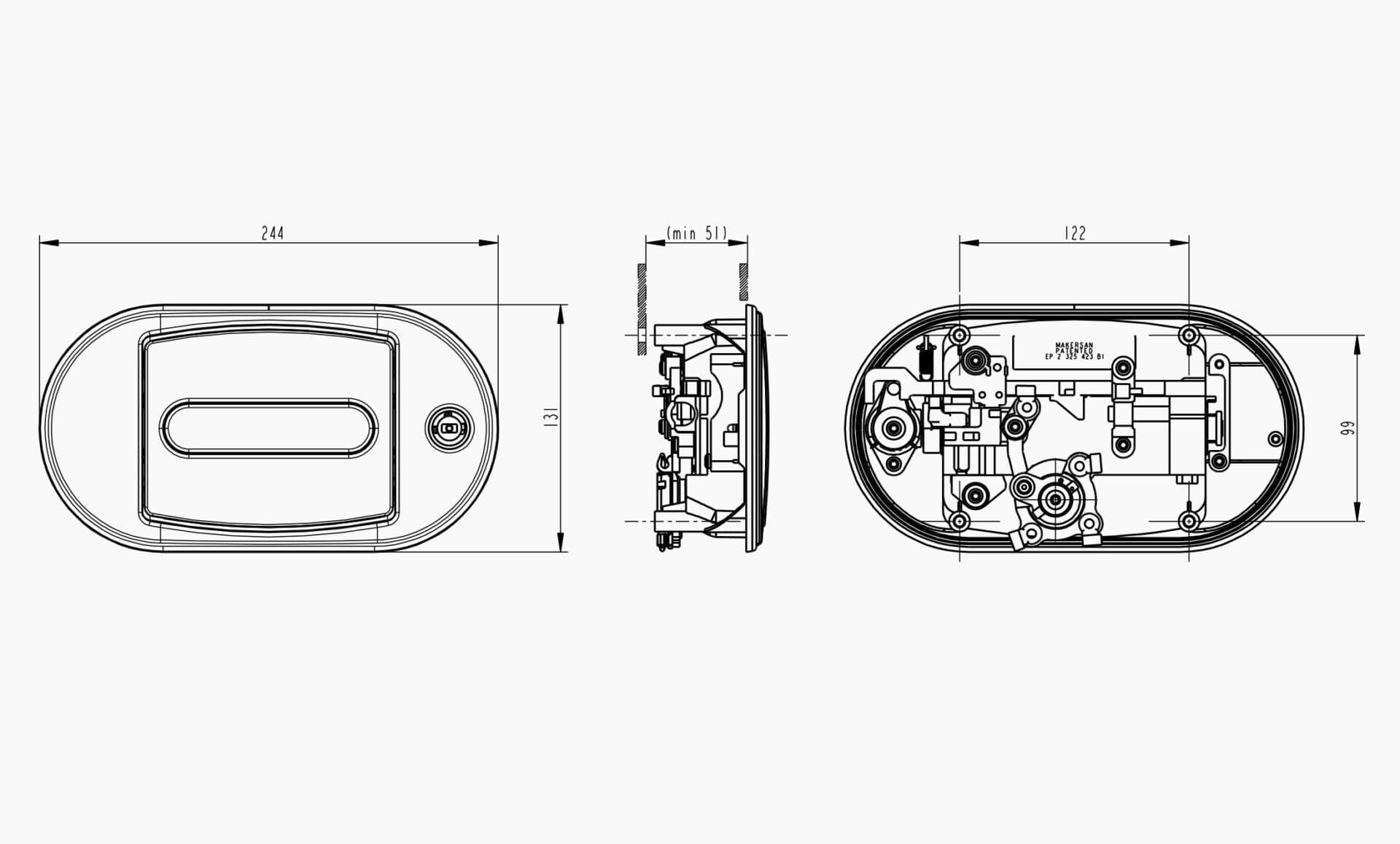

Engineering views
Technical overview
- Type
- Oval luggage-flap handle (M)
- Material
- Black polyamide, 30% GF reinforced
- LED
- Integrated side marker (with / without)
- Sealing
- EPDM rubber seal
- Actuation
- Manual / Electrical (12V/24V) / Pneumatic
Module capabilities
- Oval shape with no-load operation in closed position
- Optional integrated LED side marker (with / without)
- Patented mechanism, openable inside when locked outside
- Manual / 12V / 24V / pneumatic actuation
- Keyed via MO 043 & MO 044 cylinders
Need a custom configuration?
Contact EngineeringTell our engineering team about your door, flap or hatch, actuation method and keying scheme. We'll propose the right handle, latch and lock combination — keyed alike across the vehicle.
