M-34 / Door Access Systems
MO 055
DC Motor Actuator · Electric central-locking actuator for latches, trunks and lift gates

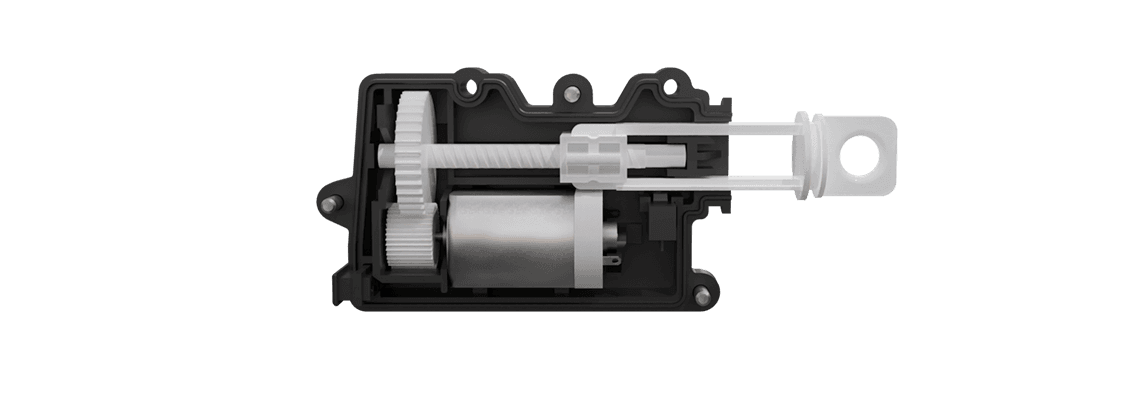

MO 055 is a DC-motor central-locking actuator for door latches, trunk lids and lift gates, built around a high-quality DC motor and micro-switches in a glass-fibre reinforced polyamide case.
- Supply
- 12V / 24V
- Force
- 25 / 50 N
- Stroke
- 20 mm
Quick highlights
Performance snapshot
Built to drive door latches, trunks and lift gates.
- Electric central-locking actuator
- 50,000-cycle service life
- IP54 sealed housing
- 12V / 24V, 25–50 N

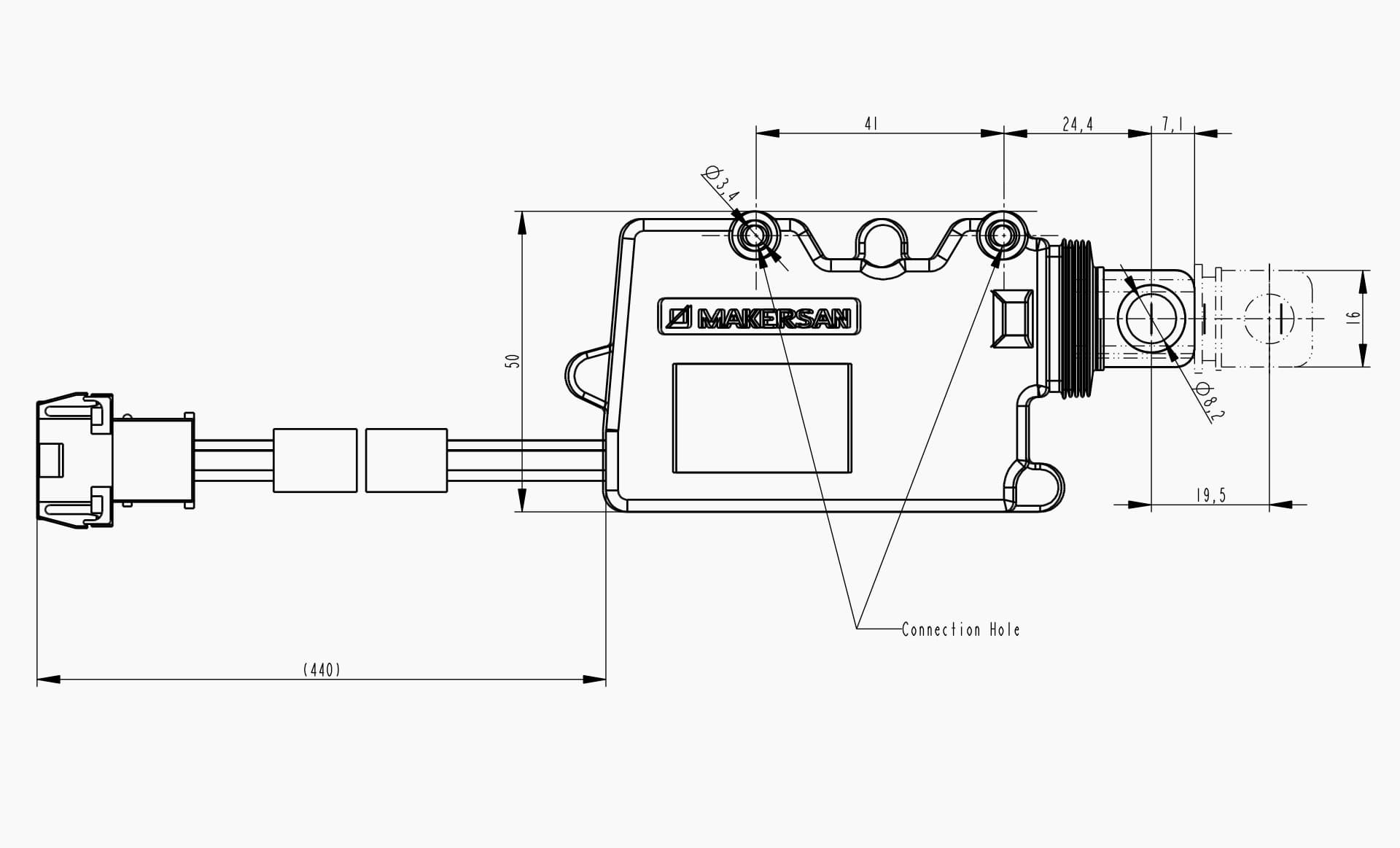

Engineering views
Technical overview
- Type
- DC motor actuator
- Supply voltage
- 12V or 24V
- Force
- 25 N (50 N configurable)
- Stroke
- 20 mm
- Weight
- 0.15 kg
- Service life
- 50,000 cycles
- Protection
- IP54
- Operating temperature
- -30°C to +80°C
- Material
- 30% glass-fibre reinforced polyamide
- Connector
- None or AMP 928161-2
Module capabilities
- Drives door latches, trunk lids and lift gates
- 12V or 24V supply, 25 N or 50 N force
- 20 mm stroke, 50,000-cycle rated
- High-quality DC motor and micro-switches
- IP54 housing in 30% glass-fibre reinforced polyamide
- Supplied with or without AMP 928161-2 connector
