M-35 / Door Access Systems
MO 100
Pneumatic Actuator · Single-action pneumatic actuator for latches, trunks and lift gates
MO 100 is a single-action pneumatic actuator for door latches, trunk lids and lift gates, with a stainless steel spring and automotive-grade O-ring, fitting and seal for high corrosion resistance.
- Action
- Single, pneumatic
- Pressure
- 5–7.5 Bar
- Cycles
- >60,000
Quick highlights
Performance snapshot
Built for pneumatic latch, trunk and lift-gate actuation.
- Single-action pneumatic actuator
- >60,000-cycle service life
- Two piston / stroke options
- Stainless steel spring

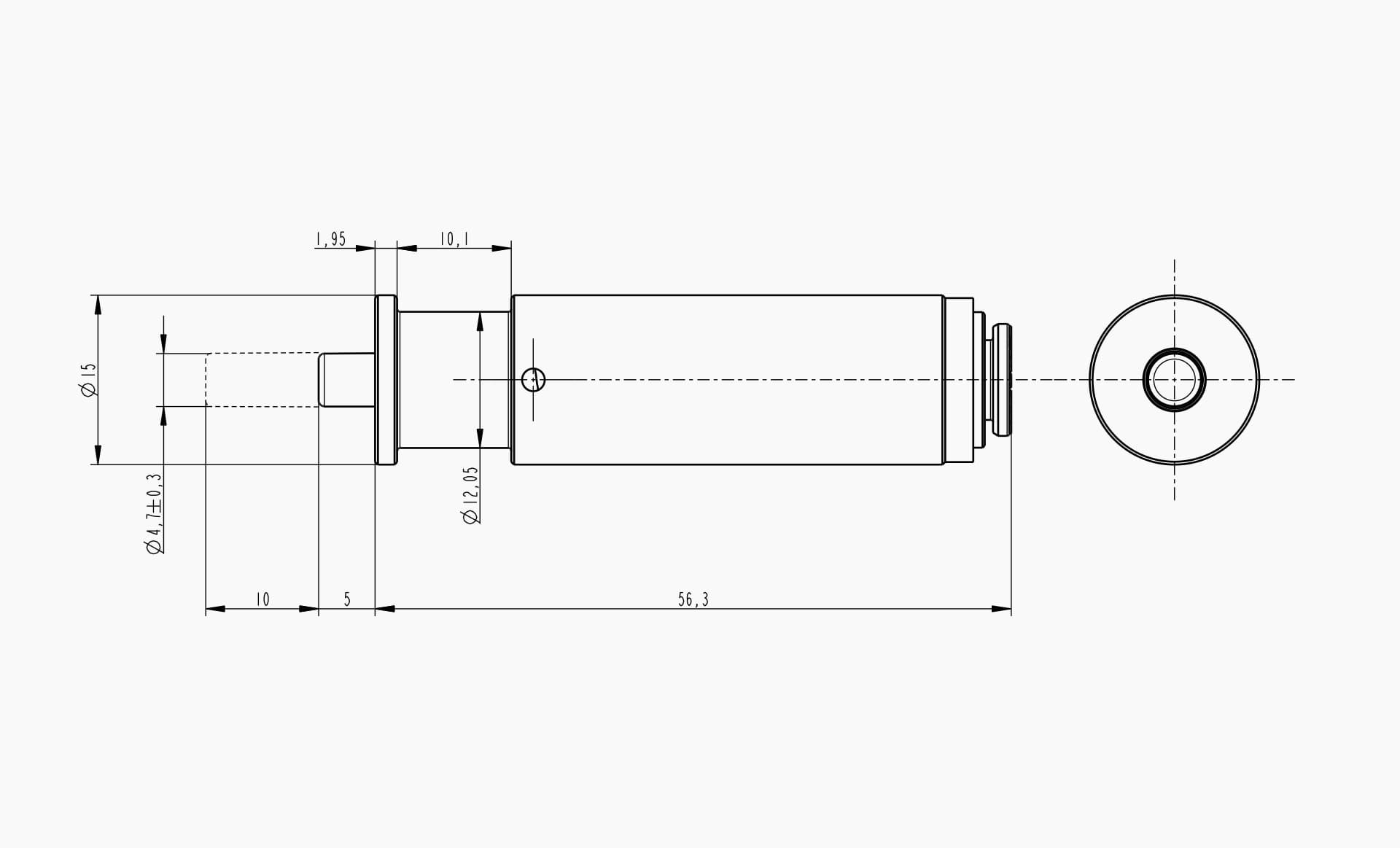

Engineering views
Technical overview
- Type
- Pneumatic actuator (single action)

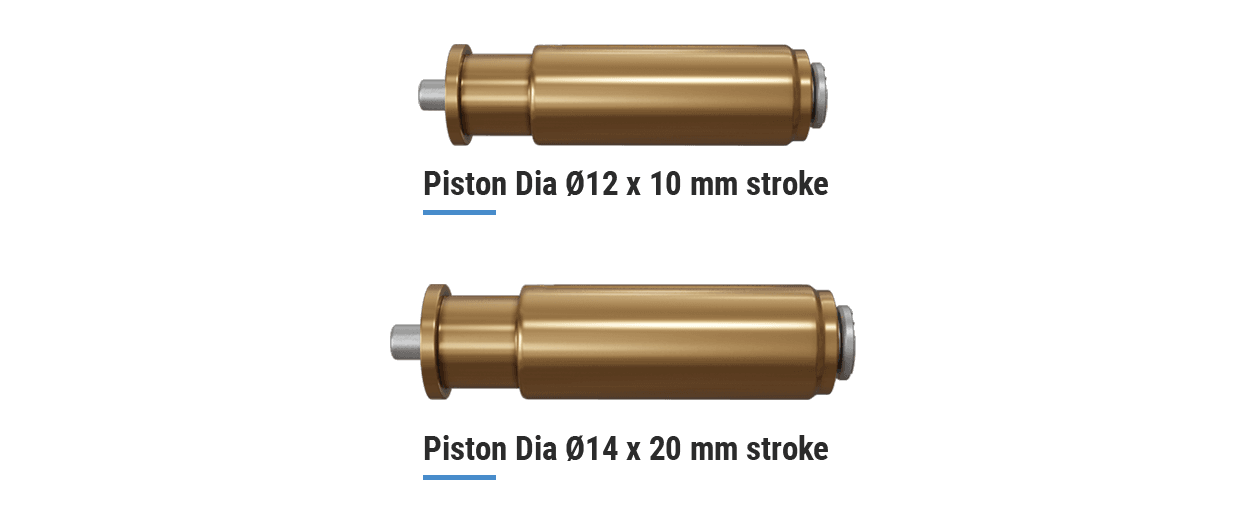

- Piston / stroke
- Ø12 x 10 mm or Ø14 x 20 mm
- Working pressure
- 5–7.5 Bar
- Pipe entry
- Ø6 mm
- Service life
- >60,000 cycles
- Operating temperature
- -30°C to +80°C
- Spring
- Stainless steel
- Sealing
- Automotive O-ring, fitting and seal
Module capabilities
- Single-action pneumatic actuation
- Piston Ø12 x 10 mm or Ø14 x 20 mm stroke
- 5–7.5 Bar working pressure, Ø6 mm pipe entry
- >60,000-cycle service life
- Stainless steel spring; automotive O-ring, fitting and seal
- High corrosion resistance
