M-38 / Door Access Systems
MO 651 H5X
Remote Keyless Entry — H5X · 12–24V CAN RKE unit with remote and dash-output options
MO 651 H5X is a remote keyless entry control unit for door latches, trunk lids and lift gates, on a 12–24V supply over a CAN (SAE J1939) bus, with build options for remote control and a dash output (H50/H51/H52) and code-rolling security.
- Supply
- 12V / 24V
- Bus
- CAN / J1939
- Zones
- Up to 3
Quick highlights
Performance snapshot
Built for CAN remote keyless entry with dash output.
- 12–24V supply
- Remote and dash-output build options
- CAN / SAE J1939
- Up to 3-zone access control

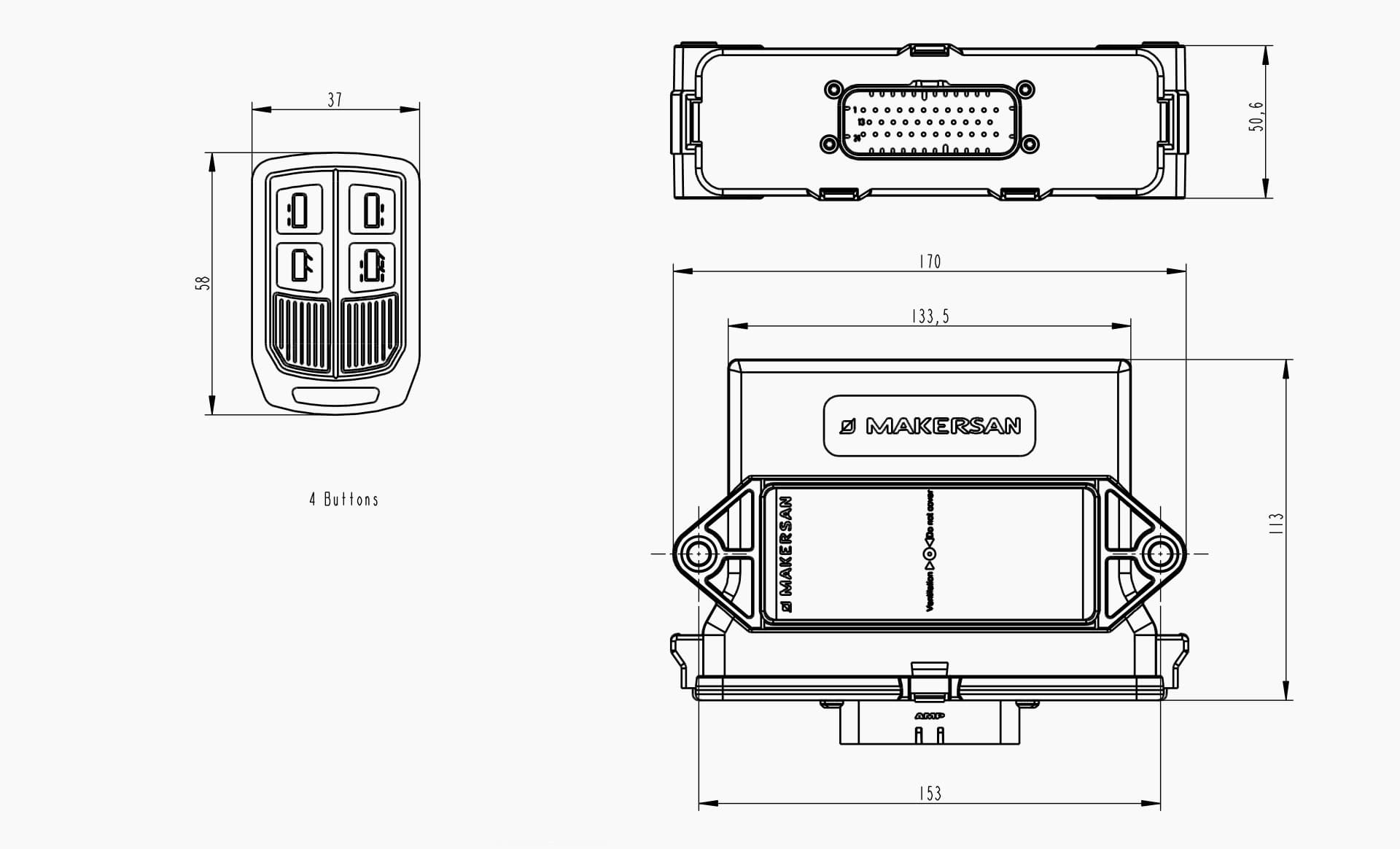

Engineering views
Technical overview
- Type
- Remote keyless entry control unit
- Order code
- MO 651-H5X-SXXXX
- Supply voltage
- 12–24V
- Bus
- CAN (SAE J1939)
- Variants
- H50 remote / H51 no remote / H52 remote + dash
- Zones
- Up to 3
- Security
- Code rolling
- Material
- 30% glass-fibre reinforced polyamide
Module capabilities
- Remote keyless entry for door latches, trunk lids and lift gates
- 12–24V supply
- CAN bus, SAE J1939
- Build options: remote (H50), no remote (H51), remote + dash output (H52)
- Code-rolling technology (prevents code grabbing)
- Multi-zone access control (up to 3 zones)
Need a custom configuration?
Contact EngineeringTell our engineering team about your vehicle's locking points, supply voltage and CAN bus. We'll match the right RKE control unit, key fobs and electric or pneumatic actuators — keyed alike across the fleet.
