MO 377
Fingertip Joystick · Single-axis fingertip joystick with multiple actuation feels
The MO 377 is a single-axis fingertip joystick offering spring-return, detent, rocker, friction and back-turn actuation feels. Contactless hall-effect sensing, laser-engraved legends and seven colour options make it a flexible secondary control.
- Axis
- Single-axis
- Cycles
- 5M+ spring-return
- Sealing
- IP6K9K / IP54
Quick highlights
Performance snapshot
Built for ergonomic single-axis fingertip control.
- +5 million cycles (spring-return)
- Multiple actuation feels in one footprint
- IP6K9K electronics / IP54 mechanical
- ±30° rocker/friction, ±35° detent, 60° back-turn

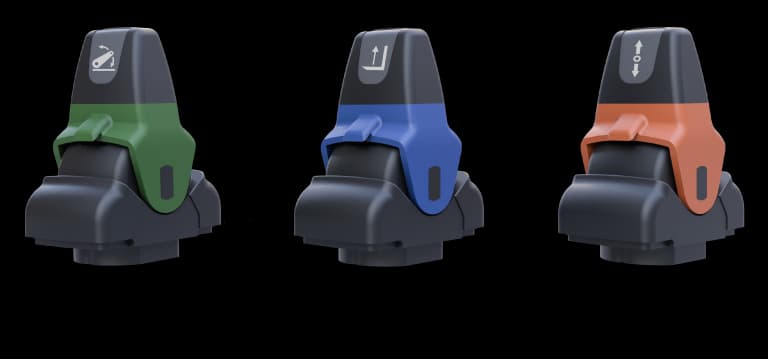

- Seven RAL colour options
- Laser-engraved legends

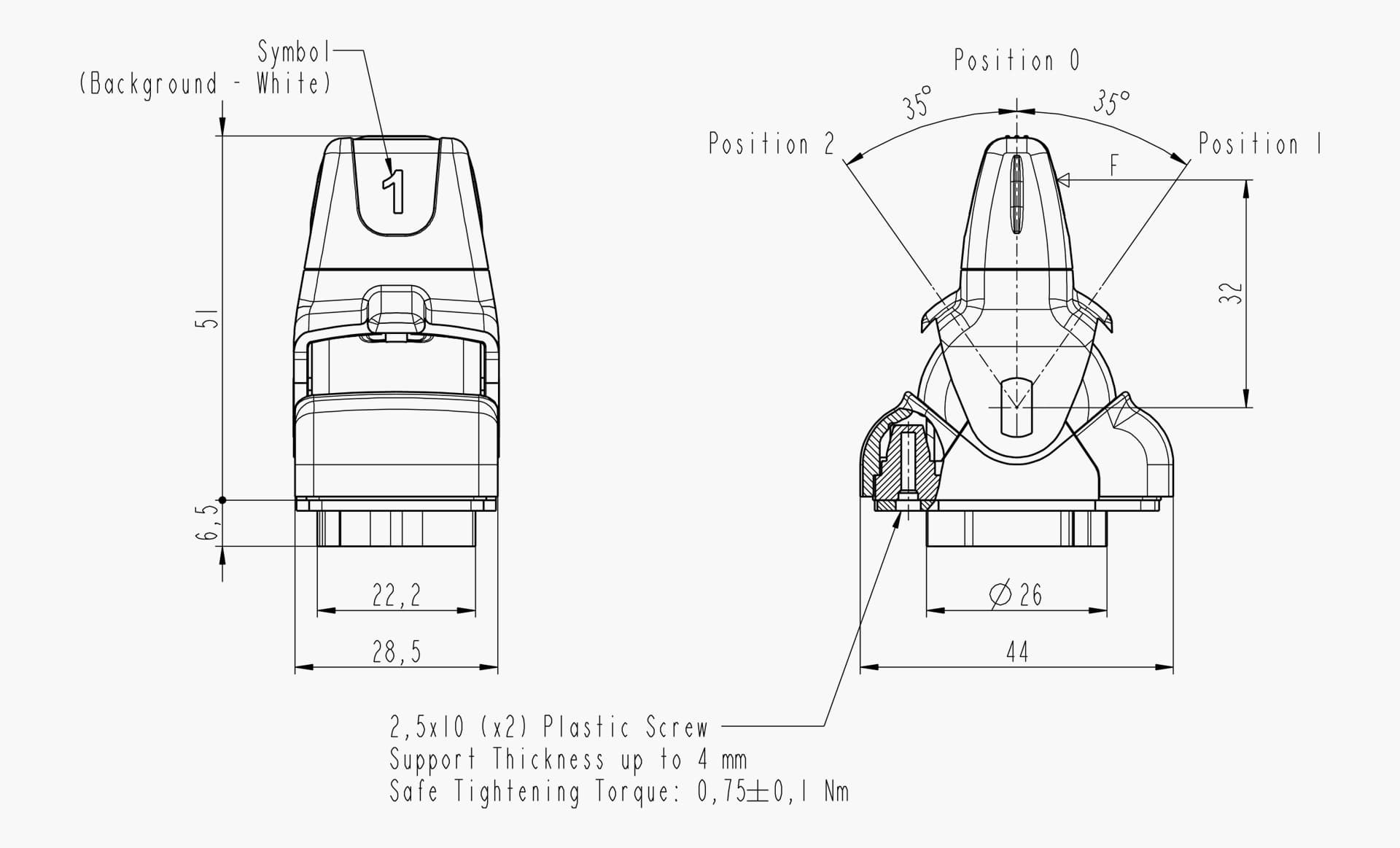

Engineering views
Technical overview
- Sensing principle
- Contactless hall-effect
- Axis
- Single-axis
- Operating angle
- ±30° rocker/friction · ±35° detent · 60° back-turn
- Supply voltage
- 5V or 8-32V
- Output
- Analog 0-5V ratiometric / PWM 100-500 Hz
- Redundancy
- Redundant or full redundant
- Ingress protection
- IP6K9K electronics / IP54 mechanical
- Lifetime
- +5M spring-return · +1M detent · +1M rocker
- Connectors
- 250mm loose cable / Molex Micro-Fit
- Operating temperature
- -40°C … +85°C
Module capabilities
- Contactless hall-effect, redundant or full-redundant options
- Single-axis with spring-return, detent, rocker, friction and back-turn feels
- Ratiometric analog (0-5V) or PWM (100-500 Hz) output
- Laser-engraved customizable legends
- Seven RAL colour options
- 5V or 8-32V supply
- Customizable signal program, wire harness and colour
Order Code
| MO 377 - | HXX - Option | Detent Description |
|---|---|---|
| Hardware | H10 | full redundant · H16 - redundant |
| Detent | 0-8 | no detent through single-side detent |
| Colour | red / green / yellow / black / blue / orange / gray (RAL) | |
| Program | P001-P018 | actuation signal programs |
Example: MO 377 - H10 - 0 - black - 0 - P001 - 00
