M-08 / Joysticks
MO 387
Joystick Grip · Modular analog grip with interchangeable front panel
The MO 387 is a multifunctional modular joystick grip for the MO 391 base, available in right-hand, left-hand and symmetric forms. The interchangeable front panel takes up to five push buttons, two thumbwheels or a micro joystick, with analog output.
- Type
- Modular grip
- Output
- Analog
- Sealing
- IP67
Quick highlights
Performance snapshot
Built as the modular command surface for midi joysticks.
- Interchangeable front-panel control layout
- Presence detection button on rear
- Up to 2 million cycles (buttons & thumbwheels)

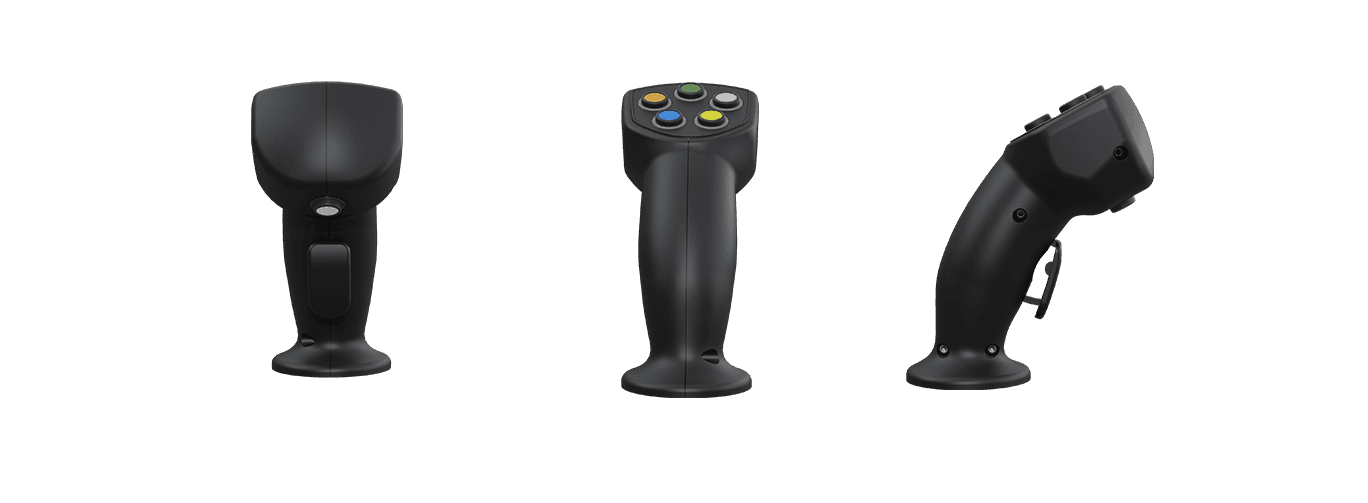

- Right, left and symmetric handle forms
- IP67 ingress protection
- Operating temperature -40°C … +85°C

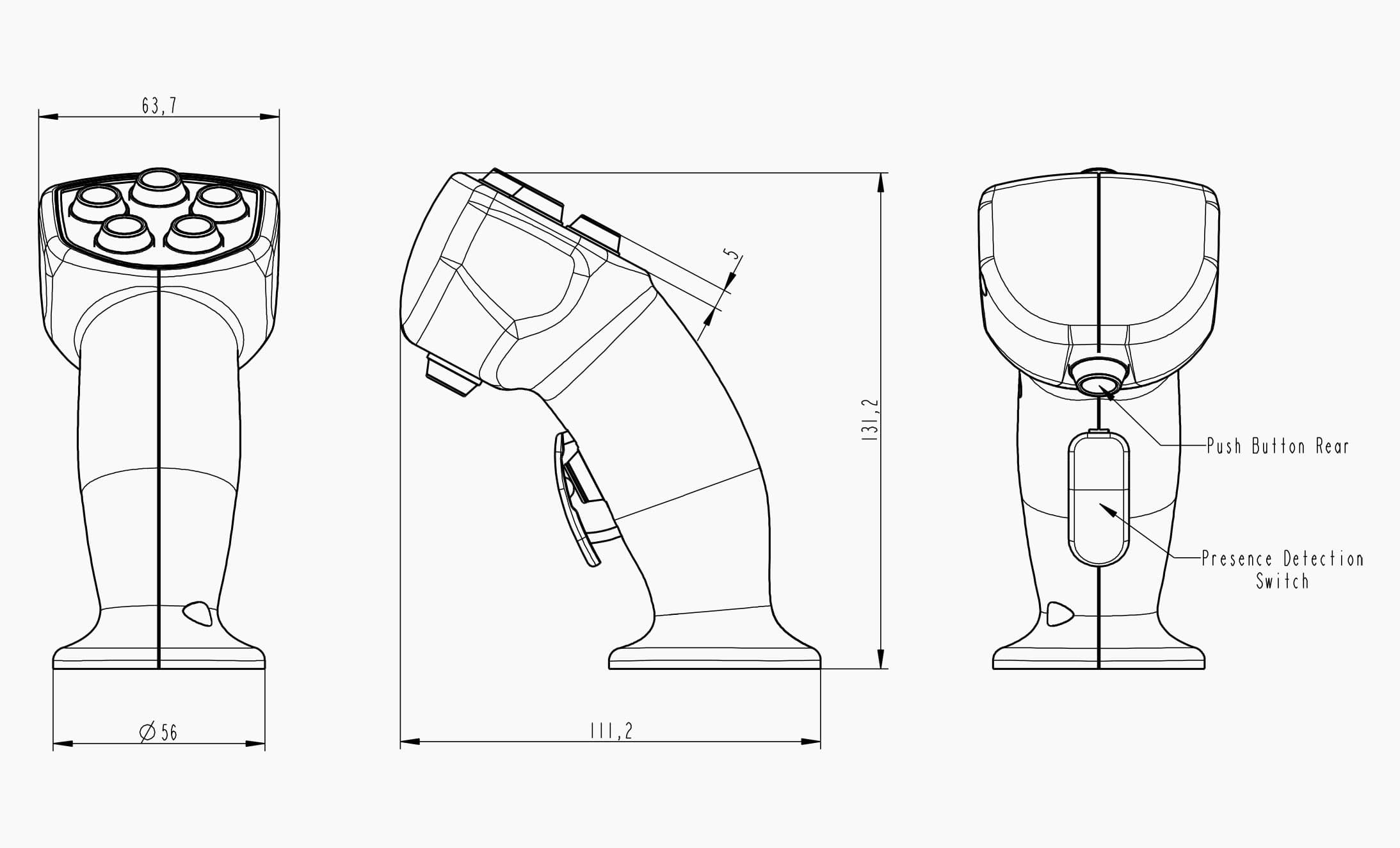

Engineering views
Technical overview
- Type
- Multifunctional modular grip
- Rear controls
- 1 push button + 1 presence detection button
- Front controls
- Up to 5 push buttons / 2 thumbwheels / micro joystick
- Thumbwheel feels
- Spring-return / rocker / toggle
- Output
- Analog
- Connectors
- Molex 10-12 pin / loose cable / Molex Micro-Fit
- Ingress protection
- IP67
- Lifetime
- Up to 2 million cycles
- Operating temperature
- -40°C … +85°C
Module capabilities
- Multifunctional modular design, right / left / symmetric
- Rear: 1 push button + 1 presence detection button

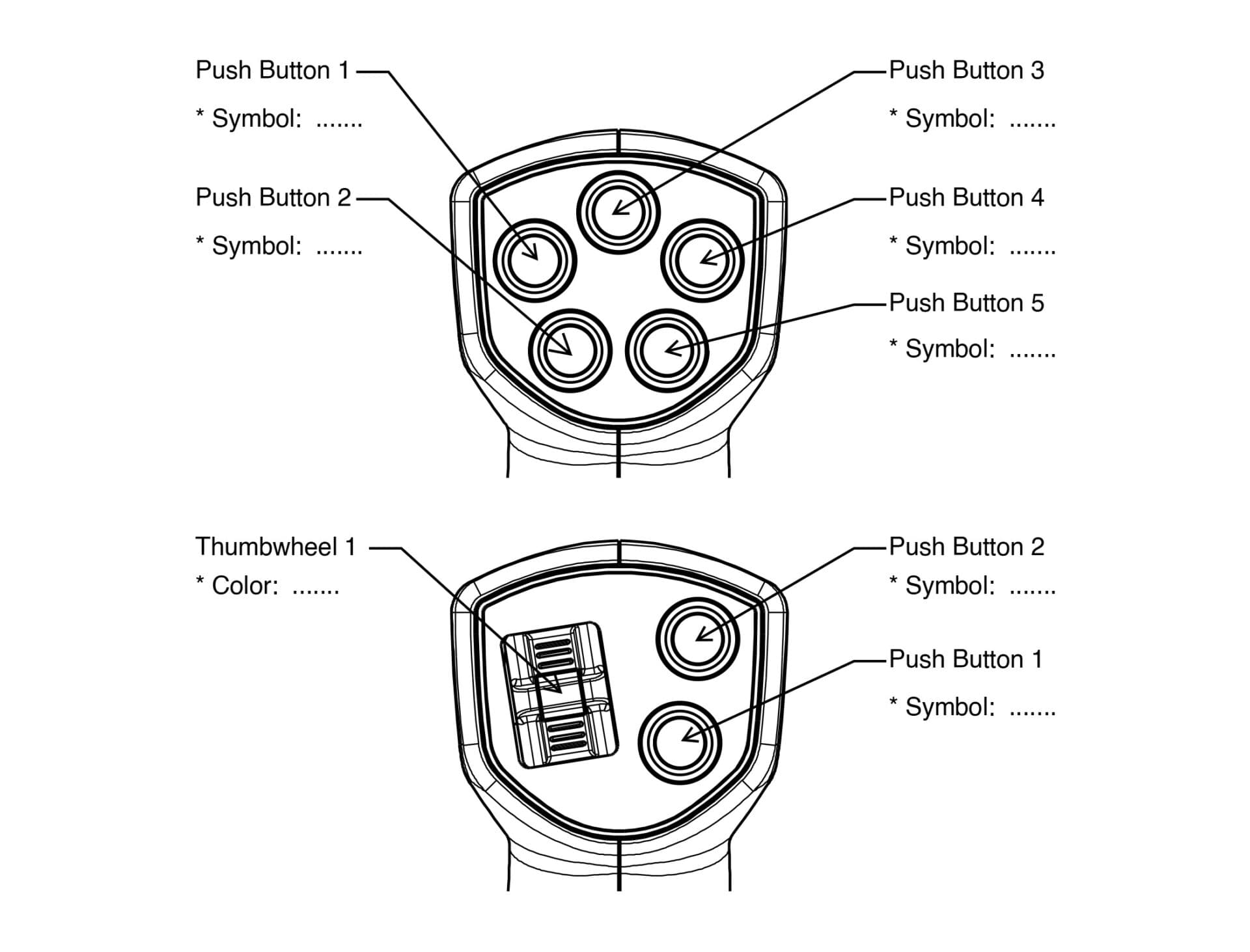

- Front: up to 5 push buttons, 2 thumbwheels, or thumbwheel/micro-joystick combos
- Spring-return, rocker and toggle thumbwheel options
- Analog output
- Molex 10-12 pin connector
- Loose cable (27 AWG) or Molex Micro-Fit options
Order Code
| MO 387 - | Rear - Option | Front Panel Description |
|---|---|---|
| Rear | 0-3 | button / presence-detection-switch options |

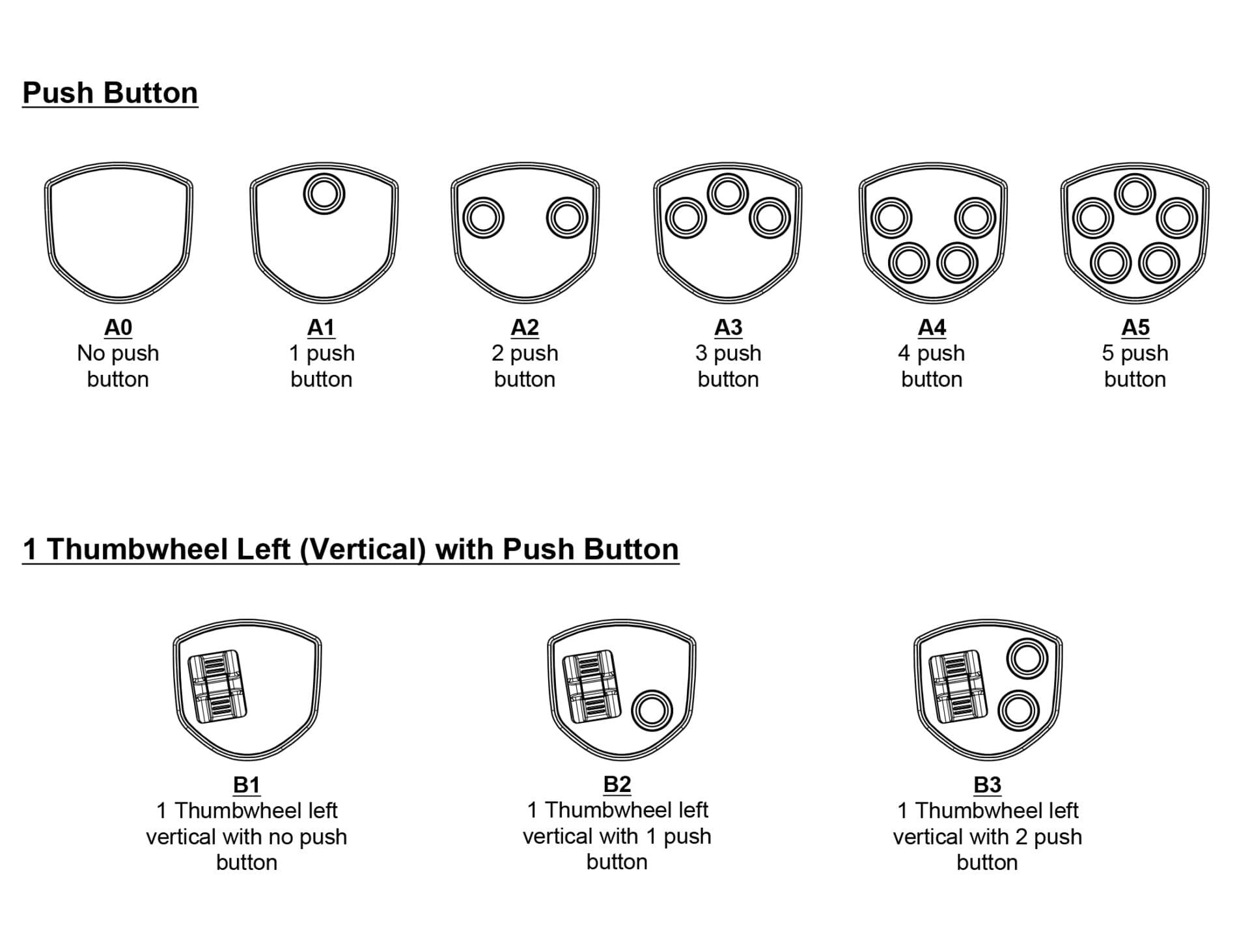

| Front panel | A0-H2 | 1-5 push buttons, thumbwheels, rockers, toggles, micro joystick |
| Connection | 00 | loose cable · 01 - Molex Micro-Fit |
Example: MO 387 - 0 - A0 - 01
Need a custom configuration?
Contact EngineeringTell our engineering team about your machine platform, function map and bus protocol. We'll match the grip, switch layout, axis count and output configuration to your operator workflow.
