MO 390
Joystick Base · Full-size joystick base with selectable output and feel
The MO 390 is the full-size joystick base behind the MO 390 & 394 system. Ten hardware versions cover analog, PWM, current and CAN outputs, with detent, hold and friction feels and 2-axis or single-axis actuation.
- Axes
- 2-axis / single
- Output
- Analog / PWM / CAN
- Sealing
- IP67
Quick highlights
Performance snapshot
Built as the configurable base for full-size joysticks.
- Ten hardware versions (H10-H20)
- Up to 5 million lifetime cycles
- Detent, hold and friction feel options
- Analog, PWM, current and CAN outputs
- IP67 ingress protection
- Supply 5V or 8-32V

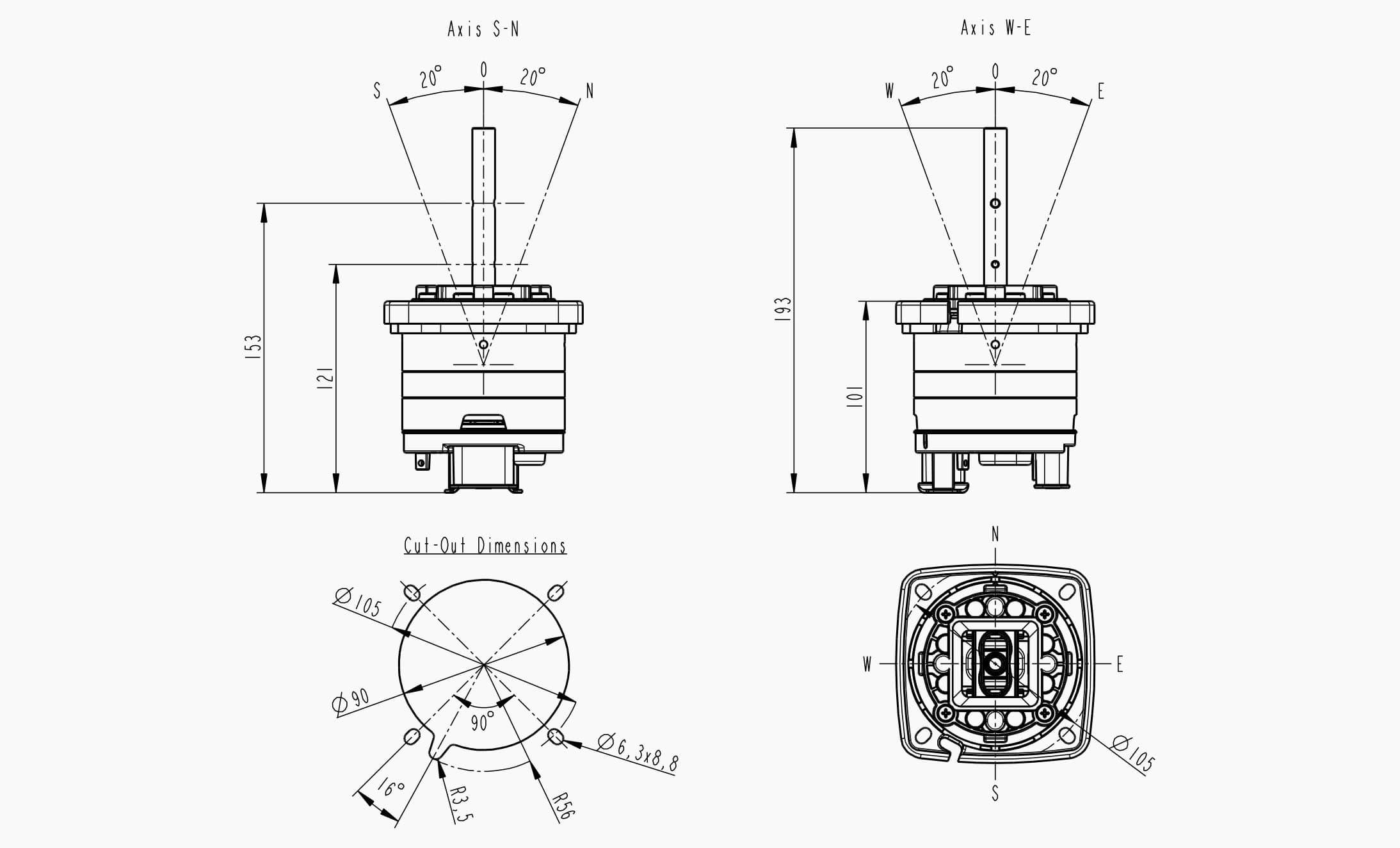

Engineering views
Technical overview
- Sensing principle
- Contactless hall-effect
- Actuation

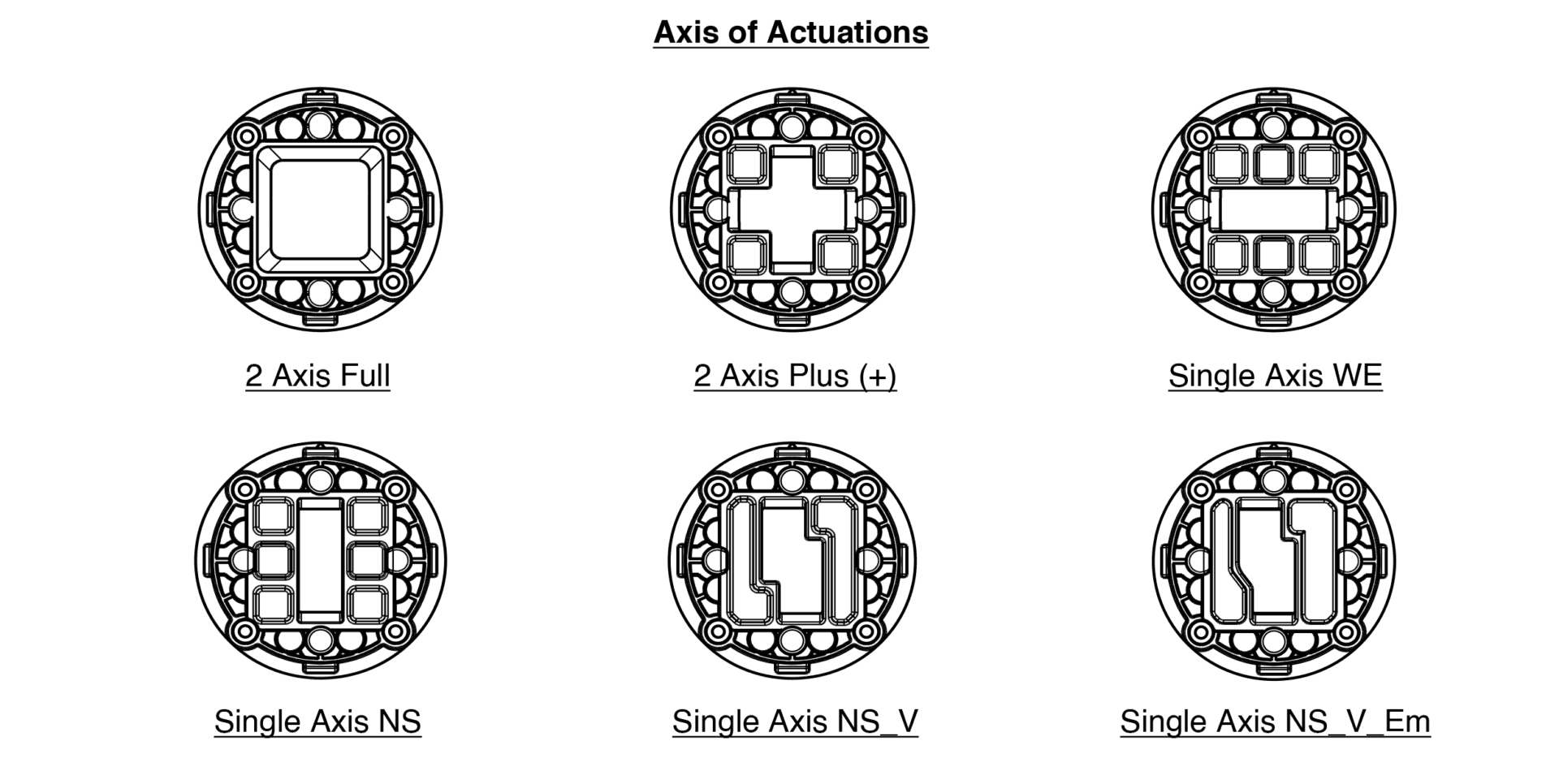

- 2-axis full / 2-axis plus / single-axis
- Operating angle
- ±20° (self-centering)
- Feel options
- Detent return / detent hold / friction
- Supply voltage
- 5V or 8-32V (by version)
- Output
- 0-5V / 0-32V PWM / 4-20mA / high-side / CAN
- Redundancy
- Full redundant
- Connectors
- Deutsch 8-pin / Tyco 18-pin
- Ingress protection
- IP67
- Lifetime
- Up to 5 million cycles
- Operating temperature
- -40°C … +85°C
Module capabilities
- Contactless hall-effect measuring principle, full redundant
- 2-axis full, 2-axis plus or single-axis actuation
- ±20° self-centering lever with detent, hold and friction options
- 0-5V analog, 0-32V PWM, 4-20mA, high-side or CAN outputs
- Deutsch 8-pin and Tyco 18-pin connectors
- High-current power output option
- Customizable output signal program
Order Code
| MO 390 - | HXX - Option | Axis Description |
|---|---|---|
| Hardware | H10-H19 | analog / PWM / current output combinations |
| Hardware | H20 | CAN (SAE J1939 / CANopen) |
| Axis | WE / NS / NS_V | 2-axis or single-axis layouts |
| Feel | detent return / detent hold / friction |
Minimum order quantities may apply to some variants.
Need a custom configuration?
Contact EngineeringTell our engineering team about your machine platform, function map and bus protocol. We'll match the grip, switch layout, axis count and output configuration to your operator workflow.
