MO 390 & 394
Multi-Axis CAN Joystick · Full-size grip joystick system with contactless hall sensing

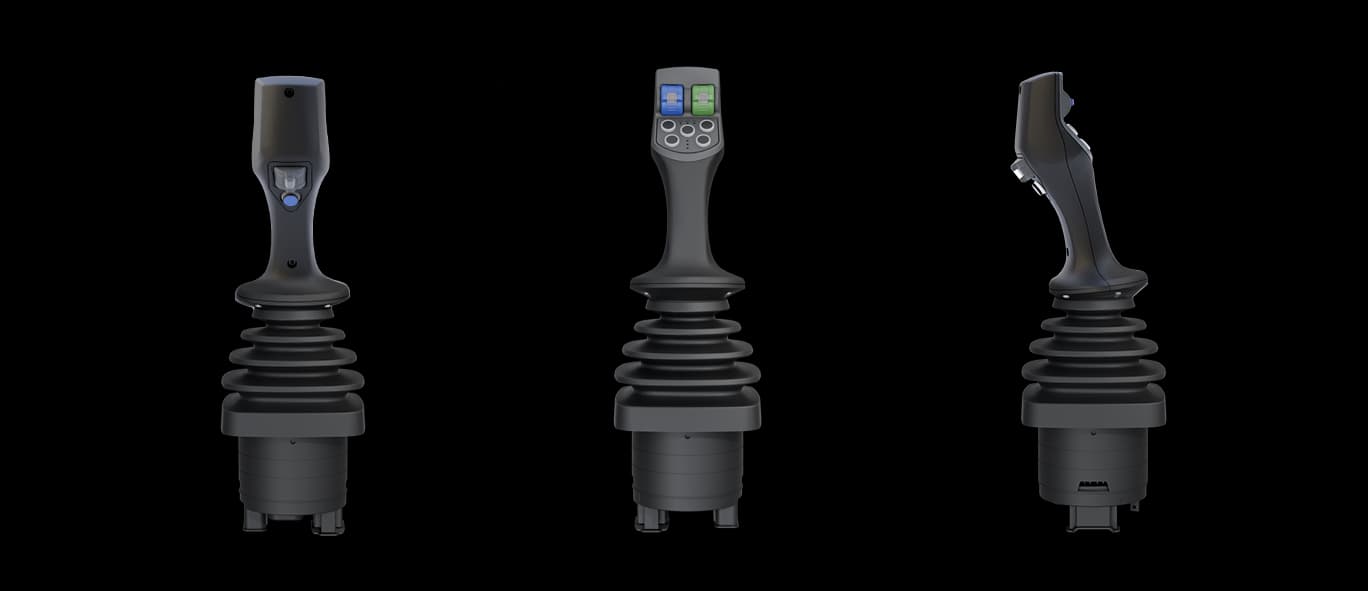

The MO 390 & 394 is a full-size multi-axis joystick system pairing the MO 390 base with the customizable MO 394 grip. Contactless hall-effect sensing, full redundancy and a sealed boot make it the primary command device for demanding cab applications.
- Axes
- 2-axis / single
- Output
- CAN J1939 / CANopen
- Sealing
- IP67
Quick highlights
Performance snapshot
Built for primary multi-axis machine command.
- Up to 5 million lifetime cycles
- ±20° self-centering operating angle
- Full redundant contactless hall sensing

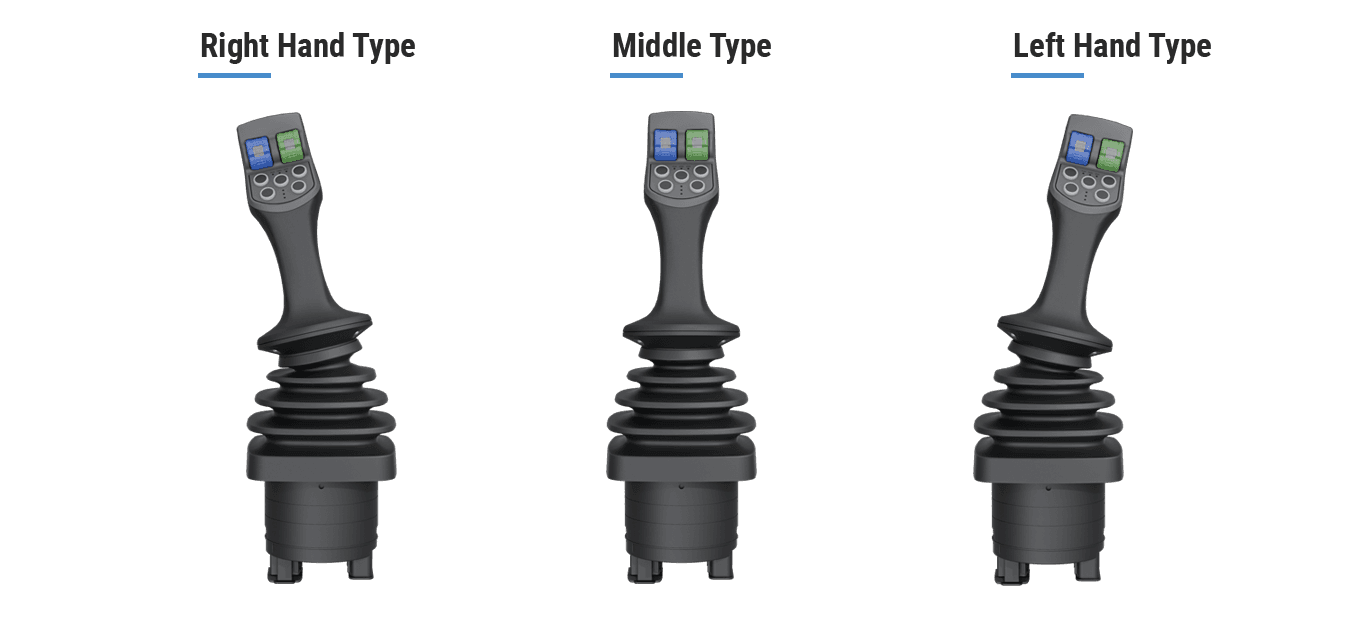

- RX, MX and LX mounting variants
- IP67 sealed boot for cab dust and wash-down
- Supply 5V or 8-32V
Engineering views
Technical overview
- Sensing principle
- Contactless hall-effect
- Actuation
- 2-axis full / 2-axis plus / single-axis
- Operating angle
- ±20° (self-centering)
- Supply voltage
- 5V or 8-32V
- Output
- CAN J1939 / CANopen (high-current option)
- Redundancy
- Full redundant
- Connectors
- Deutsch 8-pin / Tyco 18-pin
- Ingress protection
- IP67
- Lifetime
- Up to 5 million cycles
- Operating temperature
- -40°C … +85°C
Module capabilities
- Contactless hall-effect measuring principle, full redundant
- 2-axis full, 2-axis plus or single-axis actuation
- ±20° self-centering lever
- Customizable grip with thumbwheels and buttons
- Deutsch 8-pin and Tyco 18-pin connectors
- High-current power output option
- CAN J1939 or CANopen output
Order Code
| MO 390&394 - | Variant - Option | Description |
|---|---|---|

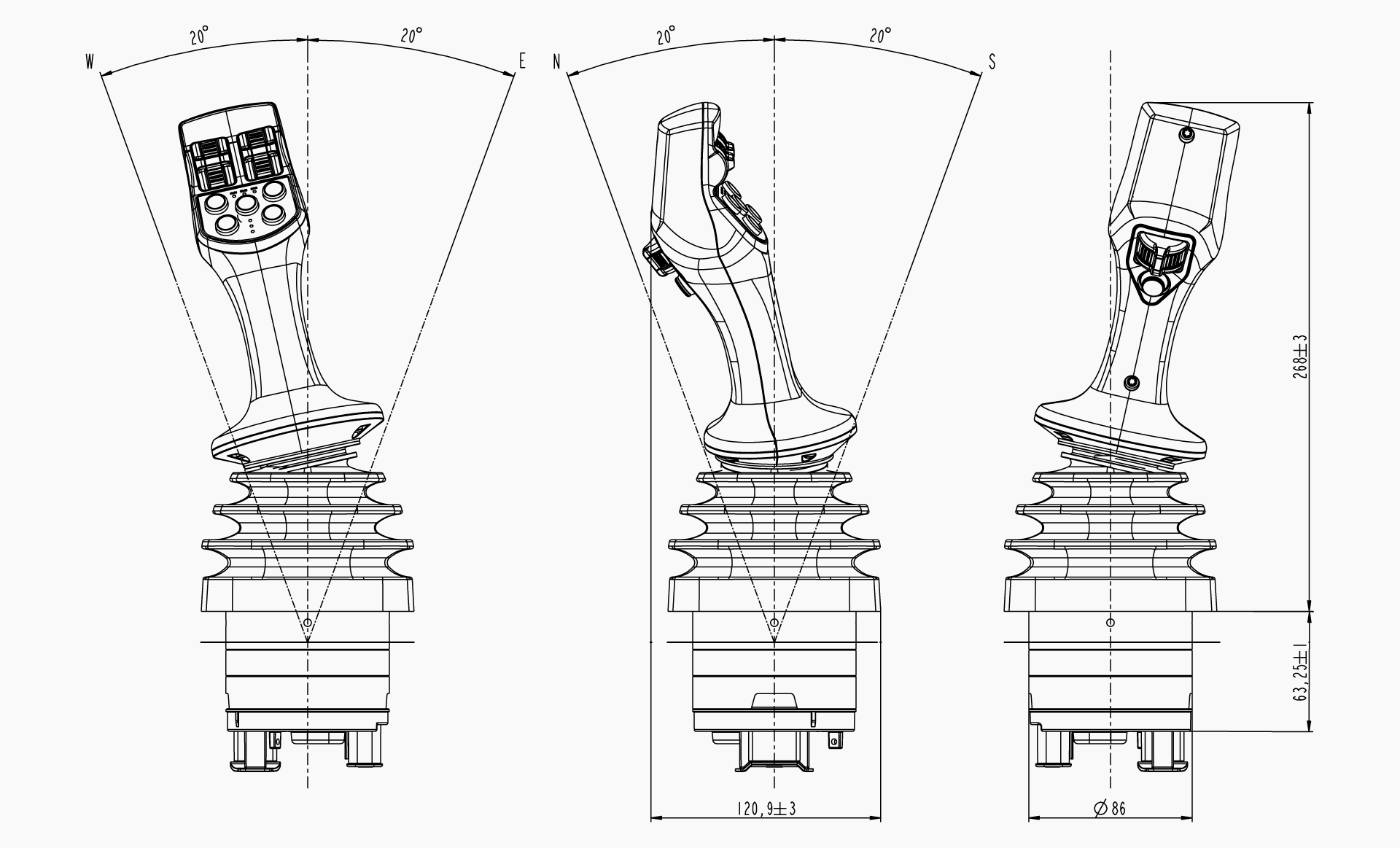

| Variant | RX | Right-mount grip system |

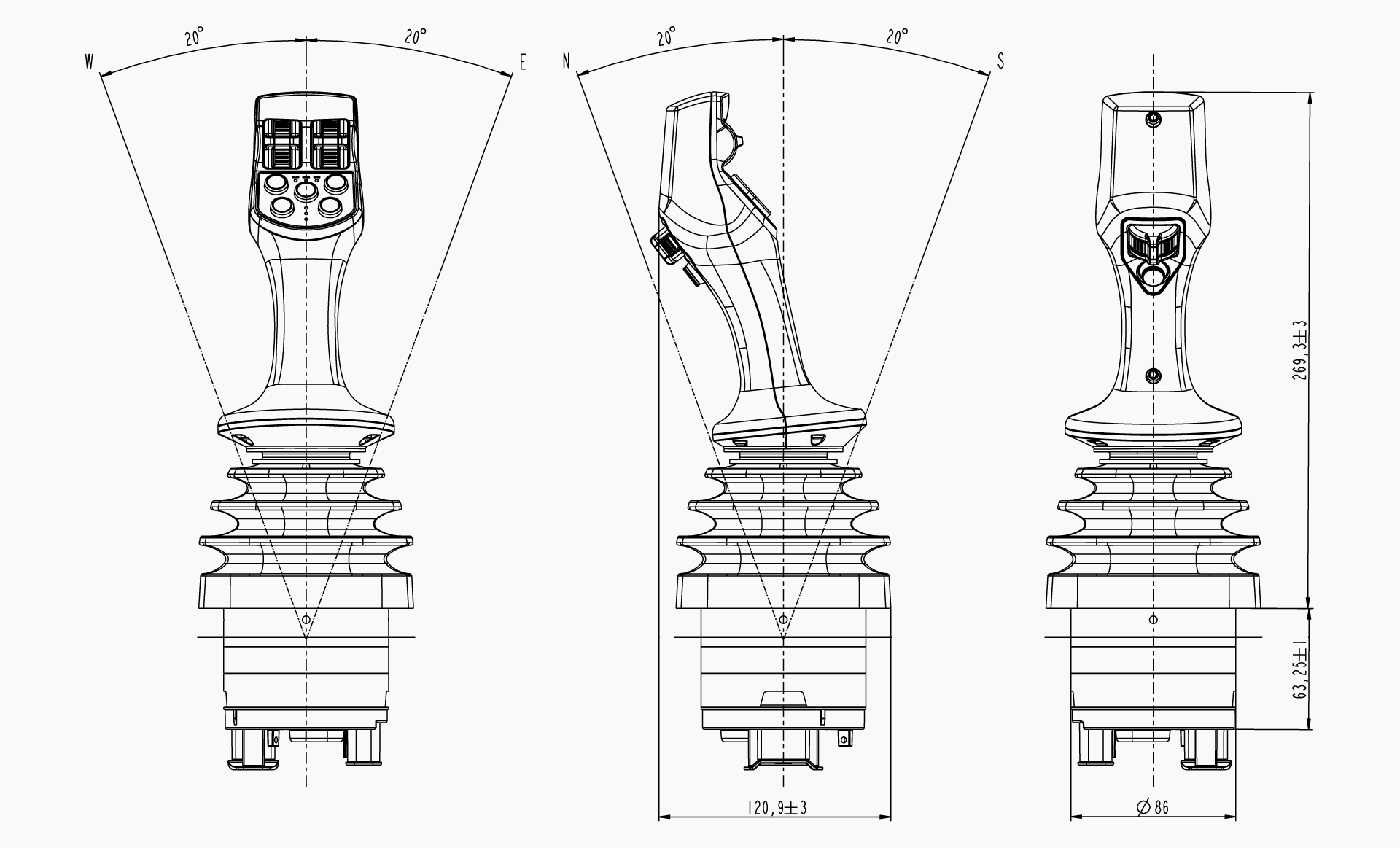

| Variant | MX | Middle-mount grip system |

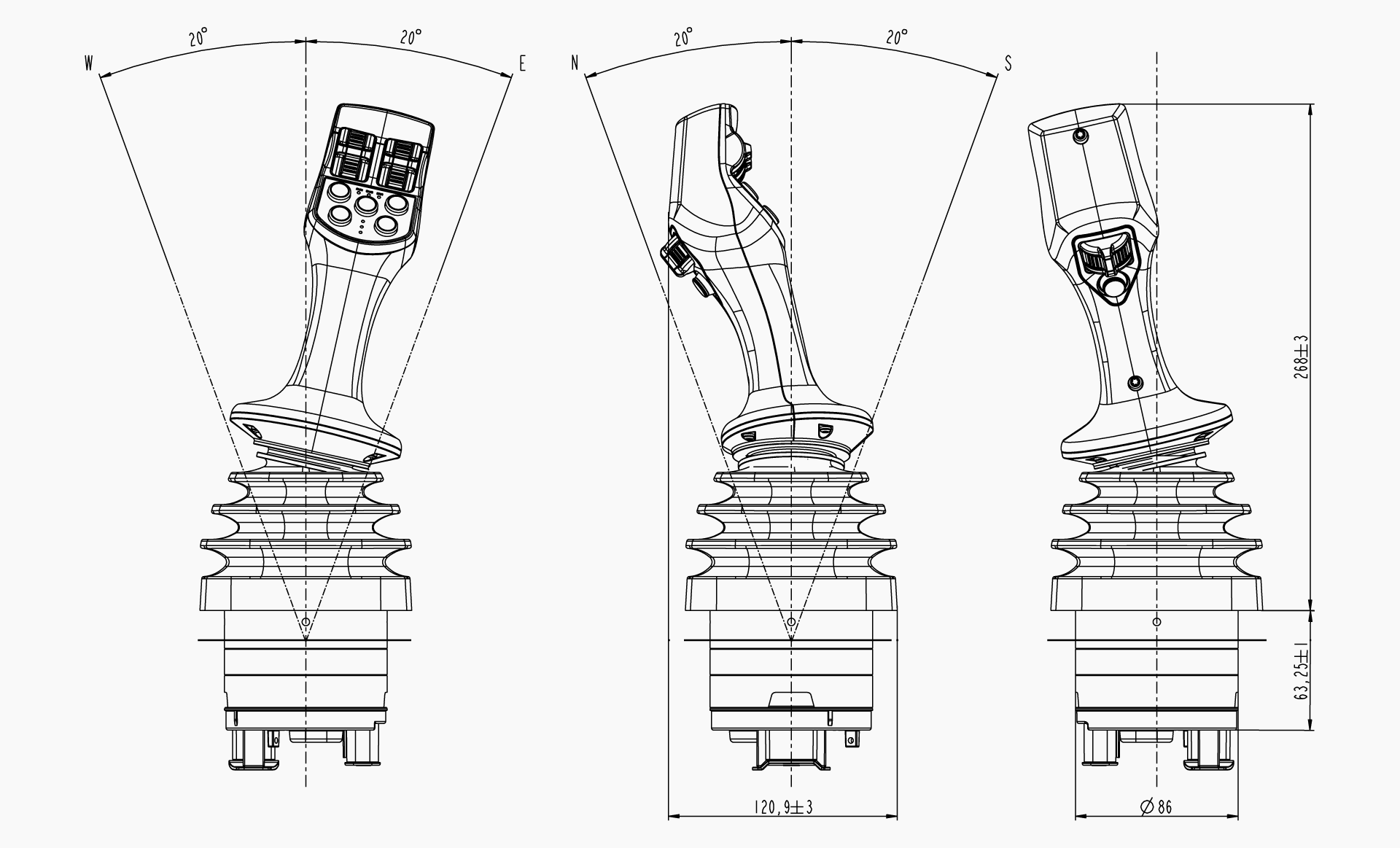

| Variant | LX | Left-mount grip system |
| Output | CAN | SAE J1939 or CANopen |
The MO 394 grip is available with analog output for full-assembly configurations.
Need a custom configuration?
Contact EngineeringTell our engineering team about your machine platform, function map and bus protocol. We'll match the grip, switch layout, axis count and output configuration to your operator workflow.
