MO 391
Joystick Base · Midi joystick base with analog, PWM and CAN output
The MO 391 is the midi joystick base behind the MO 391 & 387 system. Contactless hall-effect sensing and full redundancy support 2-axis full actuation with analog, PWM and CAN outputs over Deutsch, Tyco or Micro-Fit connectors.
- Axes
- 2-axis full
- Output
- Analog / PWM / CAN
- Sealing
- IP67
Quick highlights
Performance snapshot
Built as the configurable base for midi joysticks.
- Up to 5 million lifetime cycles
- ±20° self-centering operating angle
- Analog, PWM and CAN output options
- Multiple connector choices
- IP67 ingress protection
- Supply 5V or 8-32V

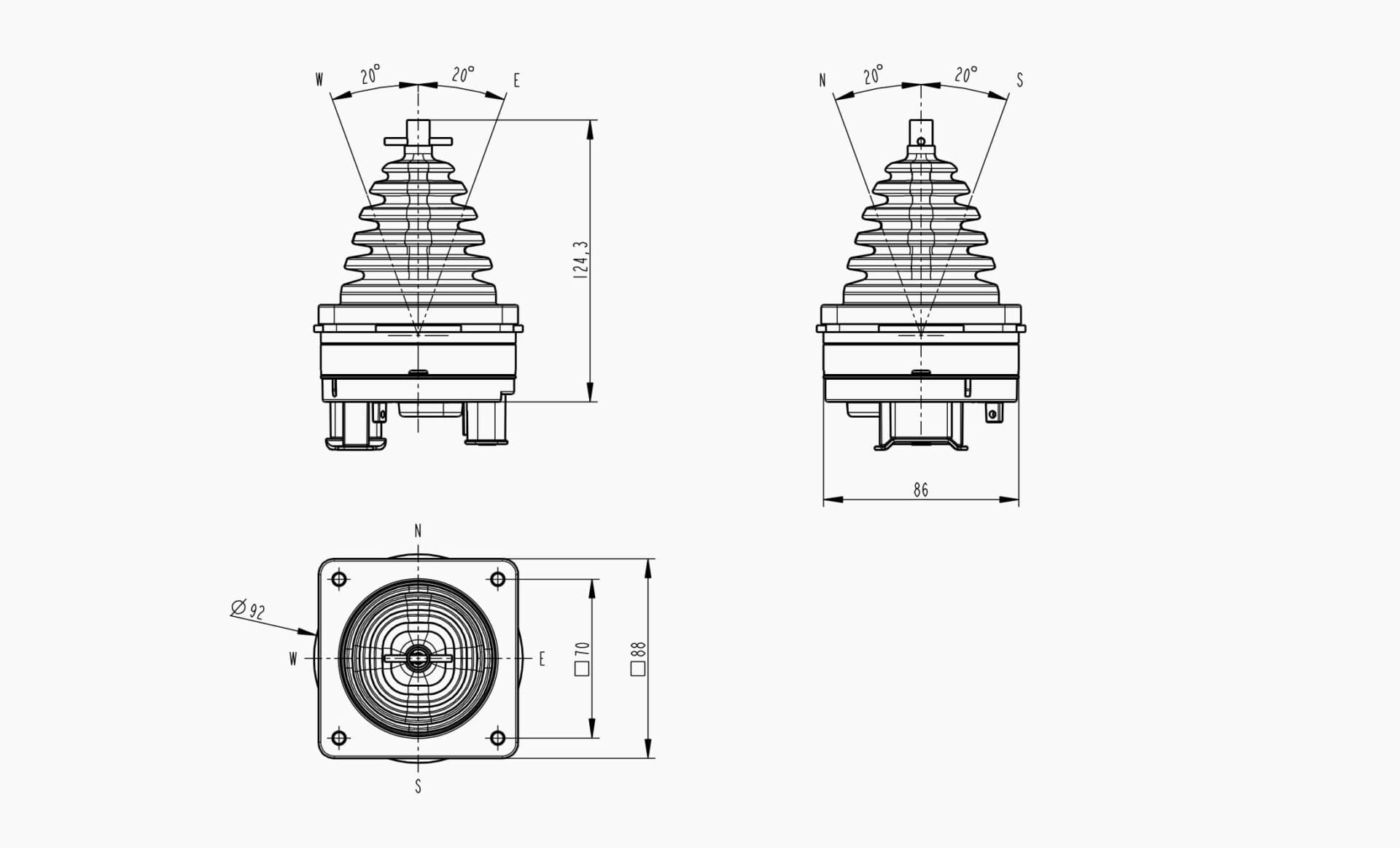

Engineering views
Technical overview
- Sensing principle
- Contactless hall-effect
- Actuation
- 2-axis full
- Operating angle
- ±20° (self-centering)
- Supply voltage
- 5V or 8-32V
- Supply current
- 30 mA typical (no load)
- Output
- Analog voltage / PWM / CAN (J1939 / CANopen)
- Redundancy
- Full redundant
- Connectors
- Deutsch 8-pin / Tyco 18-pin / Micro-Fit 10-12-pin
- Ingress protection
- IP67
- Lifetime
- Up to 5 million cycles
- Operating temperature
- -40°C … +85°C
Module capabilities
- Contactless hall-effect measuring principle, full redundant
- 2-axis full actuation, ±20° self-centering
- Analog voltage, PWM and CAN (J1939 / CANopen) outputs
- Deutsch 8-pin, Tyco 18-pin and Micro-Fit 10/12-pin connectors
- 30 mA typical supply current (no load)
- Customizable output signal program
- Dual Cross (P001) program option
Order Code
| MO 391 - | HXX - Option | Axis Description |
|---|---|---|
| Hardware | H10-H19 | supply / output combinations |
| Hardware | H20 | CAN (SAE J1939 / CANopen, selectable Node IDs) |
| Program | P001 | Dual Cross |
| Connector | Micro-Fit 10-pin / Micro-Fit 12-pin |
