M-06 / Joysticks
MO 393
Thumbwheel · Single-axis thumbwheel with spring-return, rocker or toggle feel
The MO 393 is a single-axis thumbwheel control with spring-return, rocker or toggle actuation. Contactless hall-effect sensing, sealed electronics and a choice of caps make it ideal for proportional secondary functions on grips and panels.
- Axis
- Single-axis
- Output
- Analog / PWM
- Sealing
- IP6K9K / IP54
Quick highlights
Performance snapshot
Built for proportional thumbwheel control.
- Up to 5 million cycles (spring-return)

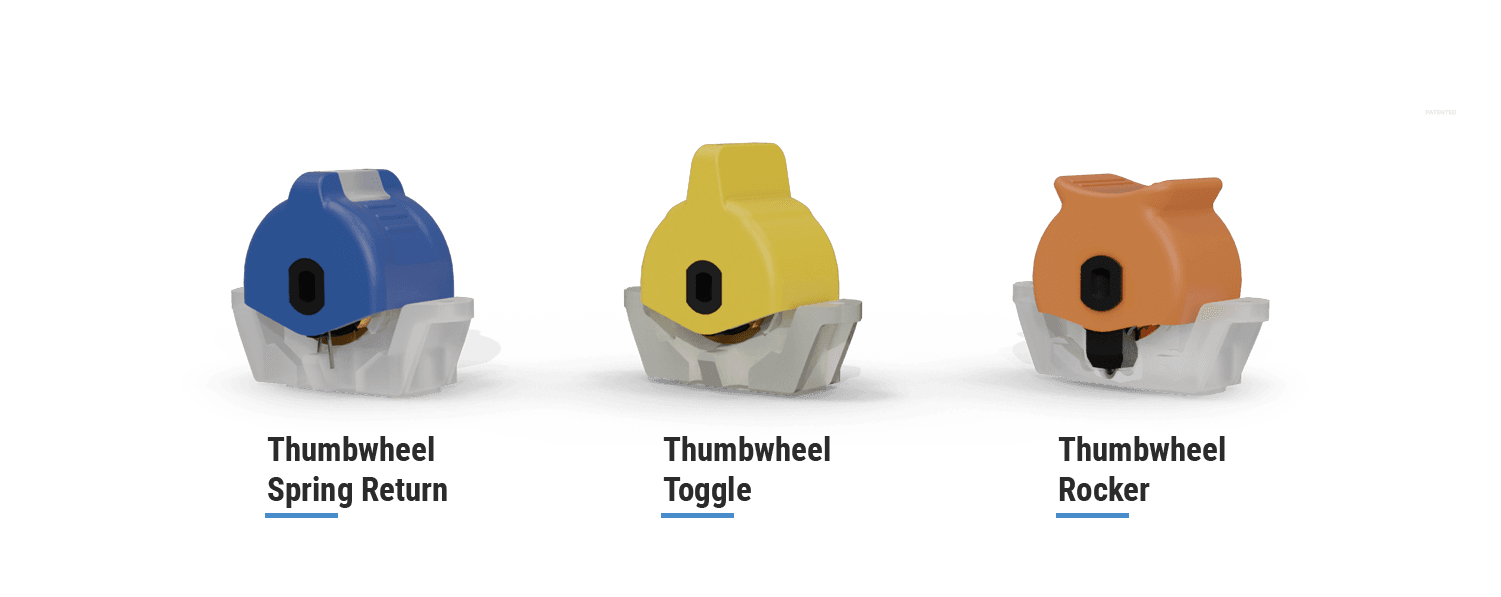

- Spring-return, rocker and toggle feels
- IP6K9K electronics / IP54 mechanical
- Analog or PWM output
- Optional LED in spring-return cap
- Seven RAL colour options

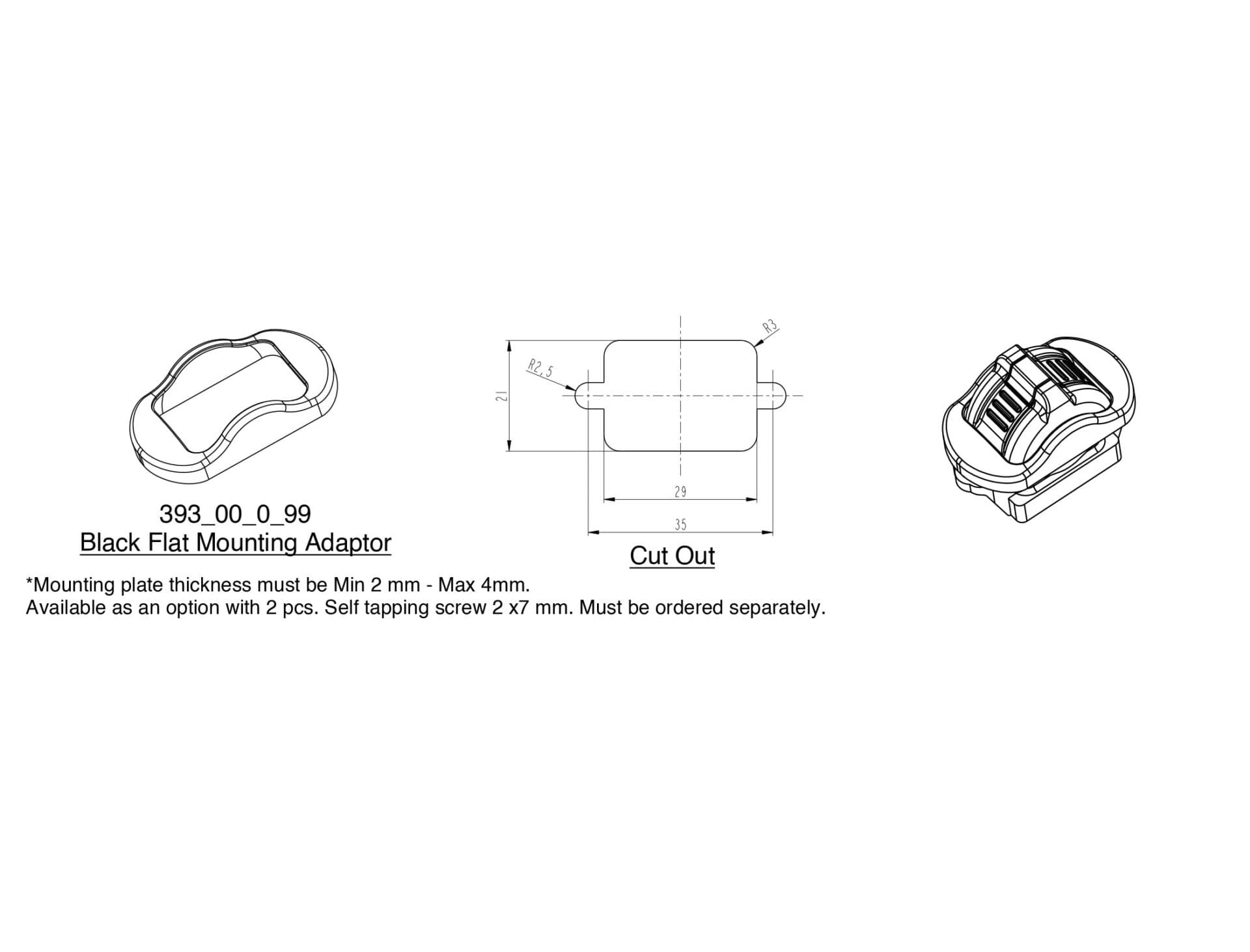

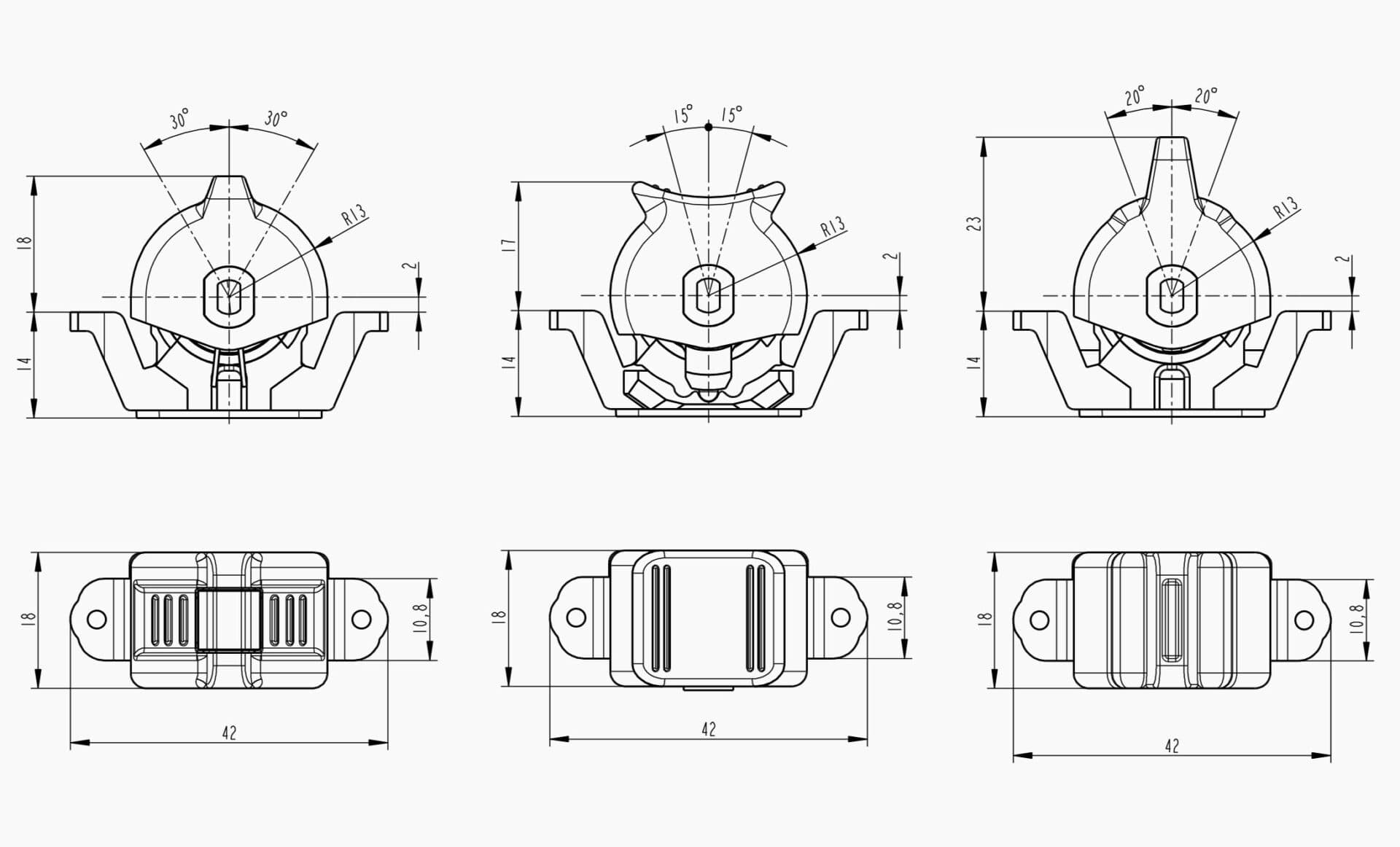

Engineering views
Technical overview
- Sensing principle
- Contactless hall-effect
- Axis
- Single-axis
- Operating angle
- ±30° max
- Supply voltage
- 5V or 8-32V
- Output
- Analog 0-5V ratiometric / PWM 100-500 Hz
- Redundancy
- Full redundant or redundant
- Ingress protection
- IP6K9K electronics / IP54 mechanical
- Lifetime
- 5M spring-return · 500k rocker · 1M toggle
- Connectors
- 250mm loose cable / Molex Micro-Fit
- Operating temperature
- -40°C … +85°C
Module capabilities
- Contactless hall-effect, full-redundant capability
- Spring-return, rocker and toggle actuation options
- ±30° max operating angle
- Ratiometric analog (0-5V) or PWM (100-500 Hz) output
- Short, thumb and long cap variants
- Seven RAL colour options
- Customizable signal program, wire harness and colour
Order Code
| MO 393 - | H1X - Option | Type Description |
|---|---|---|
| Hardware | H10 | 0-5V full redundant · H11 - 0-5V redundant |
| Type | 0/4/5/6 | spring-return caps · 2 - rocker · 3 - toggle |
| Program | P001-P008 | dual/single actuation programs |
| Connection | 00 | loose cable · 01 - Molex Micro-Fit |
Example: MO 393 - H10 - 0 - 1 - P001 - 00
Need a custom configuration?
Contact EngineeringTell our engineering team about your machine platform, function map and bus protocol. We'll match the grip, switch layout, axis count and output configuration to your operator workflow.
