MO 394
Joystick Grip · Multifunctional modular grip with capacitive presence sensing
The MO 394 is a multifunctional modular joystick grip for the MO 390 base, available in right-hand, left-hand and symmetric forms. Up to five front push buttons, two thumbwheels, six indication LEDs and an integrated capacitive presence sensor support analog or CAN outputs.
- Type
- Modular grip
- Output
- Analog / CAN
- Sealing
- IP67
Quick highlights
Performance snapshot
Built as the command surface for full-size joysticks.
- Capacitive presence sensing in the handle
- Up to 5 front buttons + 2 thumbwheels
- Up to 6 indication LEDs
- Up to 2 million cycles (500k with detent)
- Right, left and symmetric handle forms
- IP67 ingress protection

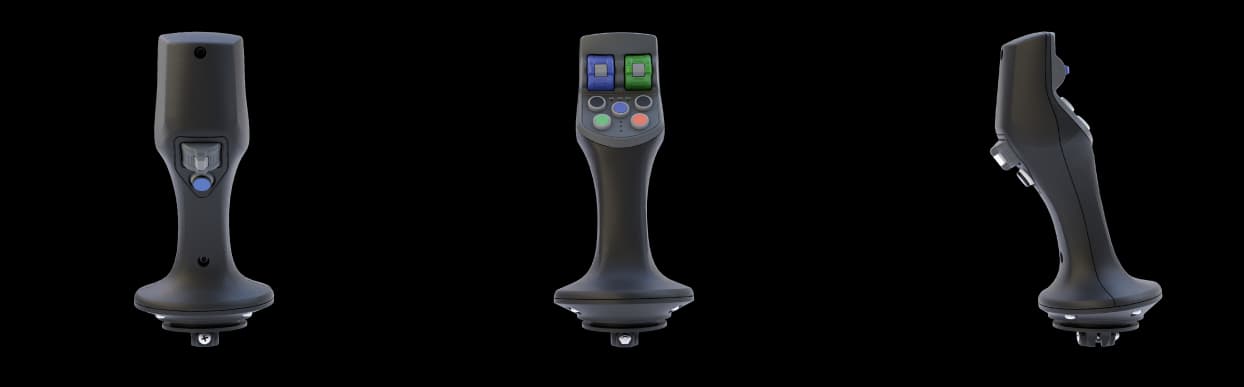

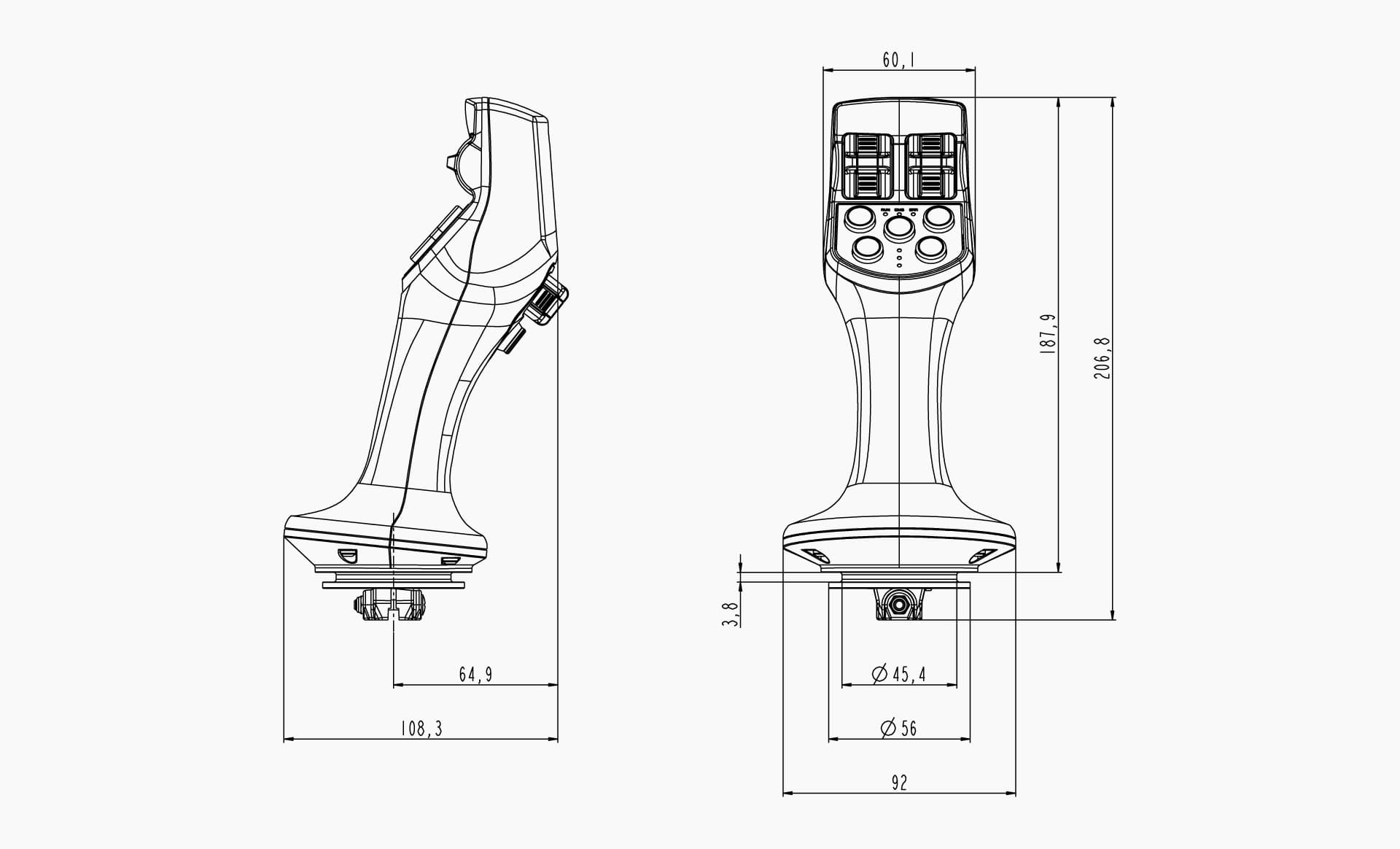

Engineering views
Technical overview
- Type
- Multifunctional modular grip
- Presence sensing
- Non-contact capacitive (handle back)
- Front controls
- Up to 5 push buttons + 2 thumbwheels
- Rear controls
- Up to 1 push button + 1 thumbwheel
- Indication
- Up to 6 front-panel LEDs
- Output
- Analog / CANopen / SAE J1939
- Connectors
- Deutsch 4-pin (CAN) / Molex 18-pin (analog)
- Ingress protection
- IP67
- Lifetime
- Up to 2 million cycles (500k with detent)
- Operating temperature
- -40°C … +85°C
Module capabilities
- Multifunctional modular design, right / left / symmetric

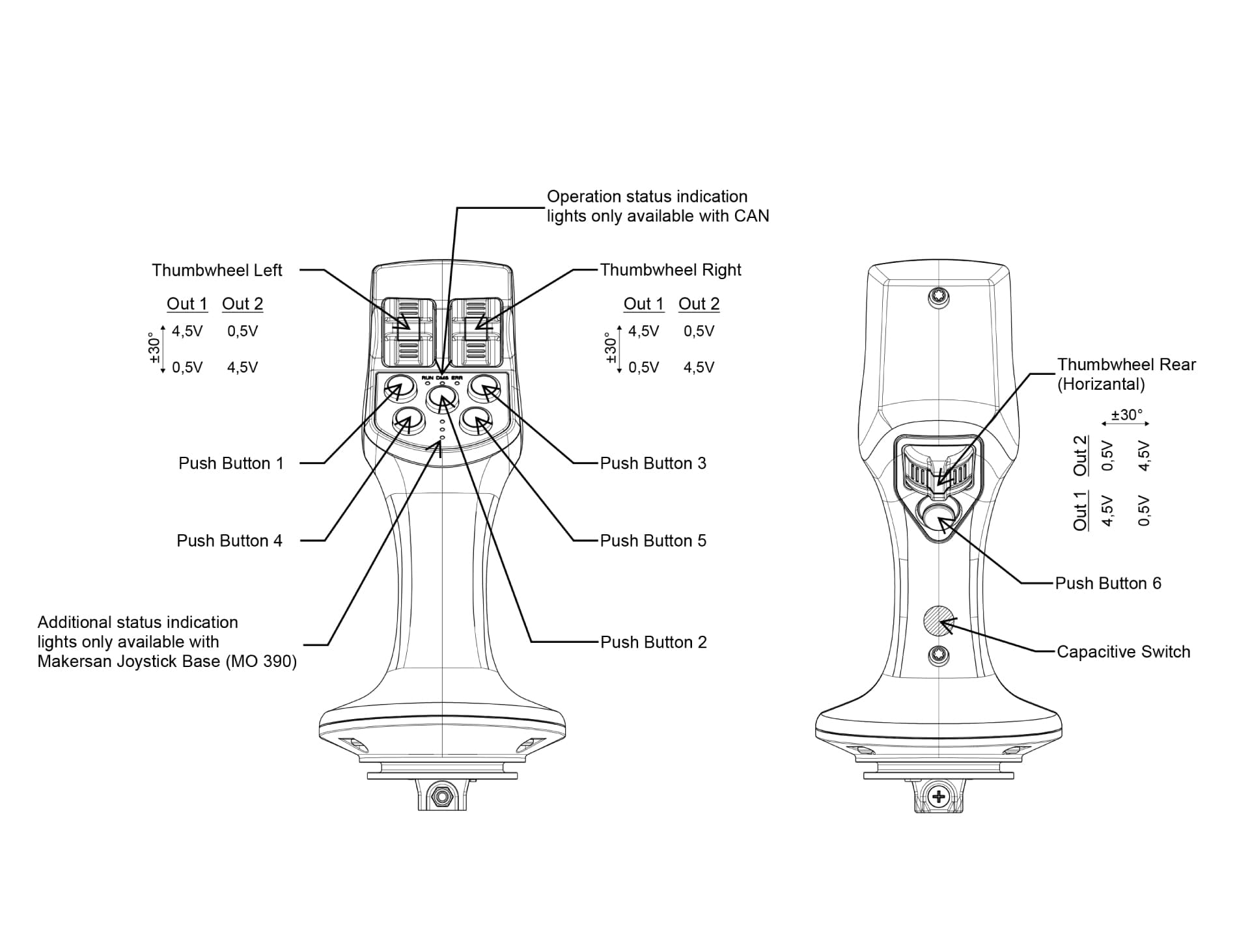

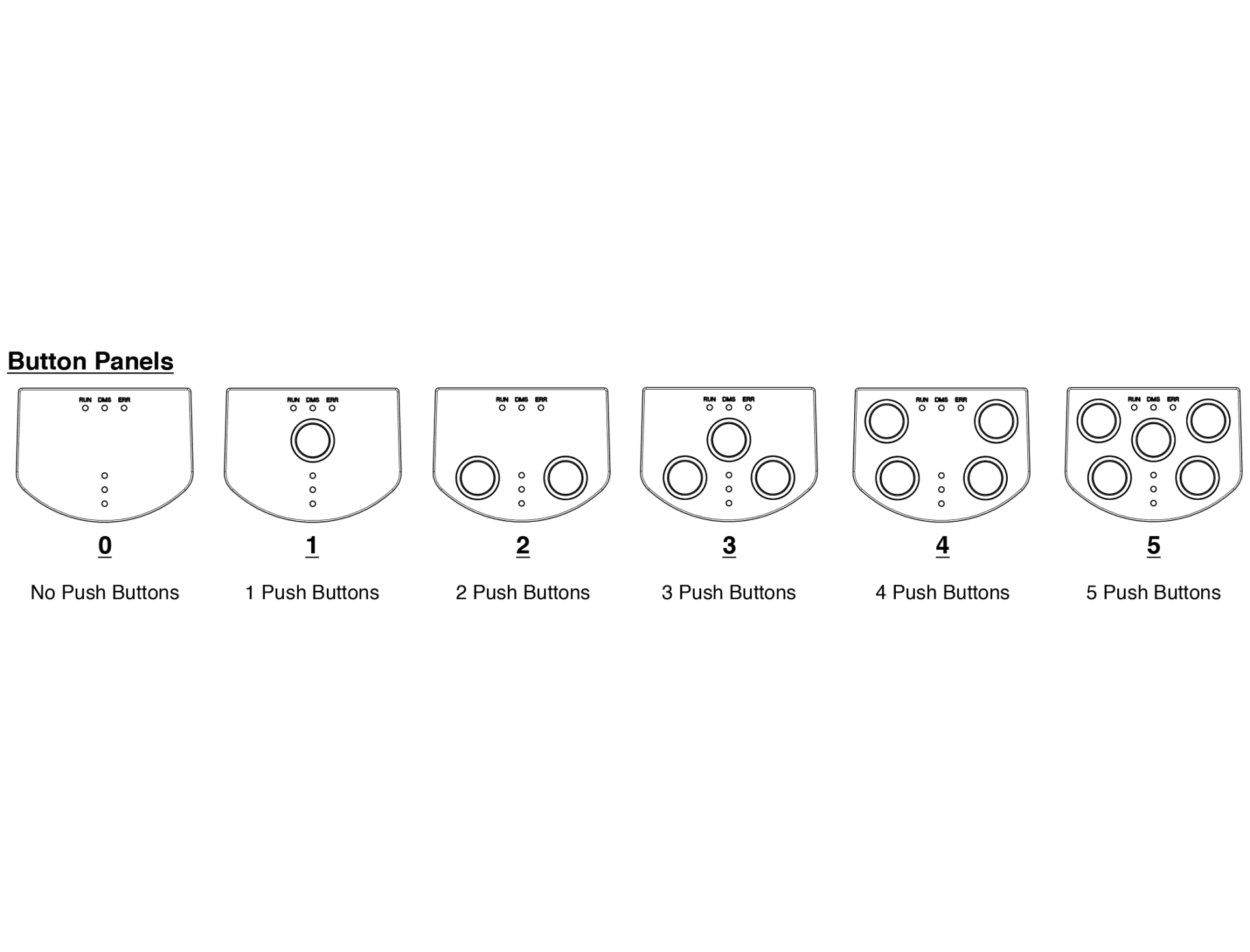

- Front: up to 5 push buttons and 2 thumbwheels (standard, rocker or toggle)
- Rear: up to 1 push button and 1 thumbwheel
- Integrated non-contact capacitive presence sensor
- Up to 6 front-panel indication LEDs
- Analog, CANopen and SAE J1939 options
- Deutsch 4-pin or Molex 18-pin connectors
Order Code
| MO 394 - | Hardware - Option | Position Description |
|---|---|---|
| Hardware | 1 | Analog · 2 - SAE J1939 · 3 - CANopen |

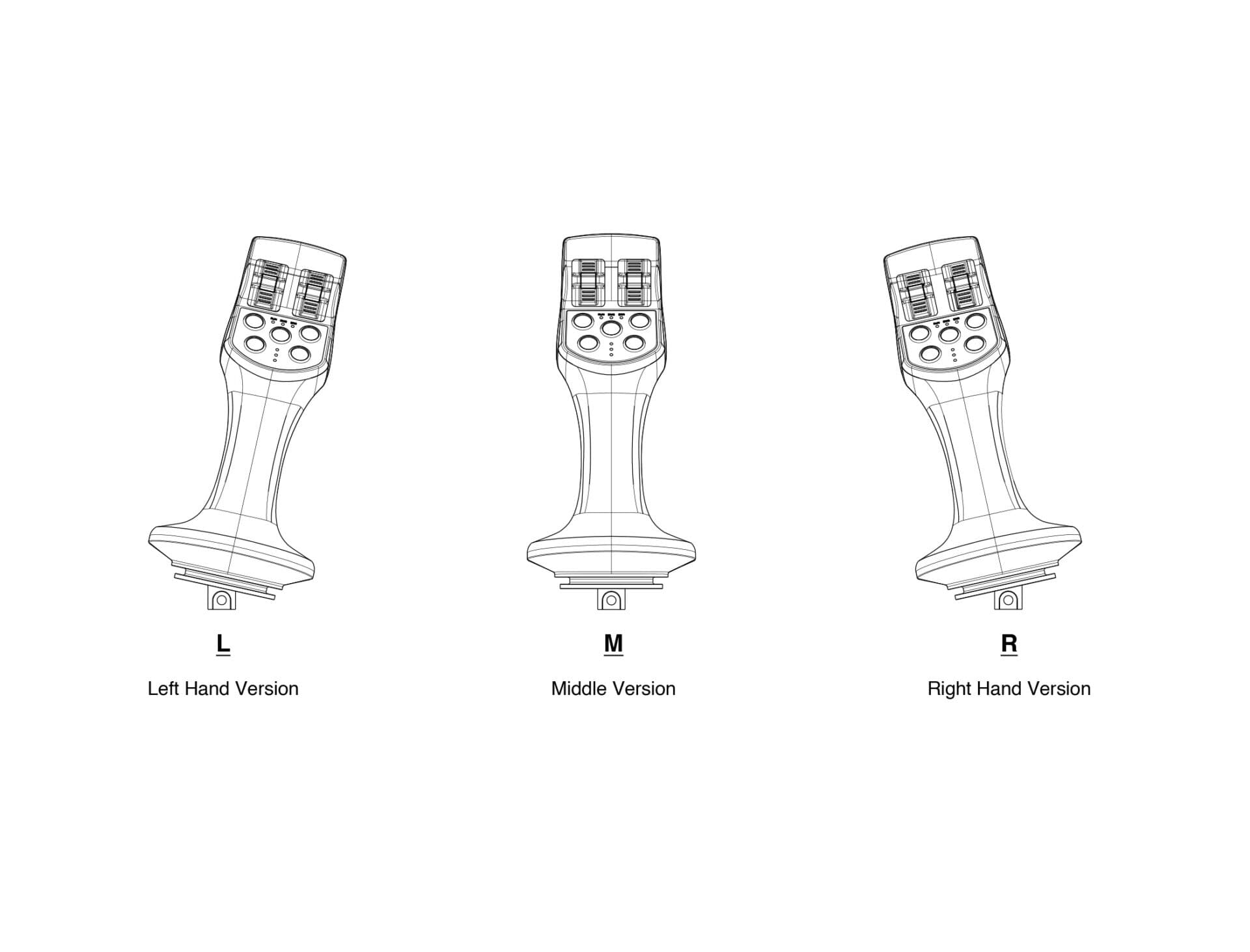

| Position | R | right · M - middle · L - left |
| Adapter | Ø12 receptacle · ext. thread M12 · int. thread M12 | |
| Controls | push buttons, thumbwheels, rockers, toggles (front & rear) |
Need a custom configuration?
Contact EngineeringTell our engineering team about your machine platform, function map and bus protocol. We'll match the grip, switch layout, axis count and output configuration to your operator workflow.
