Mini Joystick · Panel-mount mini joystick with safety double sensor per axis
The MO 395 is a compact mini joystick for armrests and control panels, with contactless hall-effect sensing and a safety double sensor output per axis. Single-axis, 2-axis and Z-axis options ship with analog, PWM, CAN or USB outputs.
- Axes
- 1 / 2 / Z-axis
- Output
- Analog / PWM / CAN / USB
- Sealing
- IP65
Quick highlights
Performance snapshot
Built for fingertip multi-axis control on armrests.
- Safety double sensor output per axis
- Up to 5 million cycles (no detent)
- Z-axis and 3-position detent grip options
- Analog / PWM / CAN / USB output range
- IP65 from top to mounting plate
- Supply 5V or 8-32V (by variant)

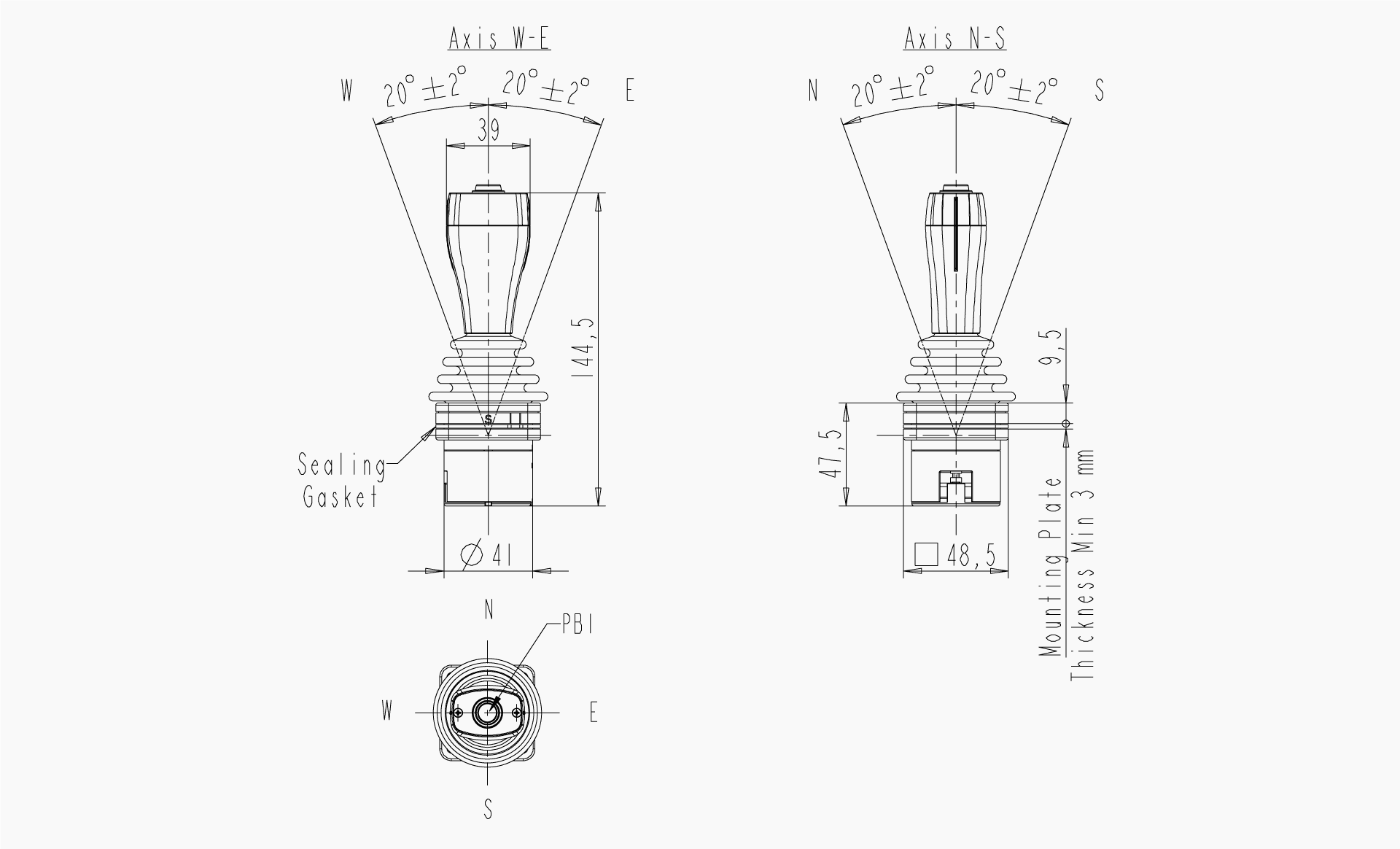

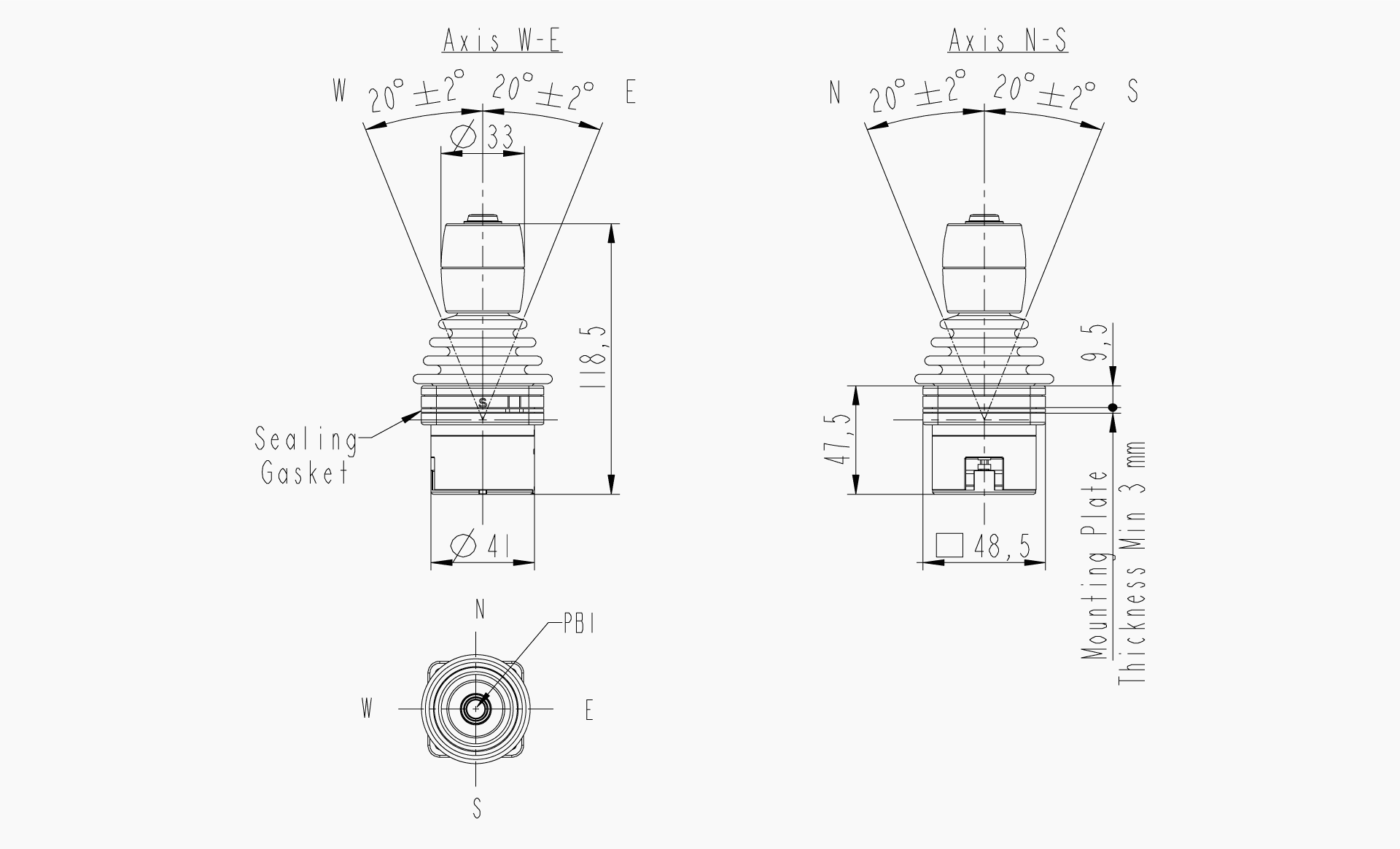

Engineering views
Technical overview
- Sensing principle
- Contactless hall-effect (double sensor per axis)
- Axes
- 1 / 2 (plus, square) / Z-axis
- Operating angle
- ±20° main · ±45° Z-axis · ±20° detent
- Supply voltage
- 5V or 8-32V (by hardware variant)
- Output
- Analog / PWM / CAN J1939 / CANopen / USB
- Redundancy
- Full redundant; Z-axis / detent options
- Connectors
- Hirose 12-pin (Deutsch DTM04-4P optional)
- Ingress protection
- IP65 (top to mounting plate)
- Lifetime
- 5M (no detent) · 2M (Z-axis) · 500k (Z detent)
- Operating temperature
- -40°C … +85°C
Module capabilities
- Contactless hall-effect with safety double sensor output per axis
- Single-axis, 2-axis (plus / square) and Z-axis options
- Grip types with up to 3 buttons
- ±20° operating angle, ±45° Z-axis, ±20° detent (3 positions)
- Analog, PWM, CAN J1939, CANopen and USB outputs
- Hirose 12-pin standard connector (Deutsch DTM optional)
- Self-centering lever
Order Code
| MO 395 - | HXX - Option | Axis Description |
|---|---|---|
| Hardware | H10-H19 | Analog · H40 - Power · H20 - CAN · H30 - USB |
| Axis | 0 | 2-axis full · 1 - 2-axis plus · 2 - single-axis |

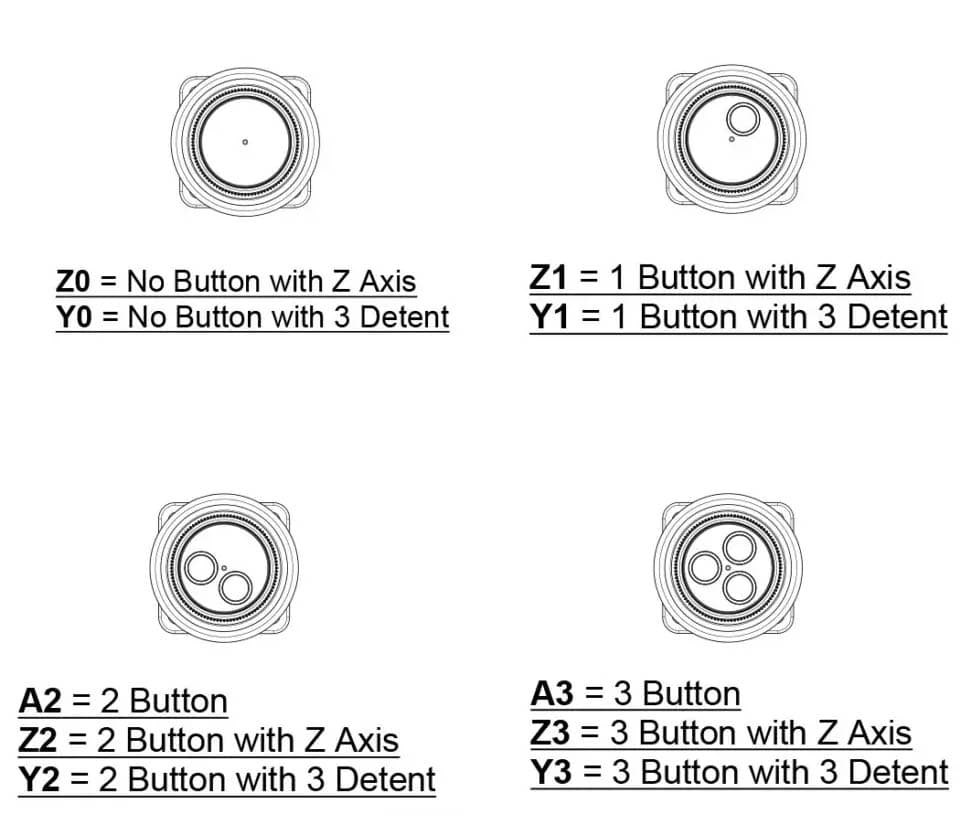

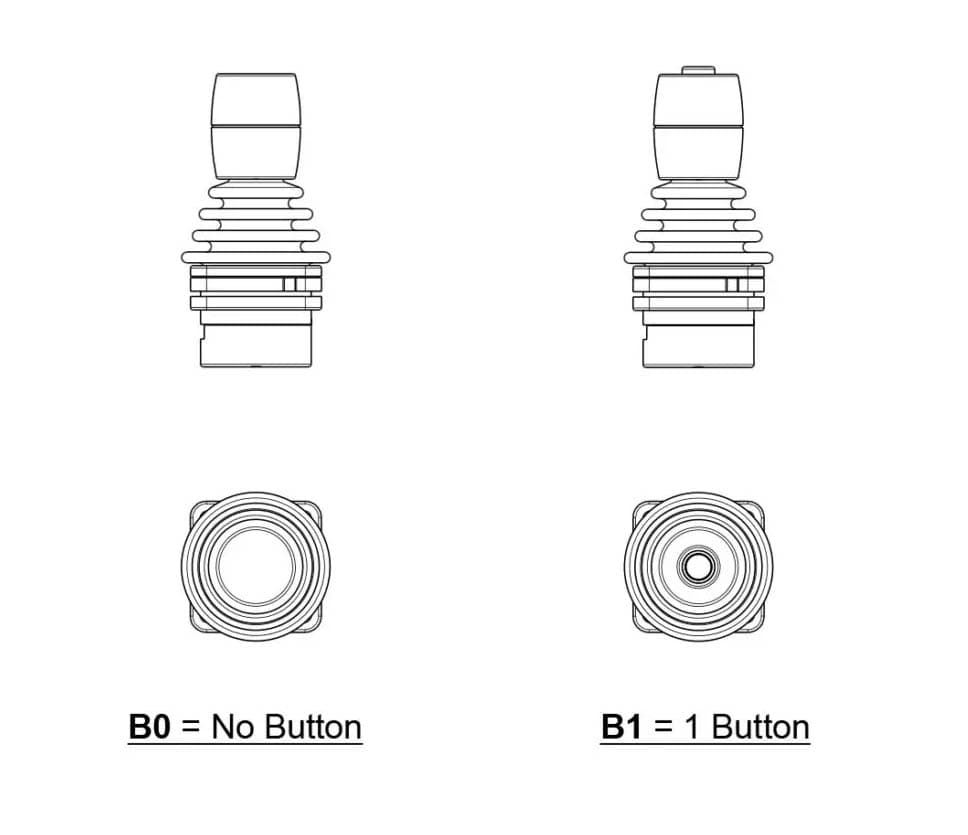

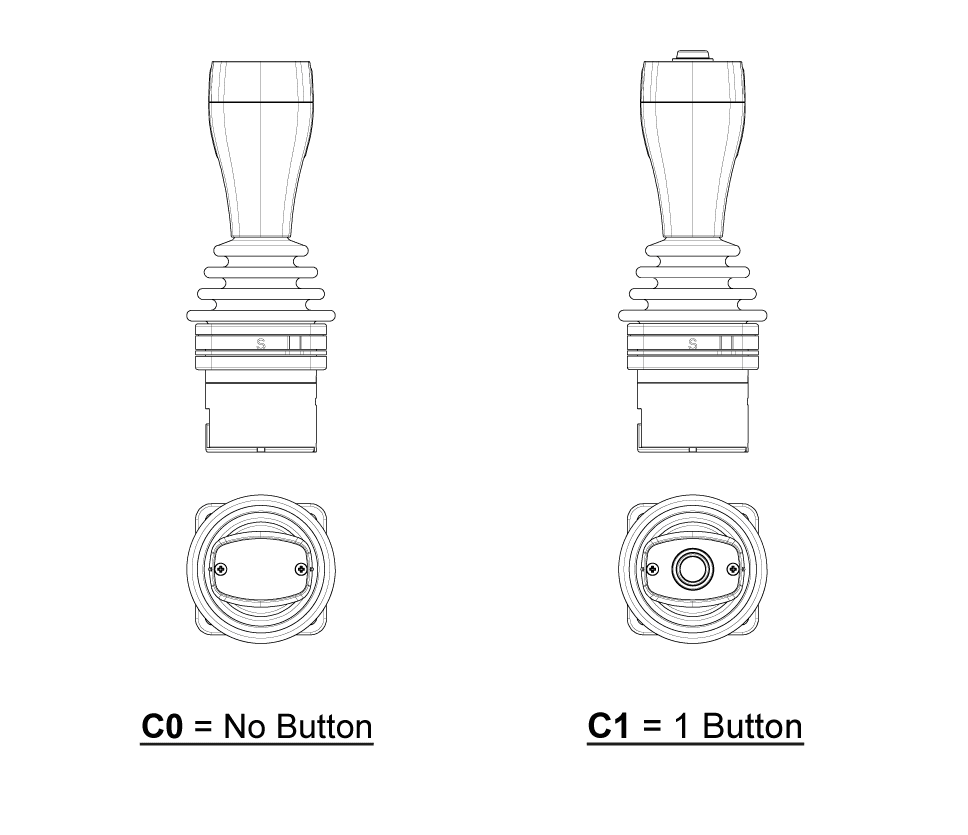

| Grip | B0-B3 / Z0-Z3 / Y0-Y3 | buttons, Z-axis or detent grips |
| Program | P001 | Standard signal program |
Example: MO 395 - H10 - 0 - 0 - B0 - P001 - 05
