MO 397
Micro Joystick · Smallest-footprint micro joystick with dual sensor per axis
The MO 397 is Makersan's smallest joystick, designed for handheld and tightly packed panels. Contactless hall-effect sensing with a dual sensor per axis delivers safe, repeatable fingertip control in single- or two-axis configurations.
- Axes
- 1 / 2-axis
- Angle
- ±25° / ±21°
- Sealing
- IP67 / IP65
Quick highlights
Performance snapshot
Built for the tightest fingertip control panels.
- Smallest Makersan joystick footprint
- Dual sensor per axis for safety
- Up to 1 million lifetime cycles
- IP67 electronics / IP65 top to mounting plate
- 5V supply
- Operating temperature -40°C … +85°C

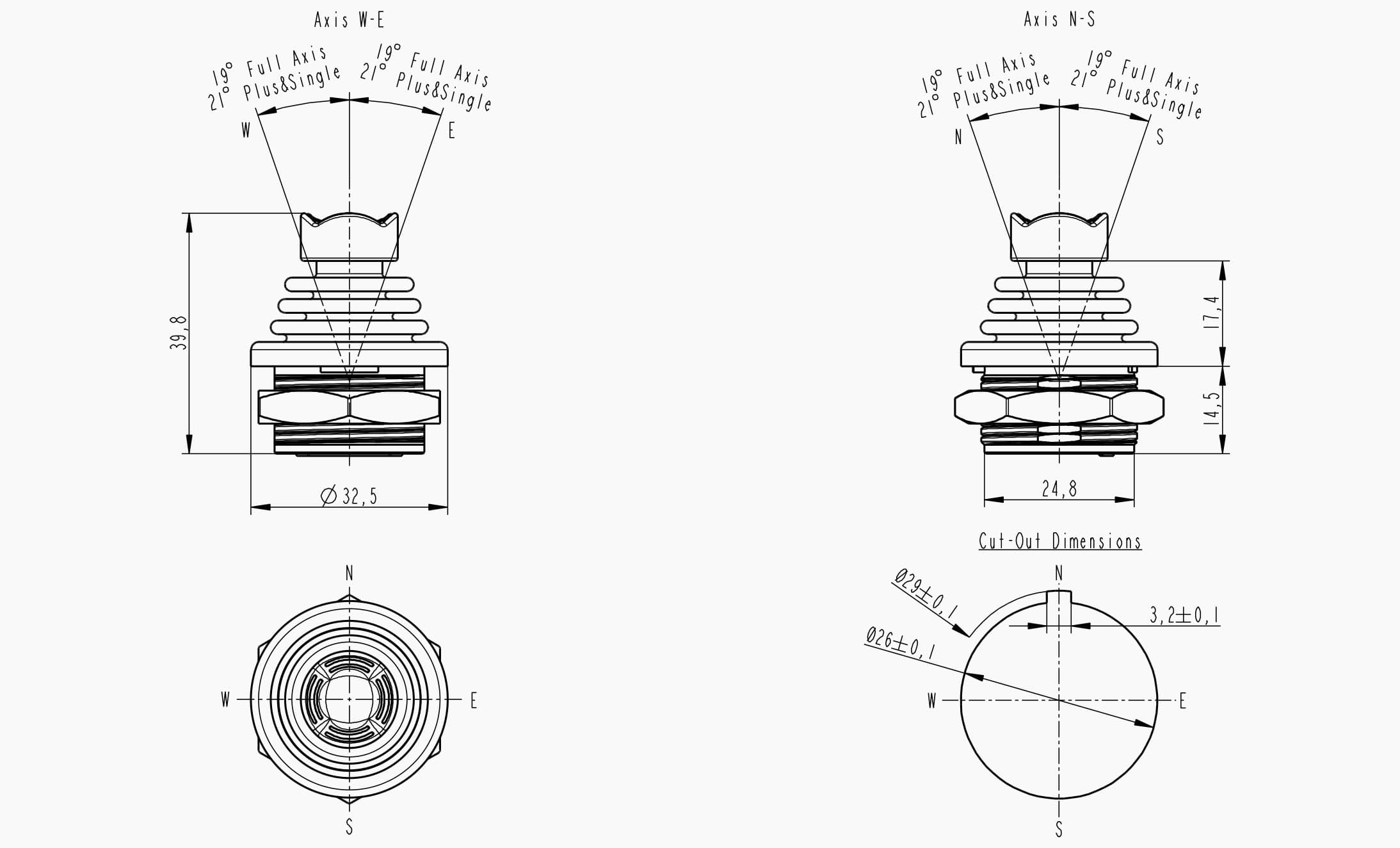

Engineering views
Technical overview
- Sensing principle
- Contactless hall-effect (dual sensor per axis)
- Axes
- 2-axis full / 2-axis plus / single-axis
- Operating angle
- ±25° (full) · ±21° (plus / single)
- Supply voltage
- 5V
- Output
- 0-5V (full redundant or redundant)
- Ingress protection
- IP67 electronics / IP65 mechanical
- Lifetime
- Up to 1 million cycles
- Connectors
- 250mm loose cable / Molex Micro-Fit / header
- Operating temperature
- -40°C … +85°C
Module capabilities
- Contactless hall-effect with dual sensor per axis for safety
- 2-axis full, 2-axis plus or single-axis options
- ±25° (2-axis full) / ±21° (plus & single) operating angle
- Self-centering lever
- 0-5V output (full redundant or redundant)
- Loose cable, Molex Micro-Fit or header connection
- Customizable output signal program
Order Code
| MO 397 - | HXX - Option | Axis Description |
|---|---|---|
| Hardware | H10 | 5V, 0-5V full redundant · H11 - 5V, 0-5V redundant |
| Axis | 0 | 2-axis full · 1 - 2-axis plus · 2 - single-axis |
| Connection | 00 | loose cable · 01 - Molex Micro-Fit · 03 - header |
| Program | P01 | Standard signal program |
Example: MO 397 - H10 - 0 - 0 - P01 - 00
