MO 405
CAN Keypad · Sealed CAN keypad with configurable key matrix and backlight
MO 405 is a sealed CAN keypad that collapses cab wiring to a single bus cable. Configurable 2×4, 4×2, 4×3 and 3×5 key matrices, customizable key icons and programmable indication lights make it a flexible in-cab command panel.
- Keys
- 2×4 … 3×5
- Bus
- CANopen / J1939
- Sealing
- IP67
Quick highlights
Performance snapshot
Built to collapse cab wiring into one CAN cable.
- Single-cable CAN connection
- Configurable key-matrix layouts
- Per-key customizable legends and backlight
- Up to 1 million cycles per key
- IP67 sealed against weather
- Robust panel-mount housing
Engineering views
Technical overview
- Key matrix
- 2×4 / 4×2 / 4×3 / 3×5
- Bus protocol
- CANopen / SAE J1939
- Lifetime
- Up to 1 million cycles per key
- Ingress protection
- IP67

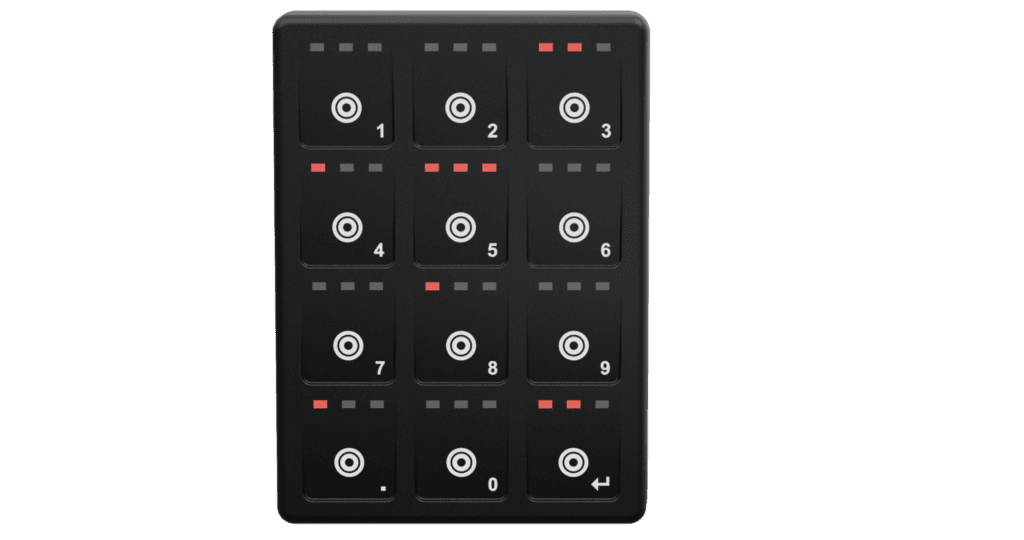

- Backlight
- Customizable icons and indication lights
- Construction
- Sealed, weather-protected
Module capabilities
- Configurable 2×4, 4×2, 4×3 and 3×5 key matrices
- Single CAN cable collapses harness count
- Customizable key icons, backlight and indication lights
- Up to 1 million cycles per key
- Sealed, weather-protected construction

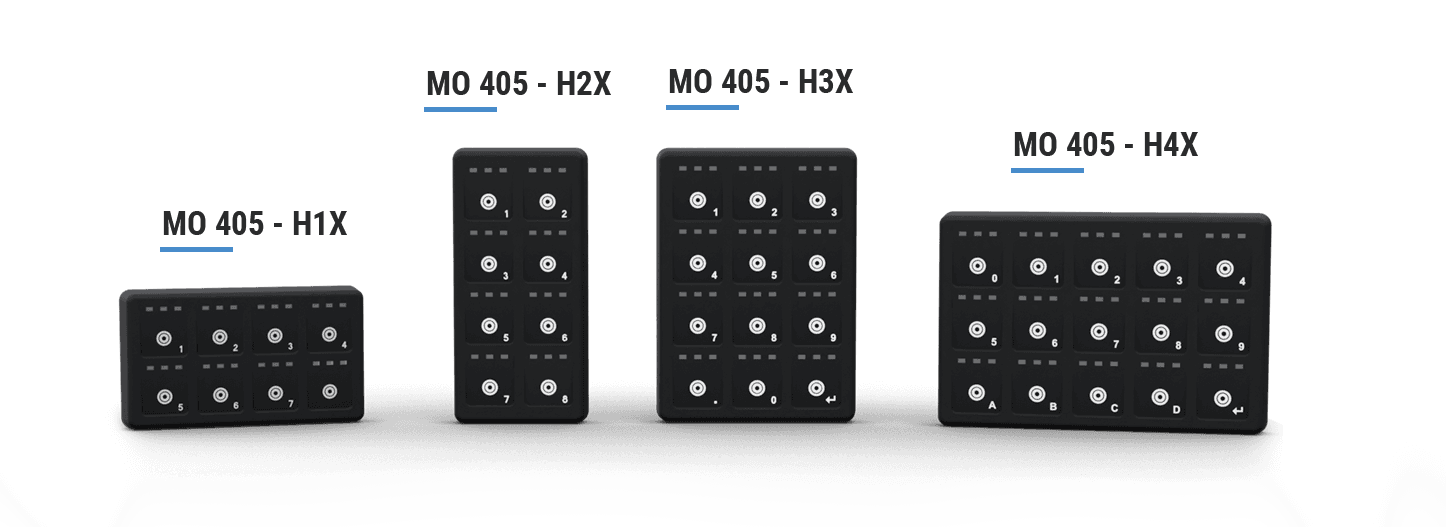

- H1X-H4X hardware layouts
Order Code
| MO 405 - | HXX - Option | Matrix Description |
|---|---|---|

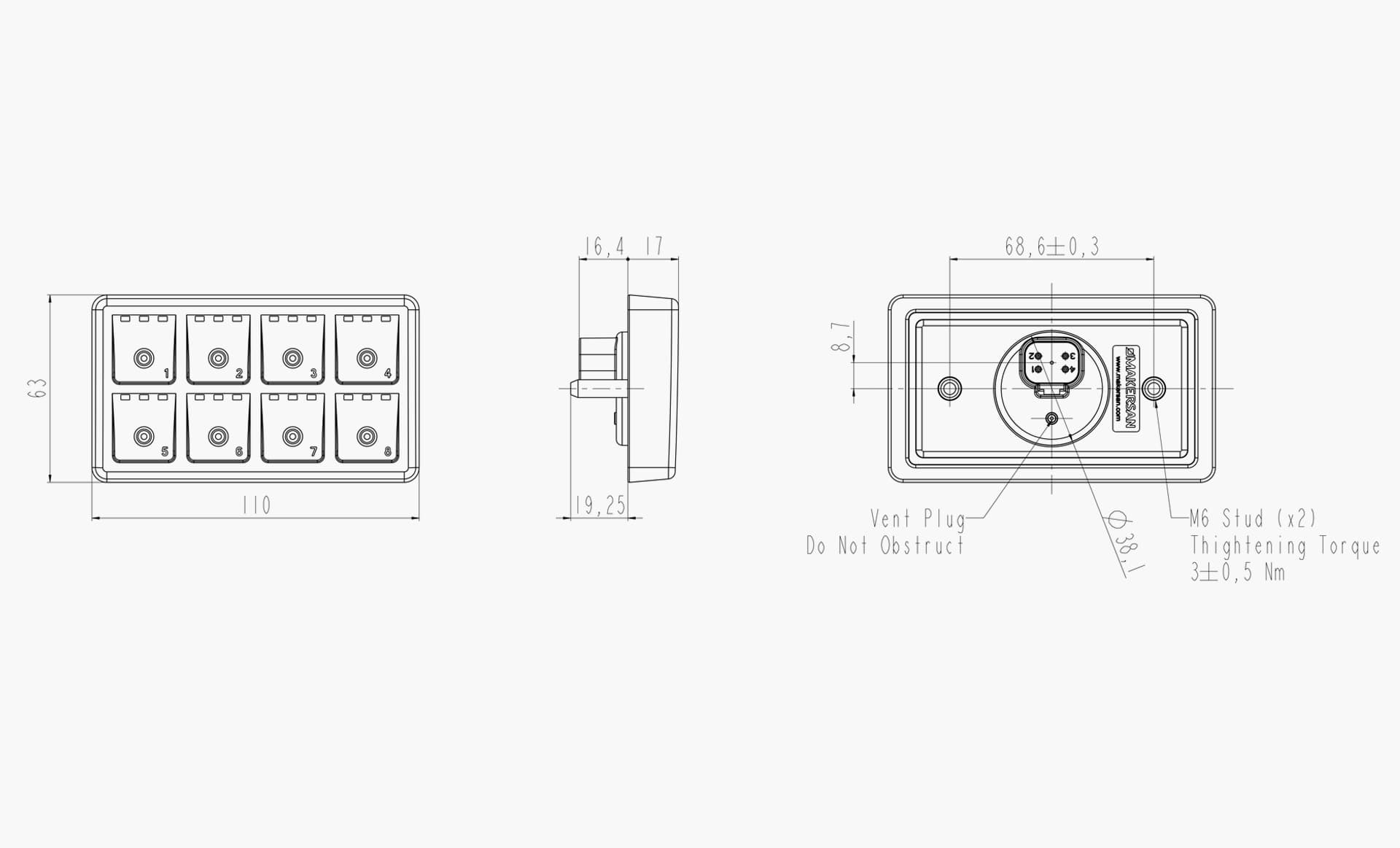

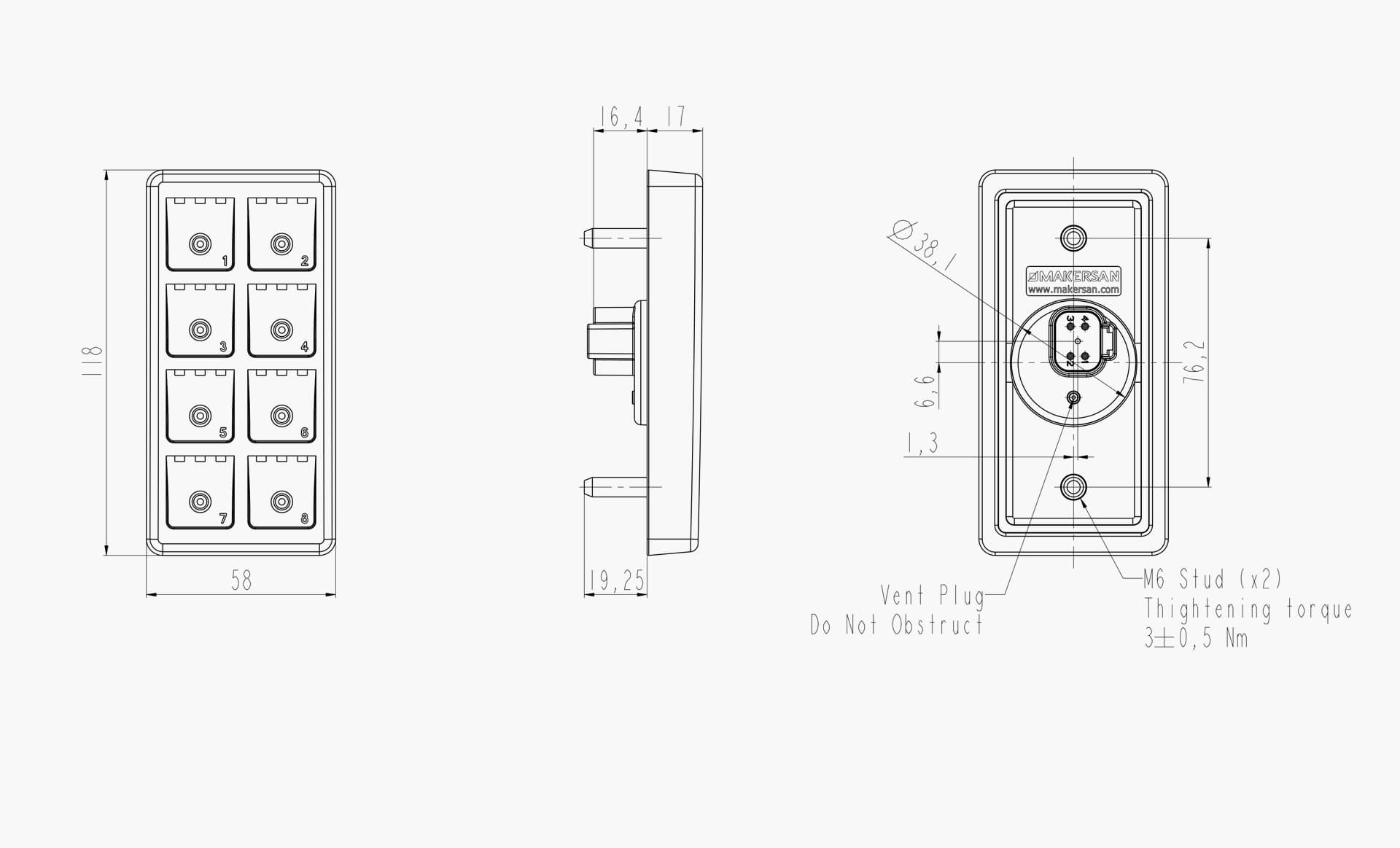

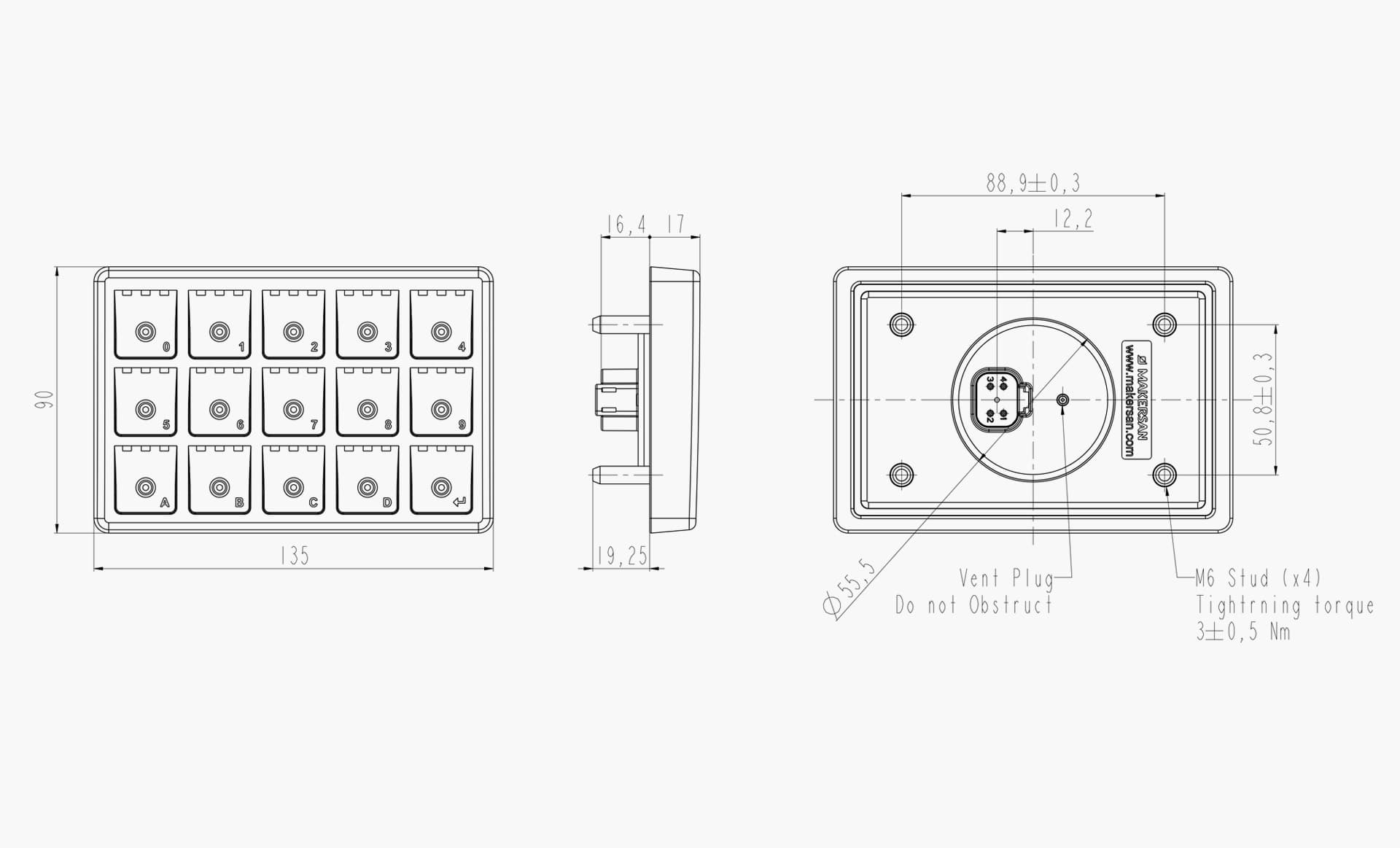

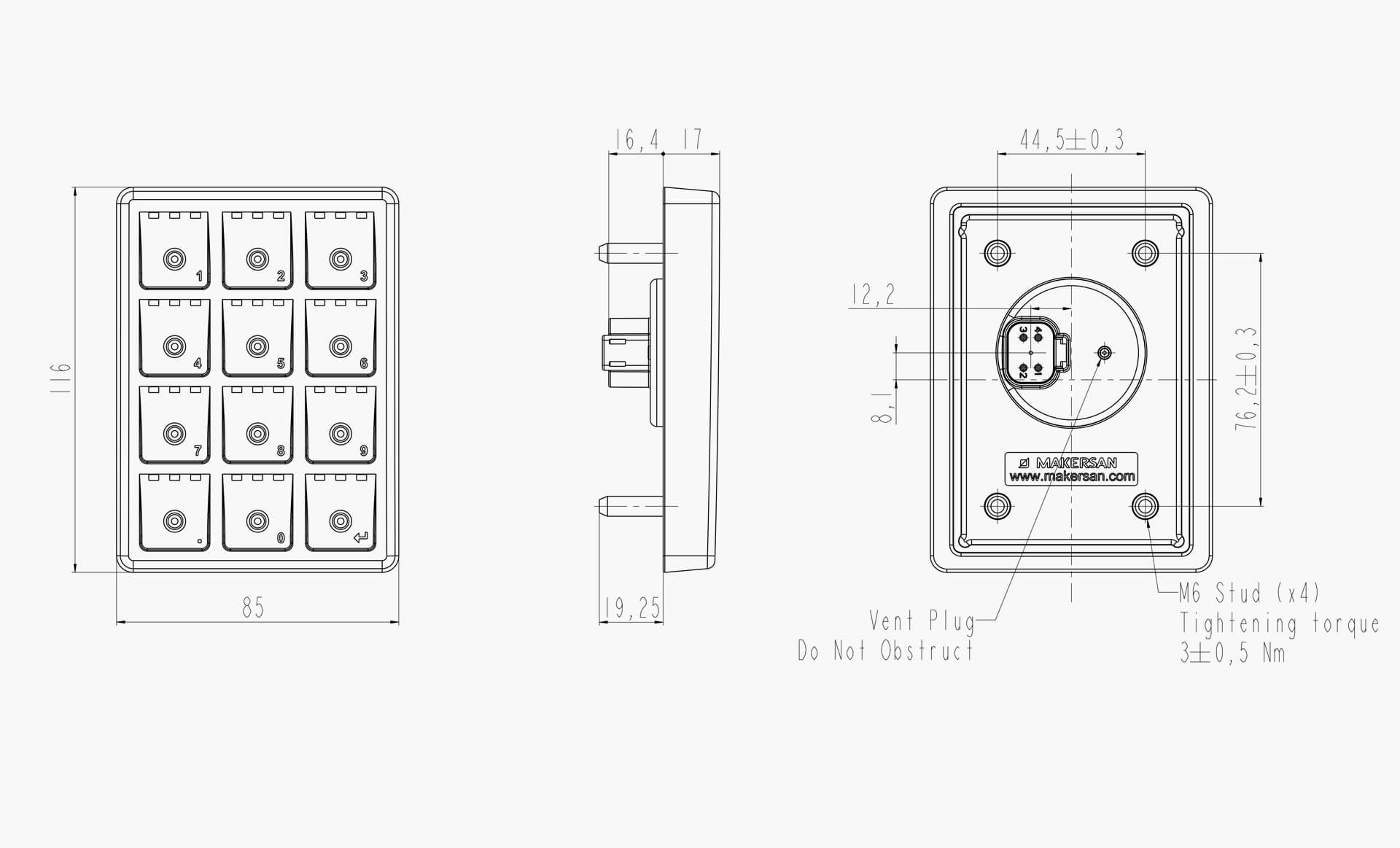

| Hardware | H1X / H2X / H3X / H4X | key-matrix layouts |
| Matrix | 2×4 / 4×2 / 4×3 / 3×5 | key combination |

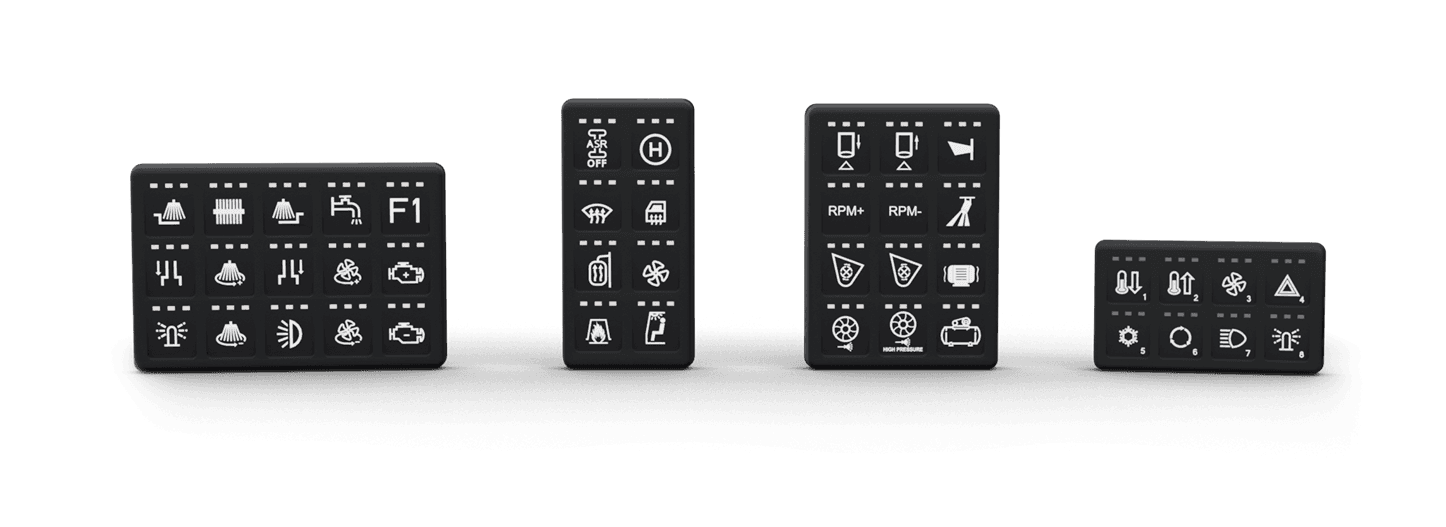

| Legend | Customizable key icons and backlight |
Need a custom configuration?
Contact EngineeringTell our engineering team about your function map, legend artwork and bus protocol. We'll match the key matrix, switch technology and CAN configuration to your panel.
